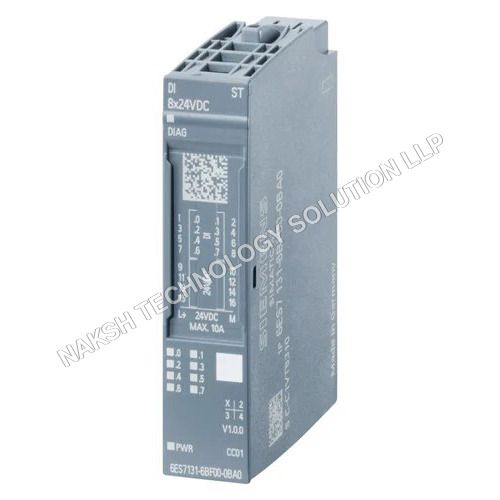

The Siemens ET200SP 8DI Expansion Module is designed for industrial automation applications, operating at 50/60 Hertz frequency. This module comes in a sleek grey color with an IP Rating of 20 and a Protection Level of IP54, ensuring durability and reliability in various industrial environments.

Datasheet Siemens 6ES7131-6BF01-0BA0

SIMATIC ET 200SP Digital Input Module, DI 824 V DC Standard (Type 3, PNP) Fits BU-Type A0 Color Code: CC01 Input delay: 0.0520 ms Diagnostics: Short-circuit, wire break, supply voltage

General Information

• Product name: DI 824 VDC ST

• Hardware functional status: FS02

• Firmware version: V0.0

• Firmware update: No

• Usable BaseUnits: BU type A0

• Color Code: CC01

• I&M data: I&M0I&M3

• Isochronous mode: No

• PROFINET R1 IM support: Yes

Engineering Compatibility

• STEP 7 TIA Portal: From V14

• STEP 7 Classic: From V5.5 SP3

• PCS 7: From V8.1 SP1

• PCS neo: From V3.1

• PROFIBUS: GSD Revision 3/5 or higher

• PROFINET: GSDML V2.3

Operating Modes

• Digital Inputs (DI): Yes

• Counter / Oversampling / MSI: No

Supply Voltage

• Rated voltage: 24 V DC

• Range: 19.228.8 V

• Reverse polarity protection: Yes

Input Current

• Max current consumption: 50 mA

• (All channels powered from encoder supply)

Encoder Supply

• Outputs: 8

• Min. output voltage: 19.2 V

• Short-circuit protection: Yes (per module)

• Max current:

  • Per channel: 700 mA

  • Per module: 700 mA

Power Loss

• Typical: 1 W (at 24 V, 8 inputs supplied)

Addressing

• Input address space: 1 byte + 1 byte QI information

Hardware Configuration

• Automatic encoding: Yes

• Mechanical coding: Yes (Type A)

BaseUnit Selection

• 1-wire / 2-wire: BU type A0

• 3-wire: BU type A0 with AUX terminals or potential distributor

• 4-wire: BU type A0 + potential distributor

Digital Input Specifications

• Number of inputs: 8

• Parameterizable: Yes

• Input type: PNP (P-reading), IEC 61131 Type 3

Input Voltage

• Rated: 24 V DC

• Signal 0: 30 to +5 V

• Signal 1: +11 to +30 V

Input Current

• Signal 1: 2.5 mA (typ.)

Input Delay (parameterizable):

• 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms
  (+ additional 30500 s depending on cable length)

Min/Max delay

• 0 1: 0.05 to 20 ms

• 1 0: 0.05 to 20 ms

Cable Length

• Shielded: 1000 m

• Unshielded: 600 m

Encoder Compatibility

• 2-wire sensors: Yes

• Max quiescent current: 1.5 mA

Diagnostics

• Diagnostics available: Yes

• Diagnostic alarm: Yes

• Read diagnostic info: Yes

• Supply voltage monitoring: Yes (parameterizable)

• Encoder supply monitoring: Yes

• Wire break: Yes (module-wise)

• Short-circuit: Yes (module-wise)

LED Indicators

• PWR LED: Green

• Channel status LED: Green

• Module diagnostics LED: Green/Red

• Channel diagnostics LED: No

Potential Separation

• Between channels: No

• Channels backplane bus: Yes

• Channels electronics supply: No

• Isolation test voltage: 707 V DC

Environmental Data

Operating Temperature

• Horizontal: 30 to +60C

• Vertical: 30 to +50C

Altitude

• Up to 5000 m (derating above 2000 m)

Mechanical Data

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

• Weight: ~28 g
