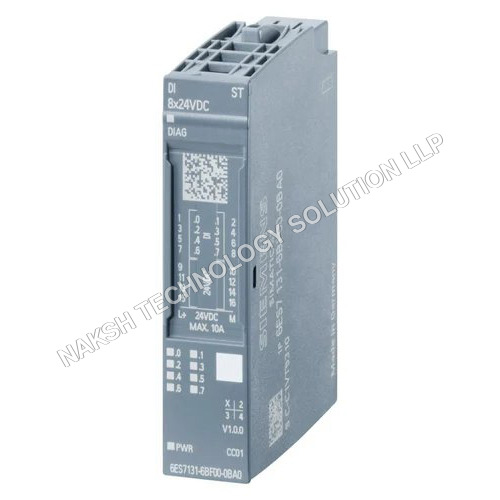

SIEMENS ET200SP 8DI HF MODULE

The Siemens ET200SP 8DI HF Module (Model: 6ES7136-6BA00-0CA0) is designed for seamless integration into industrial automation processes. It features a compact design with dimensions of 15 x 73 x 58 mm and a lightweight build of just 49 grams, ensuring easy rack mounting installations. Operating within a temperature range of -20C to +60C and humidity levels of up to 95%, this module delivers reliable performance even in challenging environments. With a rated voltage of 24V DC and a frequency of 50 Hz, the module is efficient and energy-conscious, consuming just 70 mW of power. Safety is paramount, featuring an IP20 protection level and 707V DC isolation. The matte grey surface finish provides durability and aesthetic appeal for modern industrial setups. Offering input current of 75 mA and power loss rated at just 4W, this module is engineered for high-functionality and reliability. Backed by a 1-year warranty, this HF module is an optimal choice for advanced automation requirements.

General Information

• Product Type: F-DI 8x24VDC HF

• Base Units Supported: BU type A0

• I&M Data: Yes (I&M0 I&M3)

Engineering

• TIA Portal: From V12

• STEP 7: From V5.5 SP3

• PROFINET GSD Version: V2.31

Operating Mode

• Digital Input (DI): Yes

• Configuration in RUN (CiR): Supported

• Reparameterization in RUN: No

Supply Voltage

• Rated Voltage: 24 V DC

• Permissible Range: 20.4 28.8 V DC

• Reverse Polarity Protection: Yes

• NEC Class 2 Supply Required: No

Current Consumption

• Module Consumption (no load): 75 mA

• From Backplane Bus (max.): 21 mA

Encoder Supply

• Number of Outputs: 8

• Short-Circuit Protection: Yes (0.71.8 A threshold)

• Max Output Current: 0.3 A (up to 60C)

• Total Encoder Supply Current: Max. 800 mA

Power

• Backplane Bus Power: 70 mW

• Power Loss: 4 W (typ.)

Address Area

• Inputs: 6 bytes

• Outputs: 4 bytes

Hardware Features

• Automatic Encoding: Yes

• Electronic Coding (Type F): Yes

Digital Inputs

• Number of Inputs: 8

• Parameterizable: Yes

• Input Type: P-reading (source/sink)

• Standard per IEC 61131 Type 1: Yes

Input Voltage

• Rated: 24 V DC

• Signal 0: 30 +5 V

• Signal 1: +15 +30 V

Input Current

• Signal 1 (typ.): 3.7 mA

Input Delay (parameterizable)

• 0 1: 0.4 20 ms

• 1 0: 0.4 20 ms

Cable Length

• Shielded: 1000 m

• Unshielded: 500 m

Diagnostics & Status

• Diagnostics Available: Yes

• Diagnostic Alarm: Yes

• Hardware Interrupt: No

LED Indicators

• RUN: Green

• ERROR: Red

• PWR: Green

• Channel Status: Green

• Channel Diagnostics: Red

• Module Diagnostics (DIAG): Green/Red

Isolation & Potential Separation

• Between Channels: No

• Channels Backplane Bus: Yes

• Channels Electronics Supply: No

• Test Voltage: 707 V DC

Safety

• Suitable for Safety Functions: Yes

• Performance Level (ISO 13849-1): PL e

• SIL (IEC 61508): SIL 3

Failure Probabilities

• PFDavg (Low Demand): < 2.00E-05

• PFH (High Demand): < 1.00E-09 per hour

Ambient Conditions

• Operating Temp. (Horizontal): 0 to 60C

• Operating Temp. (Vertical): 0 to 50C

• Max. Installation Altitude: 4000 m

Mechanical Data

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

• Weight: Approx. 49 g

Technical Details
