Siemens ET200SP 8di High Speed Module

About Siemens ET200SP 8di High Speed Module

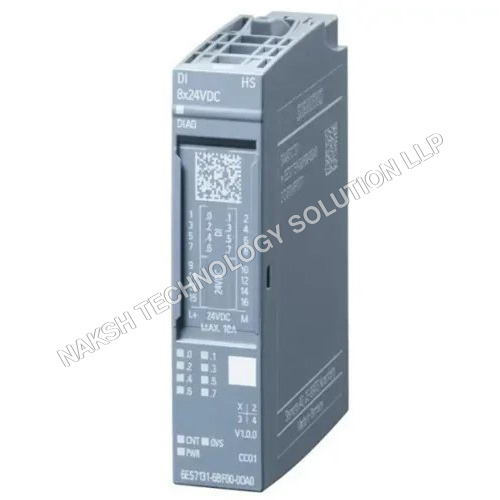

• Enhance the performance of your industrial automation systems with theSiemens ET200SP 8DI High-Speed Module, a robust digital input module designed for fast and accurate signal processing in high-demand environments. This module offers eight high-speed digital input channels, making it ideal for applications that require quick response times and precise data handling, such as motion control, packaging, and high-frequency sensor integration.
• TheSiemens ET200SP 8DI High-Speed Moduleis engineered to process high-frequency digital signals with exceptional accuracy, ensuring reliable input detection from various industrial devices such as sensors, switches, and encoders. Its compact, rugged design ensures optimal performance even in harsh industrial environments, where reliability and speed are critical.
• AtNaksh Technology Solution LLP, we provide expert integration and support for theSiemens ET200SP 8DI High-Speed Module, ensuring smooth implementation and optimized system performance. Upgrade your industrial operations with theSiemens ET200SP 8DI High-Speed Module, engineered for high-speed data processing and dependable performance in complex automation systems

General Information

• Product Type: DI 8x24 V DC HS

• HW Functional Status: FS04

• Firmware Version: V1.0.2 (FW update possible)

• Module Functions: I&M0 to I&M3, Isochronous mode 125 s, suitable for PROFINET R1 IMs

Engineering

• STEP 7 TIA Portal: From V13 SP1

• STEP 7: From V5.5 SP3

• PCS 7: From V10.0

• PCS neo: From V3.1.1

• PROFIBUS GSD: Revision 3 & 5+

• PROFINET GSDML: V2.3

Operating Mode

• DI: Yes

• Counter: Yes (max. 4 counters, up/down, 32-bit, 10 kHz max)

• Oversampling: Yes (max. 8 channels, 32 values per cycle, resolution 7.8125 s)

• MSI: No

Supply Voltage

• Rated Value: 24 V DC

• Permissible Range: 19.2 28.8 V

• Reverse Polarity Protection: Yes

• Current Consumption: Max. 70 mA (without sensor supply)

Encoder Supply

• Voltage: 24 V

• Short-Circuit Protection: Yes, electronic per module

• Output Current Max: 700 mA

Power Loss

• Typical: 1.5 W

Address Area

• Inputs:

  • DI mode: 1 + 1 byte QI info

  • Oversampling: 32 bytes

  • Counter mode: 25 bytes

• Outputs: 20 bytes (in count mode)

• Total Address Space: Max. 45 bytes

Hardware Configuration

• Automatic Encoding: Yes

• Mechanical Coding Element: Type A

• BaseUnit Connection Variants: 1- to 4-wire connections with AUX terminals or potential distributor module

Digital Inputs

• Number of Inputs: 8

• Type: Source/sink (P-reading)

• Pulse Extension: Yes (50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s)

• Digital Input Functions: Gate start/stop, freely usable DI, counters, oversampling

• Input Voltage: 24 V DC (signal 0: -30 to +5 V, signal 1: +11 to +30 V)

• Input Current (signal 1): Typ. 6 mA

• Input Delay: Parameterizable 0 20 ms depending on function

Cable Length

• Shielded / Unshielded: Max. 50 m

Connectable Encoders

• 2-wire sensors: Yes

• Max Quiescent Current: 1.5 mA

Isochronous Mode

• Bus Cycle Time (TDP): Min. 125 s

• Max Jitter: 5 s

Diagnostics / Status

• Functions: Monitoring supply voltage, encoder power supply, short-circuit

• Alarms: Diagnostic & Hardware interrupt

• LED Indicators:

  • PWR: Green

  • Channel Status: Green

  • Module Diagnostics: Green/Red DIAG

Potential Separation / Isolation

• Between Channels: No

• Channels & Backplane Bus: Yes

• Channels & Power Supply: No

• Isolation Test: 707 V DC

Ambient Conditions

• Horizontal Installation: -30 C to 60 C (<0 C from FS04)

• Vertical Installation: -30 C to 50 C (<0 C from FS04)

• Max Altitude: 5,000 m (restrictions above 2,000 m)

Dimensions & Weight

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

• Weight: Approx. 28 g
