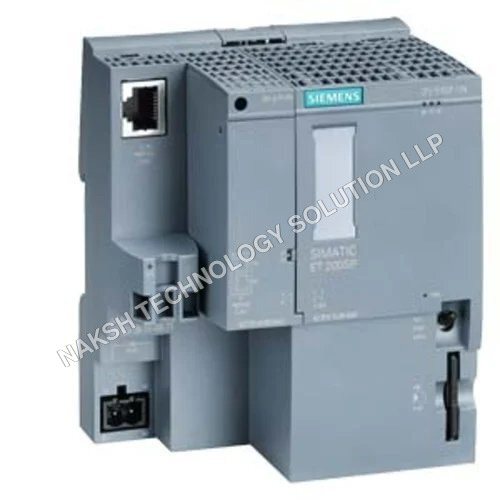

Simatic ET 200SP DP 1510SP-1 PN CPU

About Simatic ET 200SP DP 1510SP-1 PN CPU

The Siemens SIMATIC ET 200SP CPU 1510SP-1 PN (Part Number: 6ES7510-1DJ00-0AB0) is a central processing unit designed for high-performance control solutions within the ET 200SP distributed I/O system.

Key Features:

• Memory Capacity: 100 KB for program data and 750 KB for user data, accommodating complex control tasks.
• Communication Interface: Integrated PROFINET IRT with a 3-port switch, enabling efficient data exchange and network integration.
• Performance: Achieves a bit performance of 72 ns, ensuring rapid processing of control operations.
• Compatibility: Requires a SIMATIC Memory Card for data storage and a BusAdapter for connecting additional modules.

Applications:

This CPU is ideal for applications requiring robust and scalable control solutions, including:

• Manufacturing automation
• Process control systems
• Building automation

General Information

• Product Type: CPU 1510SP-1 PN

• HW Status: FS04

• Firmware: V4.0 (Update possible)

• I&M Data: I&M0 to I&M3

• Hot Swapping: Yes (Multi-hot swapping)

• Isochronous Mode: Yes (PROFINET, min OB 6x = 500 s)

• SysLog: Yes

Engineering

• TIA Portal Support:

  • V20 (FW V4.0)

  • V18 (FW V3.0)

  • Older versions: configure as 6ES7510-1DJ01-0AB0

• Configuration Control via Dataset: Yes

• Mode Selector Switch: 1

Power Supply

• Rated Voltage: 24 V DC

• Range: 19.228.8 V

• Reverse Polarity Protection: Yes

• Mains Failure Buffer: 10 ms

Input Current

• Rated Current: 0.48 A

• Max Current: 0.7 A

• Inrush Current: 1.34 A

• It: 0.3 As

Power

• Backplane Bus Infeed: 8.05 W

• Power Loss: 3.5 W (typ.)

Memory

• SIMATIC Memory Card Slots: 1 (Required)

• Work Memory:

  • Program: 200 KB

  • Data: 1 MB

• Load Memory: Up to 32 GB (Memory Card)

• Maintenance-Free Backup: Yes

CPU Processing Time

• Bit: 6 ns

• Word: 7 ns

• Fixed Point: 9 ns

• Floating Point: 37 ns

Program Blocks

• Total Elements: 4000

• DB Range: 160999

  • Max Size: 1 MB (64 KB with absolute addressing)

• FB / FC:

  • Range: 065535

  • Max Size: 200 KB

• OB:

  • Max Size: 200 KB

  • Free Cycle OBs: 100

  • Time Alarm OBs: 20

  • Delay Alarm OBs: 20

  • Cyclic Interrupt OBs: 20

  • Process Alarm OBs: 50

  • DPV1 Alarm OBs: 3

  • Isochronous Mode OB: 1

  • Startup OBs: 100

  • Diagnostic Alarm OB: 1

• Nesting Depth per Priority: 24

Timers, Counters & Retentivity

• S7 Counters: 2048

• S7 Timers: 2048

• IEC Timers/Counters: Limited by memory

• Retentive Memory: Up to 256 KB

• Flags: 16 KB

• Clock Memory: 8 bits

Address Area

• Max IO Modules: 2048

• Input Process Image: 32 KB

• Output Process Image: 32 KB

• Subprocess Images: 32

• Address per Module: 288 bytes

• Station Address Space: 2560 bytes

Hardware Configuration

• Distributed IO Systems: 32

• DP Masters via CM: 1

• IO Controllers:

  • Integrated: 1

• Modules per Rack: 82

• Max ET 200SP Modules: 64

• Max ET 200AL Modules: 16

Clock

• Backup Time: 6 weeks

• Max Deviation: 10 s/day (typ 2 s)

Interfaces

PROFINET (3-port switch)

• Ports: 3 (1 integrated + 2 via BusAdapter)

• Supported BusAdapters: RJ45, M12, LC, FC, SCRJ, etc.

• Protocols: IPv4, PROFINET IO Controller/Device, Web Server, SysLog, Open IE, etc.

• IRT Support: Yes

• Media Redundancy: Yes (MRP / MRPD)

PROFIBUS

• Via CM DP Module

• Max Devices: 125

Communication Capabilities

• Total Connections: 128

• Reserved for ES/HMI/Web: 10

• Per CM/CP: 32

• S7 Routing: Yes

• OPC UA:

  • Client & Server Supported

  • Requires Runtime License (Small)

  • Encryption: Multiple policies

  • Sessions: Client 4, Server 32

  • Max Server Variables: 50,000

• Modbus TCP: Yes

• DHCP, DNS, SNMP, LLDP: Yes

• Web Server: HTTP/HTTPS with user pages

Diagnostics & Tools

• Diagnostic Buffer: 1000 entries (500 retentive)

• Traces: 4 (512 KB each)

• Breakpoints: 8

• Status/Control Variables: 200 max per job

• Forcing: Yes (200 variables)

Motion Control

• Supported: Yes

• MC Resources: 1120

• Axes (typical):

  • 4 ms cycle: 11 axes

  • 8 ms cycle: 14 axes

Security

• PROFINET Security Class: 1

• Secure Boot: Yes

• TLS 1.3 Encryption: Yes

• Firmware Signed: Yes

• User Management:

  • Users: 100

  • Groups: 100

  • Roles: 50

Environmental Conditions

• Operating Temperature:

  • Horizontal: -30C to +60C

  • Vertical: -30C to +50C

• Max Altitude: 5000 m

Dimensions & Weight

• Width: 100 mm

• Height: 117 mm

• Depth: 75 mm

• Weight: 265 g
