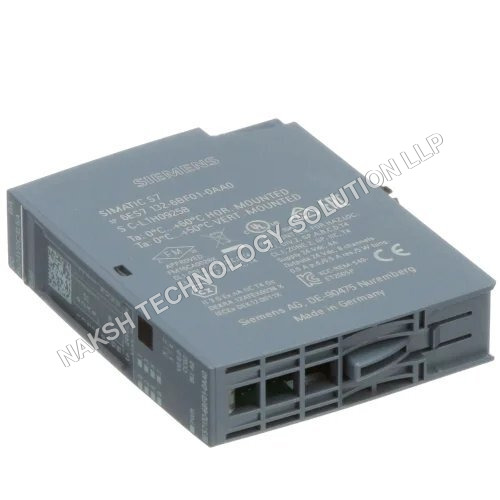

SIEMENS ET200SP 8DO MODULE

The Siemens ET200SP 8DO Module (Model: 6ES7132-6BF01-0BA0) is a versatile and robust solution for industrial automation applications. Engineered for rack-mounted installations, it features a compact design with dimensions of 15 x 73 x 58 mm and a matte grey finish, ensuring easy integration into existing systems. With a weight of only 30 grams, its lightweight construction helps reduce overall system load. Built to operate in extreme temperature ranges (-30C to +60C) and withstand 95% humidity, this module is ideal for demanding environments. It delivers seamless performance at a rated voltage of 24V DC and consumes minimal power with an input current of 20 mA, ensuring energy efficiency. The 8DO module is equipped with IP20 protection and has isolation capability up to 707 V DC for enhanced safety. With a frequency range of 50-60 Hz, it is suitable for single-phase operations. Backed by a 1-year warranty, this reliable module ensures long-term value and optimal efficiency for automation systems.

General Information

• Product Type: DQ 8x24VDC/0.5A ST

• Hardware Status: From FS21

• Firmware Version: V0.0 (No update possible)

• BaseUnit Compatible: BU type A0

• Module Color Code: CC02

• I&M Data: Yes (I&M0 to I&M3)

• Isochronous Mode: No

Engineering / Software

• STEP 7 TIA Portal: Configurable from V14 (HSP0222), integrated from V15

• STEP 7: Configurable from V5.5 SP3 (HSP0230 V7.0), integrated from V5.6 SP1

• PCS 7: Configurable from V8.1 SP1

• PROFIBUS GSD: Revision 3 and 5+

• PROFINET GSDML: V2.3

Operating Mode

• DQ Standard Output: Yes

• Energy-saving Function: No

• PWM / Oversampling / MSO: No

Supply Voltage

• Rated Value (DC): 24 V

• Permissible Range: 19.228.8 V

• Reverse Polarity Protection: Yes

• Current Consumption: Max 20 mA (without load)

• Power Loss (typ.): 1 W

Digital Outputs

• Type: Source output (PNP, current-sourcing)

• Number of Outputs: 8

• Current per Channel: 0.5 A max

• Total Current per Module: 4 A max

• Switching Capacity:

  • Resistive load: 0.5 A

  • Inductive load: 0.5 A

  • Lamp load: 5 W max

• Output Delay:

  • 0 1: 50 s

  • 1 0: 100 s

• Short-circuit Protection: Yes, electronic (1 A typical)

• Open-circuit Detection: Yes

• Redundant Control: Yes

• Switching Frequency:

  • Resistive: 100 Hz

  • Inductive: 0.1 Hz

  • Lamp load: 10 Hz

Address / Configuration

• Address Space: 1 byte + 1 byte for QI info

• Automatic Encoding: Yes

• Mechanical Coding Element: Type A

BaseUnit Connection

• 14 Wire Connection: BU type A0, with AUX terminals or potential distributor

Diagnostics / Status

• Diagnostics Function: Yes

• Substitute Values Connectable: Yes

• Alarms / Diagnoses:

  • Supply voltage monitoring: Yes

  • Wire-break detection: Module-wise

  • Short-circuit to M / L+: Module-wise

  • Group error: Yes

• LED Indications:

  • PWR LED (green) monitors supply voltage, channel, and module status

Potential Separation / Isolation

• Between Channels: No

• Channels & Backplane Bus: Yes

• Channels & Load Voltage L+: No

• Isolation Tested: 707 V DC

Ambient Conditions

• Operating Temperature (Horizontal): -30 to 60 C

• Operating Temperature (Vertical): -30 to 50 C

• Max Altitude: 5,000 m (see manual for >2,000 m)

Dimensions & Weight

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

• Weight: Approx. 30 g
