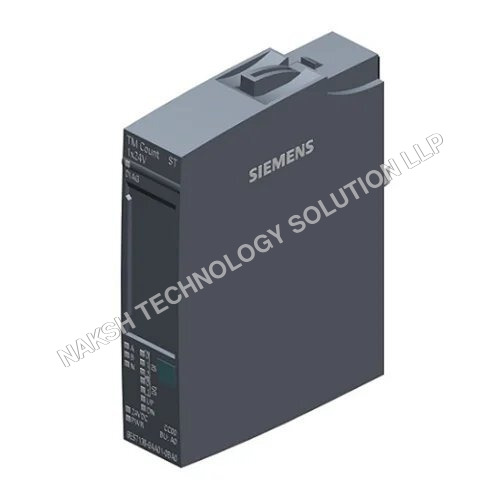

Et200SP Siemens Counter Module

About Et200SP Siemens Counter Module

Key Features of Siemens ET200SP Counter Module:

• High-Speed Counting- Enables fast and accurate counting of digital pulses, ideal for applications such as speed monitoring, position tracking, and process control.

• Flexible Integration- Seamlessly integrates into the Siemens ET200SP distributed I/O system, adding counting functionality without compromising performance.

• Compact & Modular Design- Space-efficient and easily expandable, making it suitable for both small-scale and large automation systems.

• Versatile Applications- Suitable for conveyor systems, material handling, production line monitoring, and other pulse or counting-based processes.

• Wide Input Options- Supports multiple input types, including single and quadrature inputs, for enhanced flexibility with different signal types.

• Seamless Communication- Compatible with PROFINET and other Siemens communication protocols for fast and reliable data exchange with PLCs and automation networks.

• Accurate & Reliable Operation- Delivers precise counting and stable performance, even in demanding industrial environments.

• User-Friendly Configuration- Easy setup and integration through Siemens tools, reducing commissioning time and simplifying deployment.



General Information

• Product Type: TM Count 1x24V

• Firmware Version: V2.0 (FW update possible)

• Base Unit: BU type A0

• Color Code: CC00

Engineering Compatibility

• STEP 7 TIA Portal: From V15 SP1

• STEP 7: From V5.6

• PROFIBUS GSD: Revision 3 & 5

• PROFINET GSDML: V2.34

Supply Voltage

• Rated Voltage: 24 V DC

• Range: 19.228.8 V

• Reverse Polarity Protection: Yes

Input Current

• Max current consumption (no load): 60 mA

Encoder Supply

• Outputs: 1

• Encoder Supply: 24 V (L+ - 0.8 V)

• Short-circuit protection: Yes

• Max Output Current: 300 mA

Power Loss

• Typical: 1 W

Address Area

• Inputs: 16 bytes (4 bytes in Fast mode)

• Outputs: 12 bytes (0 bytes in Fast mode)

Digital Inputs

• Number of DI: 3

• Parameterizable: Yes

• Voltage Type: IEC 61131 Type 3

• Input Voltage:

  • Signal 0: -5 to +5 V

  • Signal 1: +11 to +30 V

  • Max permissible: 30 V

• Input Current: 2.5 mA (typ.)

• Input Delay: Parameterizable (6 s min)

Cable Length

• Shielded: 1000 m

• Unshielded: 600 m

Digital Outputs

• Type: Transistor

• Number of DQ: 2

• Max Output Current: 0.5 A per output

• Short-circuit Protection: Yes

• Switching Frequency:

  • Resistive Load: 10 kHz

  • Inductive Load: 0.5 Hz

• Cable Length:

  • Shielded: 1000 m

  • Unshielded: 600 m

Encoder Features

• Supports 2-wire sensors (max 1.5 mA)

• Incremental Encoder:

  • Voltage: 24 V

  • Max Input Frequency: 200 kHz

  • Max Counting Frequency: 800 kHz (quad evaluation)

  • Shielded cable: 600 m max

• Supports: A/B track, zero track, pulse encoder, direction pulse

Diagnostics / LEDs

• Diagnostic Alarm: Yes

• Wire-break / Short-circuit: Yes

• LED Indicators:

  • PWR (Green)

  • DIAG (Green/Red)

  • Channel Status (Green)

  • Forward/Backward Counter Status (Green)

Integrated Functions

• Counter: 1

• Fast Mode: Yes

• Comparator: 2

• Measuring Functions:

  • Frequency Range: 0.04 Hz 800 kHz

  • Cycle Duration: 1.25 s 25 s

  • Accuracy: 100 ppm

Environmental Conditions

• Operating Temperature:

  • Horizontal: -30C to +60C

  • Vertical/Ceiling/Floor: -30C to +50C

• Max Altitude: 5000 m

Compatibility

• SIMATIC S7-300 / S7-400 / S7-1200 / S7-1500

• PROFIBUS & PROFINET controllers

Dimensions & Weight

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

• Weight: 45 g
