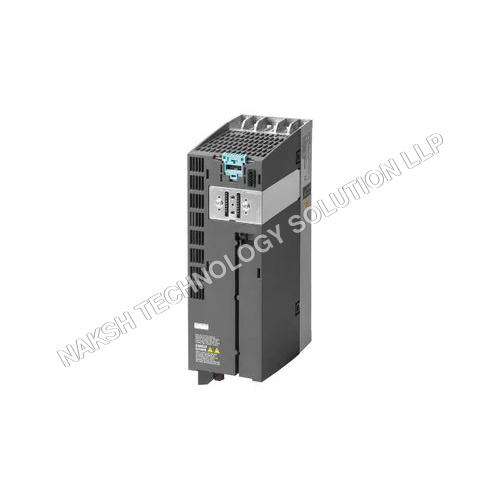

About SIEMENS G120 AC DRIVE 6SL3210-1PE23-3UL0

SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 11KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 15KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 355 X 140 X 165 (HXWXD), FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

SINAMICS Power Module PM240-2

• Article No.: 6SL3210-1PE23-3UL0
• Type: Power Module
• Phases: 3 AC
• Cooling: Internal air cooling (IP20 / UL open type)
• Frame Size: FSC

Input Data

• Line Voltage: 380480 V 10%

• Line Frequency: 4763 Hz

• Rated Current:

  • Low Overload (LO): 39.9 A

  • High Overload (HO): 36 A

Output Data

• Phases: 3 AC

• Rated Voltage: 400 V IEC / 480 V NEC

• Rated Power:

  • LO: 15 kW / 20 hp

  • HO: 11 kW / 15 hp

• Rated Current:

  • LO: 32 A

  • HO: 26 A

• Maximum Output Current: 52 A

• Pulse Frequency: 4 kHz

• Output Frequency:

  • Vector Control: 0200 Hz

  • V/f Control: 0550 Hz

Overload Capability

General Technical Data

• Power Factor (): 0.85

• Offset Factor (cos ): 0.95

• Efficiency (): 0.97

• Sound Pressure Level: 72 dB @1m

• Power Loss: 0.37 kW

Connections

• Line Side: Plug-in screw terminals, 616 mm (AWG 106)

• Motor Side: Plug-in screw terminals, 616 mm (AWG 106)

• Max Motor Cable Length:

  • Shielded: 50 m

  • Unshielded: 100 m

Mechanical Data

• Dimensions (W H D): 140 355 165 mm

• Net Weight: 4.8 kg (10.58 lb)

Ambient Conditions

• Operation LO: -10 40 C

• Operation HO: -10 50 C

• Storage / Transport: -25 55 C

• Relative Humidity: Max. 95% RH, no condensation

• Installation Altitude: 1,000 m
