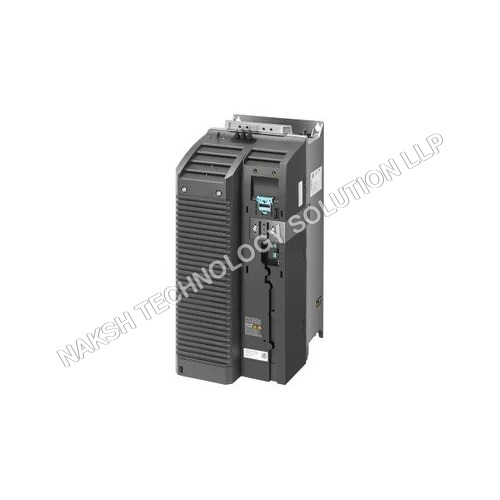

About Siemens G120 Ac Drive 6SL3210-1PE31-1UL0

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551 X 275 X 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

SINAMICS Power Module PM240-2

• Article No.: 6SL3210-1PE31-1UL0
• Type: Power Module
• Phases: 3 AC
• Cooling: Internal air cooling (IP20 / UL open type)
• Frame Size: FSE

Input Data

• Line Voltage: 380480 V 10%

• Line Frequency: 4763 Hz

• Rated Current:

  • Low Overload (LO): 104.00 A

  • High Overload (HO): 94.00 A

Output Data

• Phases: 3 AC

• Rated Voltage: 400 V IEC / 480 V NEC

• Rated Power:

  • LO: 55.00 kW / 75.00 hp

  • HO: 45.00 kW / 60.00 hp

• Rated Current:

  • LO: 110.00 A

  • HO: 90.00 A

• Maximum Output Current: 180.00 A

• Pulse Frequency: 4 kHz

• Output Frequency:

  • Vector Control: 0200 Hz

  • V/f Control: 0550 Hz

Overload Capability

General Technical Data

• Power Factor (): 0.95

• Offset Factor (cos ): 0.99

• Efficiency (): 0.98

• Sound Pressure Level: 71 dB @1m

• Power Loss: 1.54 kW

Connections

• Line Side: Screw-type terminal, 2570 mm (AWG 4 to AWG -1)

• Motor Side: Screw-type terminal, 2570 mm (AWG 4 to AWG -1)

• DC Link (for Braking Resistor): Screw-type terminal, 1035 mm (AWG 82)

• Cable Length: 10 m

• PE Connection: Screw-type terminal

• Max Motor Cable Length:

  • Shielded: 200 m

  • Unshielded: 300 m

Mechanical Data

• Dimensions (W H D): 275 551 237 mm

• Net Weight: 26.00 kg

Ambient Conditions

• Operation LO: -20 40 C

• Operation HO: -20 50 C

• Storage / Transport: -25 55 C

• Relative Humidity: Max. 95% RH, no condensation

• Installation Altitude: 1,000 m
