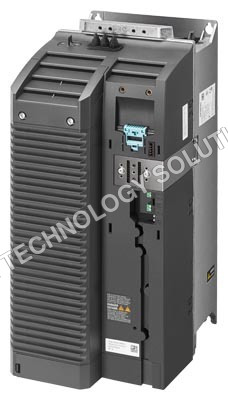

Send InquirySiemens G120 PM240-2 18.5KW 25.0HP Drive
Price 34760.00 INR/ Piece
Siemens G120 PM240-2 18.5KW 25.0HP Drive Specification
- Operating Temperature
- -20 to +50 Celsius (oC)
- Humidity %
- 95 %
- Mounting Type
- DIN Rail
- Product Type
- Siemens Drive
- Application
- Automation
- Protection Level
- Other
- Frequency (MHz)
- 47-63 Hertz (HZ)
- Rated Voltage
- 380-480 Volt (V)
- Color
- Grey
- Dimension (L*W*H)
- 472 X 200 X 237 Millimeter (mm)
- Phase
- 3 AC
Siemens G120 PM240-2 18.5KW 25.0HP Drive Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID), Cash Advance (CA)
- Main Domestic Market
- All India
About Siemens G120 PM240-2 18.5KW 25.0HP Drive
NAKSH TECHNOLOGY We are supplier of Siemens G120. The CU controls and monitors the PM and the connected motor in several operating modes that can be selected. It supports communications to a local control as well as to monitoring devices and equipment. Typical Uses sinamics G120 is especially suitable as universal drive in the whole of industry and the trades, in sectors such as auto mobile, textiles, printing, chemical as well as in general higher-level applications in conveyor systems.
Specifications:
SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 18.5kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
| Enclosure Type | IP20 |
| Control Method | V/F Control |
| Communication Interface | Profinet |
| KW | LO (18.5kW; 25hp; 38A) |
| Net Weight (lb) | 36.597 lb |
| BRAND | SIEMENS |
| Article Number (Market Facing Number) | 6SL32101PE238UL0| 6SL32101PE238UL0 |
| Product Description | SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 18.5kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8 |
| Product family | Ordering Data Overview |
| Product Lifecycle (PLM) | PM300: Active Product |
FAQs of Siemens G120 PM240-2 18.5KW 25.0HP Drive:
Q: What is the protection level of the Siemens G120 PM240-2 Drive?
A: The protection level of the Siemens G120 PM240-2 Drive is IP20.Q: What is the rated voltage supported by this drive?
A: The Siemens G120 PM240-2 Drive supports a rated voltage of 380-480 Volt (V).Q: What is the operating temperature range for this drive?
A: The Siemens G120 PM240-2 Drive operates within a temperature range of -20 to +50 Celsius (C).Q: What are the dimensions of the Siemens G120 PM240-2 Drive?
A: The dimensions are 472 X 200 X 237 Millimeters (mm).Q: What type of mounting does this drive support?
A: The Siemens G120 PM240-2 Drive supports DIN rail mounting.Q: What is the maximum humidity level this drive can operate in?
A: The Siemens G120 PM240-2 Drive can operate in environments with up to 95% humidity.Q: What phase does this drive operate on?
A: The Siemens G120 PM240-2 Drive operates on 3-phase AC power.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
