SIEMENS LOGO PLC 6ED1052-1FB08-0BA2

About SIEMENS LOGO PLC 6ED1052-1FB08-0BA2

LOGO! 230RCE,logic module, display power supply / I/O: 115 V/230 V/relay, 8 DI/4 DO, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable cloud connection, MQTT in all LOGO! 8.4 basic units

Data sheet 6ED1052-1FB08-0BA2

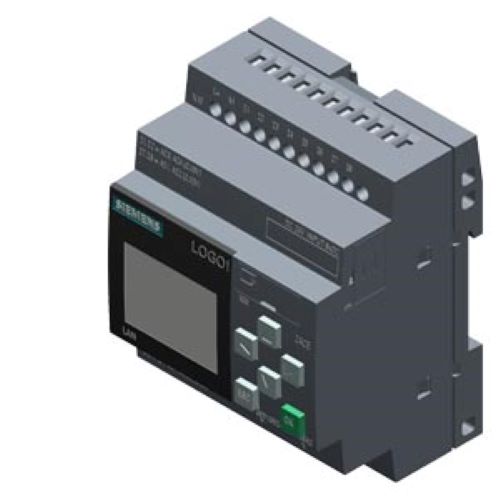

LOGO! 230RCE Logic Module

• Display, power supply / I/O: 115 V / 230 V / relay

• 8 DI / 4 DO

• Memory: 400 blocks, modularly expandable

• Ethernet, integrated web server, data log, user-defined web pages

• Standard microSD card for LOGO! Soft Comfort V8.4 or higher

• Cloud connection, MQTT in all LOGO! 8.4 basic units

• Older projects executable

Display

• With display: Yes

Installation

• Mounting: 35 mm DIN rail

• Width: 4 spacing units

Supply Voltage

• Rated value DC: 115 V DC, 230 V DC (240 V DC)

• Permissible range DC: 100 253 V

• Rated value AC: 115 V AC, 230 V AC (240 V AC)

• Line frequency: 47 63 Hz

Time Switching / Clocks

• Number: Max. 400, function-specific

• Power reserve: 480 h

Digital Inputs

• Number: 8

Digital Outputs

• Number: 4 (Relay)

• Short-circuit protection: No (external fusing necessary)

Relay Outputs

• Switching capacity:

  • Inductive load: Max. 3 A

  • Resistive load: Max. 10 A

EMC / Standards

• Emission of radio interference: EN 55011, Limit Class B

• Developed in accordance with IEC 61131

• VDE 0631: Yes

Approvals

• CE: Yes

• UL: Yes

• FM: Yes

• CSA: No (covered by UL cert)

• Marine approval: In preparation

Ecological Footprint

• Environmental product declaration: Yes

• Global warming potential (CO eq):

  • Total: 124 kg

  • Production: 9.93 kg

  • Operation: 115 kg

  • End-of-life: -0.383 kg

Ambient Conditions

• Operating temperature: -20 C to 55 C (no condensation)

• Storage/transport temperature: -40 C to 70 C

• Altitude during operation: -1,000 m to +2,000 m

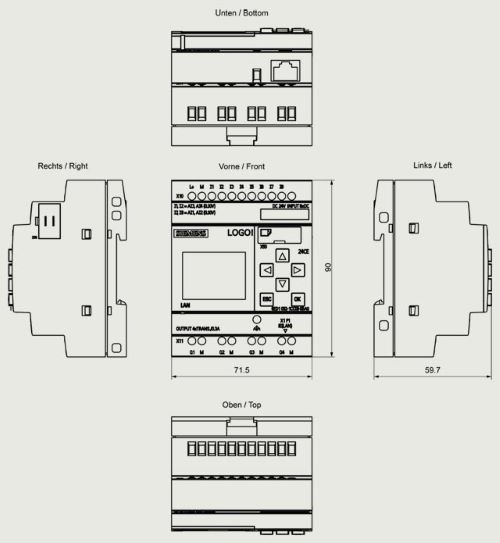

Dimensions

• Width: 71.5 mm

• Height: 90 mm

• Depth: 60 mm
