About SIEMENS S7-1200 PLC MODULE 6ES7223-3BD30-0XB0

Data Sheet 6ES7223-3BD30-0XB0

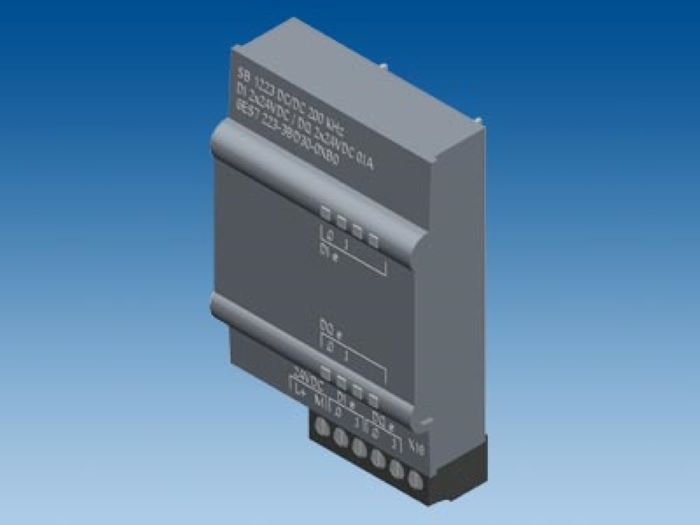

SIMATIC S7-1200, Digital I/O SB 1223, 2 DI / 2 DQ, 24 V DC, 200 kHz

General Information

• Product type: SB 1223, DI 224 V DC / DQ 224 V DC, 200 kHz

Input Current

• From backplane bus: 5 V DC, typ. 35 mA

Power Loss

• Typical: 0.5 W

Digital Inputs

• Number of inputs: 2 (current-sourcing)

• Grouping: 2 per group

• Simultaneously controllable inputs (all mounting positions):

  • Up to 40C: max. 2

Input Voltage

• Rated value: 24 V DC

• Signal "0": (L+ 5.0 V) ... L+

• Signal "1": 0 V ... (L+ 10 V)

Input Current

• Signal "0" max.: 1.4 mA

• Signal "1" min.: 2.9 mA

• Signal "1" typ.: 7 mA

Input Delay (parameterizable)

Standard inputs:

• 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 s

• 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms

Interrupt inputs: Yes (parameterizable)
Technological functions: Yes (parameterizable)

Cable Length

• Shielded (twisted pair): max. 50 m

Digital Outputs

• Number of outputs: 2 (MOSFET, solid-state: sinking/sourcing)

• Grouped in: 2

Protection

• Short-circuit protection: No

Switching Capacity

• Resistive load: max. 0.1 A

Output Voltage

• Rated value: 24 V DC

• Signal "0": max. 1 V

• Signal "1": min. L+ 1.5 V

Output Current

• Rated: 0.1 A

• Max. permissible: 0.1 A

Cable Length

• Shielded: max. 50 m

LED Indicators

• Input status: Yes

• Output status: Yes

Standards & Approvals

• CE, CSA, UL, cULus, FM, RCM, KC, Marine approval

Ambient Conditions

Free Fall

• 0.3 m, five times (in product package)

Operating Temperature

• General: 20C to +60C

• Vertical installation: 20C to +50C

Storage/Transport Temperature

• 40C to +70C

Air Pressure (IEC 60068-2-13)

• Storage/transport: 660 hPa to 1080 hPa

Relative Humidity

• Up to 95% at 25C, no condensation

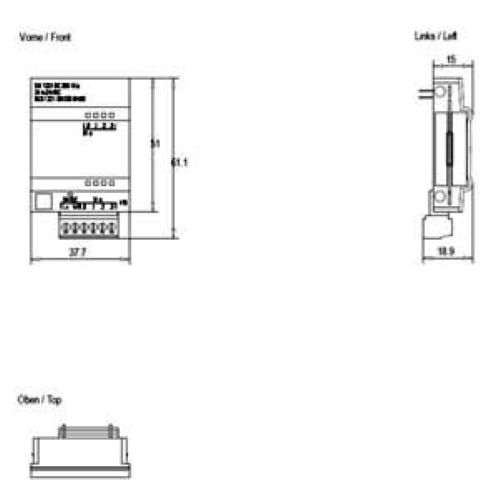

Mechanical Data

• Enclosure material: Plastic

• Width: 38 mm

• Height: 62 mm

• Depth: 21 mm

• Weight: approx. 35 g
