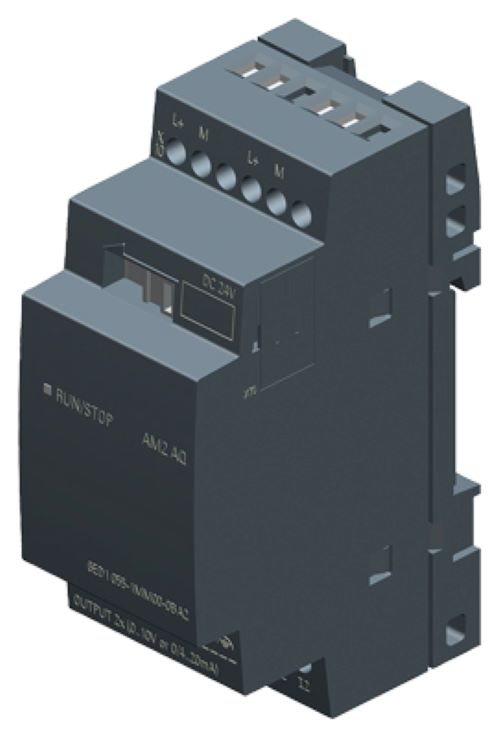

SIEMENS LOGO PLC 6ED1055-1MA00-0BA2

The SIEMENS LOGO PLC 6ED1055-1MA00-0BA2 is a highly reliable and efficient programmable logic controller designed for diverse automation applications. Engineered for rugged environments, it operates seamlessly across a wide temperature range from -20C to +55C, making it suitable for demanding industrial conditions. Its compact dimensions of 35.5 x 90 x 58 mm enable convenient installation on DIN rails, saving space while ensuring robust performance. Operating on 24V DC with a frequency of 50/60 Hz, this PLC guarantees stable and consistent functionality. Boasting an IP20 protection level, it offers essential safeguards against dust and accidental touch, while the grey finish enhances durability and aesthetics. With humidity tolerance up to 95%, this PLC is built to perform under challenging environmental pressures. Whether used for automation or process control, the SIEMENS LOGO PLC ensures precision and reliability in every application.

Data Sheet: 6ED1055-1MA00-0BA2

LOGO! AM2 Expansion Module

• Power supply: 12/24 V DC

• 2 Analog Inputs (AI): 010 V or 0/420 mA

• For LOGO! 8

Installation / Mounting

• Mounting: 35 mm DIN rail

• Width: 2 spacing units

Supply Voltage

• 12 V DC: Yes (10.828.8 V DC)

• 24 V DC: Yes (10.828.8 V DC)

Input Current

• Typical consumption: 30 mA

Analog Inputs

• Number of analog inputs: 2

Supported Input Types

• Voltage: Yes

• Current: Yes

• Resistance thermometer: No

Voltage Input Range

• 0 to +10 V

Current Input Range

• 020 mA (0 mA or 420 mA)

EMC

• Emission according to EN 55011

• Limit Class B (Residential areas): Yes

Protection

• IP20

Standards & Approvals

• CE: Yes

• CSA: Yes

• UL: Yes

• FM: Yes

• Marine approval: Yes

• Developed per IEC 61131: Yes

• According to VDE 0631: Yes

Ecological Footprint

• Total GWP: 16.5 kg CO eq

• Production: 3.22 kg CO eq

• Operation: 13.4 kg CO eq

• End of life: 0.124 kg CO eq

Ambient Conditions

• Operating temperature: 20 C to +55 C (no condensation)

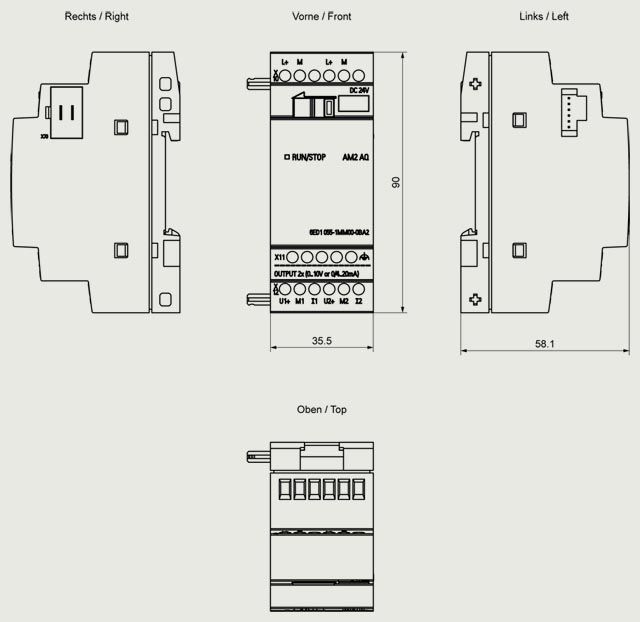

Dimensions

• Width: 35.5 mm

• Height: 90 mm

• Depth: 58 mm
