Siemens PLC 6ES7510-1DK03-0AB0

About Siemens PLC 6ES7510-1DK03-0AB0

Key Features:

• Product Type: Siemens SIMATIC S7-1500 PLC

• Model Number: 6ES7510-1DK03-0AB0

• Processor Type: CPU 1510SP-1 PN

• Integrated PROFINET Interface- Provides efficient and reliable communication within automation networks.

• High-Speed Processing- Designed to handle demanding industrial automation tasks with precision and efficiency.

• Compact Design- Space-saving construction for easy installation in control panels.

• Versatile Applications- Ideal for machine control, process automation, and manufacturing operations.

 General Information

• Product Type: CPU 1510SP-1 PN

• HW Status: FS04

• Firmware Version: V4.0 (Updatable)

• I&M Data: I&M0 to I&M3

• Hot Swapping: Yes

• Isochronous Mode: Yes (with PROFINET)

Supply Voltage

• Rated Value: 24 V DC

• Range: 19.2 28.8 V

• Reverse Polarity Protection: Yes

• Mains Failure Hold-up Time: 10 ms

Current Consumption

• Rated: 0.48 A

• Maximum: 0.7 A

• Inrush Current: 1.34 A

Power

• Backplane Power: 8.05 W

• Power Loss: 3.5 W (typical)

Memory

• Work Memory:

  • Program: 200 KB

  • Data: 1 MB

• SIMATIC Memory Card: Required (up to 32 GB)

• Retentive Memory: Max. 256 KB

CPU Performance

• Bit Operations: 6 ns

• Word Operations: 7 ns

• Fixed Point: 9 ns

• Floating Point: 37 ns

Program Blocks

• Total Elements: 4000

• DB Range: 160,999

• FB/FC Range: 065,535

• Max Size per Block: 200 KB

• Cycle OBs: 100

• Time/Delay/Interrupt OBs: Multiple supported

Timers & Counters

• S7 Counters: 2048

• S7 Timers: 2048

• IEC Timers/Counters: Limited only by memory

• All Retentive: Yes (adjustable)

Addressing

• I/O Modules: Up to 2048

• Input Address Space: 32 KB

• Output Address Space: 32 KB

• Modules per Rack: 82

• ET200SP Modules: Max 64

• ET200AL Modules: Max 16

Clock & Diagnostics

• Hardware Clock: Yes (6-week backup)

• Clock Accuracy: Max 10 s/day

• Diagnostic Buffer: 1000 entries (500 powerfail-proof)

Interfaces

PROFINET (Integrated)

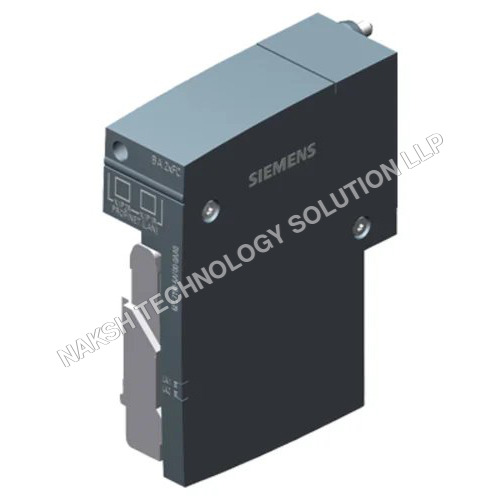

• Ports: 3 (1 built-in + 2 via BusAdapter)

• Supports:

  • PROFINET IO Controller

  • IO Device

  • IRT

  • Isochronous Mode

  • PROFIenergy

  • MRP/MRPD

• Max IO Devices: 128

PROFIBUS (via CM DP)

• Speed: Up to 12 Mbit/s

• Max Devices: 125

Other Protocols

• TCP/IP, UDP, RFC1006

• SNMP, LLDP, DHCP, DNS

• Modbus TCP

Web Server

• HTTP/HTTPS: Yes

• User & Standard Pages: Supported

• Max Sessions: 50

OPC UA Support

• Client + Server: Yes (license required)

• Max Sessions: 32 (server)

• Max Variables: 50,000

• Security Policies: Multiple (including SHA-256)

Technology Functions

• Motion Control: Yes

• PID Control: PID_Compact, PID_3Step, PID-Temp

• High-Speed Counter: Yes

Dimensions & Weight

• Width: 100 mm

• Height: 117 mm

• Depth: 75 mm

• Weight: ~265 g
