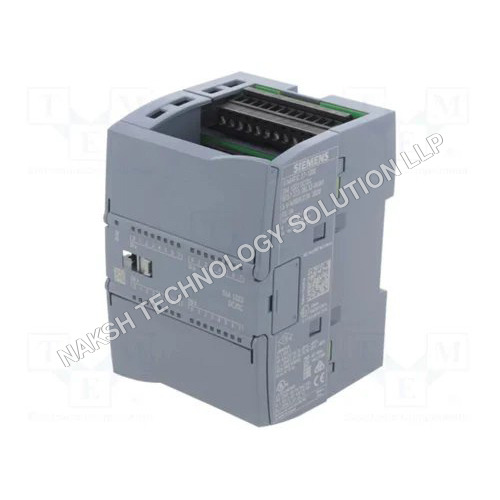

About SIEMENS PLC MODULE S6ES7223-1BL32-0XB0

Manufacturer SeriesS7 1200BrandSiemensPackaging Dimension8,80 x 11,10 x 8,50Net Weight (kg)0,282 Kgmodul number 6ES7223-1BL32-0XB0 SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, Sink/Source, 16 DO, transistor 0.5 A.

SIMATIC S7-1200 SM 1223 Digital I/O Module

Article No.: 6ES7223-1BL32-0XB0

16 DI / 16 DO, 24 V DC

• Digital inputs: Sink/Source

• Digital outputs: Transistor, 0.5 A

General Information

• Product type: SM 1223, DI 16x24 V DC, DQ 16x24 V DC

• Rated supply voltage: 24 V DC

• Permissible voltage range: 20.4 28.8 V DC

• Input current (backplane bus 5 V DC): max. 185 mA

• Typical power loss: 4.5 W

Digital Inputs

• Number of inputs: 16 (grouped in 2s)

• Input voltage: 24 V DC

  • 0 signal: 5 V DC / 1 mA

  • 1 signal: 15 V DC / 2.5 mA (typ. 4 mA)

• Input delay (parameterizable): 0.2 12.8 ms

• Cable length: Shielded max. 500 m, Unshielded max. 300 m

• Input characteristic: IEC 61131, type 1

Digital Outputs

• Number of outputs: 16 (grouped in 1s)

• Output type: Transistor, 0.5 A max per channel

• Short-circuit protection: Not included (external protection required)

• Output voltage: 24 V DC

  • 0 signal max: 0.1 V (10 k load)

  • 1 signal min: 20 V DC

• Output delay: 01 max 50 s, 10 max 200 s

• Total current per group (horizontal installation, up to 50C): 8 A max

• Limitation of inductive shutdown voltage: L+ (-48 V)

Relay Outputs

• Switching capacity:

  • Resistive load: 0.5 A

  • Inductive load: 0.5 A

  • Lamp load: 5 W max

• Cable length: Shielded max. 500 m, Unshielded max. 150 m

Diagnostics & Status

• Diagnostic alarm: Yes

• LEDs for input/output status: Yes

Potential Separation

• Digital inputs: Groups of 2

• Digital outputs: Groups of 1

• Channels to backplane bus: 500 V AC

Protection & Standards

• Degree of protection: IP20

• Certifications: CE, CSA, UL, cULus, FM, RCM, KC, Marine

Ecological Footprint

• Environmental product declaration: Yes

• Global warming potential: 123 kg CO eq

  • Production: 12.1 kg

  • Operation: 111 kg

  • End-of-life: -0.434 kg

Ambient Conditions

• Operating temperature: -20 60 C (horizontal), -20 50 C (vertical)

• Storage/transport temperature: -40 70 C

• Max relative humidity: 95 % (25 C, no condensation)

• Air pressure: 660 1,080 hPa

Mechanics / Material

• Front enclosure: Plastic

• Dimensions: W 70 mm H 100 mm D 75 mm

• Weight: approx. 310 g

• Required front connector: Yes
