SIEMENS PLC MODULES 6ES7332-5HD01-0AB0

SIEMENS PLC MODULES 6ES7332-5HD01-0AB0 About

The Siemens PLC Modules 6ES7332-5HD01-0AB0 are cutting-edge industrial automation components designed for reliable performance in various industrial applications. Operating in electric power mode, these modules are brand new and come with a 1-year warranty. Weighing just 0.252 kilograms, they are lightweight and easy to handle. With a standard size and sleek black color, these modules seamlessly integrate into industrial setups, providing seamless automation solutions tailored to meet your specific needs.

SIMATIC S7-300 Analog Output Module SM 332 (4 AO, U/I, Isolated)

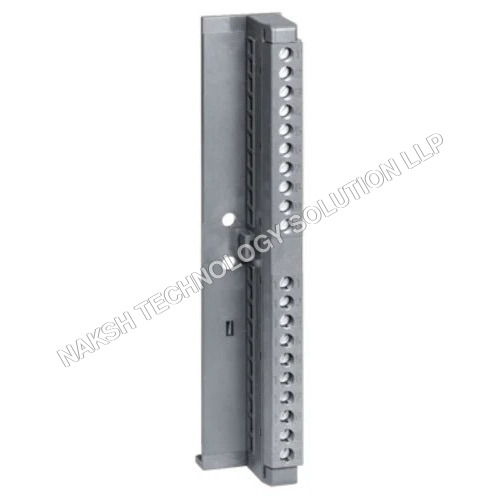

Resolution 11/12 bits, diagnostics, 20-pole front connector, hot-swappable with active backplane bus.

Supply Voltage

Load voltage L+:

• Rated value (DC): 24 V

• Reverse polarity protection: Yes

Input Current

• From load voltage L+ (without load), max.: 240 mA

• From backplane bus (5 V DC), max.: 60 mA

Power Loss

• Typical power loss: 3 W

Analog Outputs

• Number of analog outputs: 4

• Voltage output short-circuit protection: Yes

• Max. short-circuit current (voltage output): 25 mA

• No-load voltage (current output): 18 V

Voltage Output Ranges

• 0 to 10 V Yes

• 1 V to 5 V Yes

• 10 V to +10 V Yes

Current Output Ranges

• 0 to 20 mA Yes

• 20 mA to +20 mA Yes

• 4 mA to 20 mA Yes

Load Impedance

• Voltage outputs, min.: 1 k

• Voltage outputs, capacitive load max.: 1 F

• Current outputs, max.: 500

• Current outputs, inductive load max.: 10 mH

Cable Length

• Shielded cable, max.: 200 m

Analog Value Generation

Integration, conversion time & resolution per channel:

• Resolution (max.)

  • 10 V, 20 mA, 420 mA, 15 V: 11 bit + sign

  • 010 V, 020 mA: 12 bit

• Conversion time per channel: 0.8 ms

Settling Time

• Resistive load: 0.2 ms

• Capacitive load: 3.3 ms

• Inductive load:

  • 0.5 ms (1 mH)

  • 3.3 ms (10 mH)

Errors / Accuracies

Operational error limits (overall temperature range):

• Voltage: 0.5%

• Current: 0.6%

Basic error limits (at 25C):

• Voltage: 0.4%

• Current: 0.5%

Diagnostics / Status

• Diagnostics function: Yes (parameterizable)

• Diagnostic alarm: Yes (parameterizable)

• Diagnostic information readable: Yes

LED Indicators

• Group error SF (red): Yes

Potential Separation

• Between channels: No

• Channels backplane bus: Yes

• Channels load voltage L+: Yes

• Channels electronics supply: Yes

Isolation

• Tested with: 500 V DC

Connection Method

• Required front connector: 20-pin

Dimensions

• Width: 40 mm

• Height: 125 mm

• Depth: 117 mm

Weight

• Approx.: 220 g
