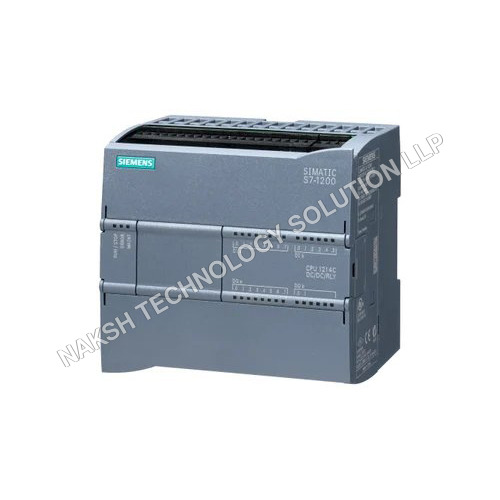

SIMATIC S7-1200F CPU 1214 FC (6ES7214-1AF40-0XB0)

The SIMATIC S7-1200F CPU 1214 FC is a powerful and compact automation controller designed for diverse industrial applications.

Key Specifications:

• Rated Voltage: 24V DC

• Rated Current: 500 mA

• Output Capacity: 1,600 mA

• Frequency: 50/60 Hz

• Power Loss: 12 W

• Dimensions (L W H): 110 100 75 mm

• Weight: 415 g

• Operating Temperature: 0C to 55C

• Humidity Tolerance: Up to 95%

• Mounting: DIN rail

• Protection Level: IP20

Features:

• Compact and lightweight design for easy DIN-rail installation

• Reliable performance for demanding automation tasks

• Operates efficiently in varied temperature and humidity conditions

• Space-efficient while providing robust functionality

• Suitable for precise and modern industrial automation projects

This controller provides dependable, precise, and efficient performance for industrial automation systems.

SIMATIC S7-1200F CPU 1214 FC Compact CPU

• Article No: 6ES7214-1AF40-0XB0
• Type: DC/DC/DC, onboard I/O: 14 DI, 10 DO, 2 AI 010 V DC
• Memory: Program/data 200 KB
• Power Supply: 20.428.8 V DC

General Information

• Product type: CPU 1214 FC

• Firmware: V4.7

• Engineering: STEP 7 V20 or higher

Supply Voltage

• Rated: 24 V DC

• Permissible range: 20.428.8 V DC

• Reverse polarity protection: Yes

• Load voltage L+: 24 V DC (range: 20.428.8 V)

Power & Consumption

• CPU only: 500 mA

• Max with expansion modules: 1.5 A

• Inrush current: 12 A at 28.8 V

• Backplane bus 5 V DC max: 1.6 A

• Power loss: 12 W

Memory

• Work memory: 200 KB

• Load memory: 4 MB (integrated)

• SIMATIC Memory Card: supported

• Backup: Yes, maintenance-free, battery not required

CPU Processing Times

• Bit operations: 0.08 s/instruction

• Word operations: 1.7 s/instruction

• Floating point: 2.3 s/instruction

Digital Inputs

• Number: 14 (6 usable for technological functions, HSC)

• Type: Source/sink, 24 V DC

• Input delay: 0.0520 ms (parameterizable)

• Max cable length: Shielded 500 m, Unshielded 300 m

• High-speed counting: Single-phase 100 kHz, differential 80 kHz

Digital Outputs

• Number: 10 (4 high-speed pulse train outputs)

• Output voltage: 0 V (max), 1 signal 20 V

• Output current: 0.5 A

• Switching frequency: 100 kHz (pulse outputs)

• Max cable length: Shielded 500 m, Unshielded 150 m

Analog Inputs

• Number: 2

• Range: 010 V

• Input resistance: 100 k

• Max cable length: 100 m (shielded)

Encoder

• 2-wire sensor supported

Communication Interfaces

• PROFINET (Controller & Device)

  • 1x RJ45 port, autonegotiation, autonegotiation crossing

  • Max transmission rate: 100 Mbit/s

• Protocols: PROFIsafe, PROFIBUS (with CM), OPC UA, MODBUS, TCP/IP, ISO-on-TCP, UDP, SNMP, DCP, LLDP

• Web server supported (user-defined websites allowed)

• OPC UA: Basic license required, max 10 sessions, 5 subscriptions/session

S7 Communication

• Server & client supported

• Max total connections: 68

Counters & Positioning

• Counters: 6 (max 100 kHz)

• Frequency measurement: Yes

• Position-controlled axes: 8 max

• Pulse-direction interface axes: 4

• PID controller: Yes

• Alarm inputs: 4

• Pulse outputs: 4 (limit 100 kHz)

Potential Separation

• Digital inputs: No separation

• Digital outputs: Separation between channels not supported

• EMC: IEC 61000-4 compliance for ESD, surges, high-frequency interference

• Emission: EN 55011 Class A/B

Environmental Conditions

• Operation temp: 055 C (horizontal), 045 C (vertical)

• Storage temp: 4070 C

• Relative humidity: 95% (non-condensing)

• Altitude: 1000 m to 5000 m

• Vibration: IEC 60068-2-6, 2 g wall / 1 g DIN rail

• Shock: IEC 60068-2-27, 15 g peak, 11 ms

Protection & Standards

• IP20

• CE, UL, cULus, FM, RCM, KC, Marine approval

• Eco Declaration: Yes (type II, ISO 14021)

• Safety: PLe (ISO 13849-1), SIL3 (IEC 61508)

Programming & Security

• Languages: LAD, FBD, SCL

• Know-how / access protection: User program, copy, block protection

• User administration: 42 users, 14 groups, 20 roles

Dimensions & Weight

• Width: 110 mm

• Height: 100 mm

• Depth: 75 mm

• Weight: 415 g

Technical Details
