SIEMENS S7-1200 PLC MODULE 6ES7222-1BH32-1XB0

About SIEMENS S7-1200 PLC MODULE 6ES7222-1BH32-1XB0

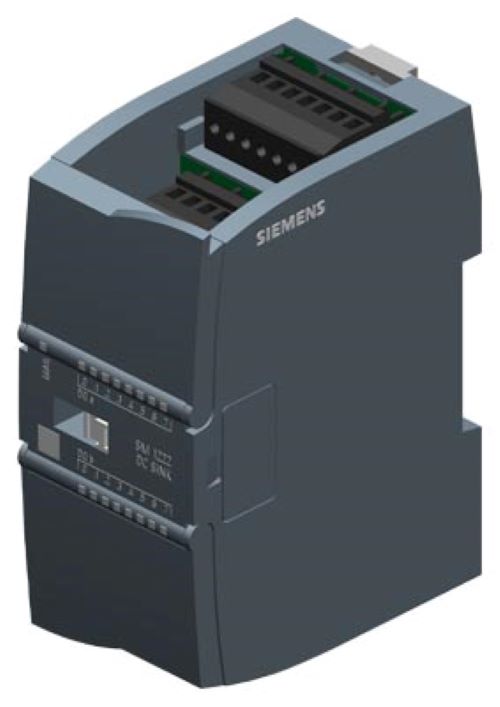

Siemens S7-1200 Digital Output Module SM 1222

Product Code: 6ES7222-1BH32-1XB0

General Information:

• Type: SM 1222, Digital Output Module

• Number of Outputs: 16 DO, 24 V DC

• Output Type: Sourcing / NPN transistor, 0.5 A per channel

• Output Groups: 1

Supply Voltage & Power:

• Permissible Range: 20.4 28.8 V DC

• Backplane Bus Current: Max. 140 mA

• Power Loss: Typ. 2.5 W

Digital Outputs:

• Current-Sinking: Yes

• Short-Circuit Protection: No (must be provided externally)

• Inductive Shutdown Voltage: Typ. 45 V

• Switching Capacity:

  • Resistive load: Max. 0.5 A

  • Lamp load: Max. 5 W

• Output Voltage:

  • Rated: 24 V DC

  • Signal "0": Max. L+ minus 0.75 V DC (with 10 k load)

  • Signal "1": Min. 0.5 V

• Output Current:

  • Signal "1": 0.5 A

  • Signal "0" (residual current): Max. 75 A

• Output Delay:

  • "0""1": Max. 20 s

  • "1""0": Max. 350 s

• Total Current per Group (horizontal installation, up to 50 C): Max. 8 A

• Cable Length: Shielded max. 500 m, Unshielded max. 150 m

Diagnostics & Status:

• Diagnostic Alarm: Yes

• LED Indicator: Shows output status

Potential Separation & Isolation:

• Between Channels: Yes, groups of 1

• Between Channels and Backplane Bus: 500 V AC

Degree of Protection & Standards:

• IP Degree of Protection: IP20

• Certifications: CE, CSA, UL, cULus, FM, RCM, KC, Marine

Ambient Conditions:

• Operating Temperature:

  • Horizontal: -20 C to 60 C

  • Vertical: -20 C to 50 C

  • Permissible change rate: 3C/min (from 5C to 55C)

• Storage/Transport Temperature: -40 C to 70 C

• Air Pressure: 6601,080 hPa

• Relative Humidity: Max. 95 % (non-condensing)

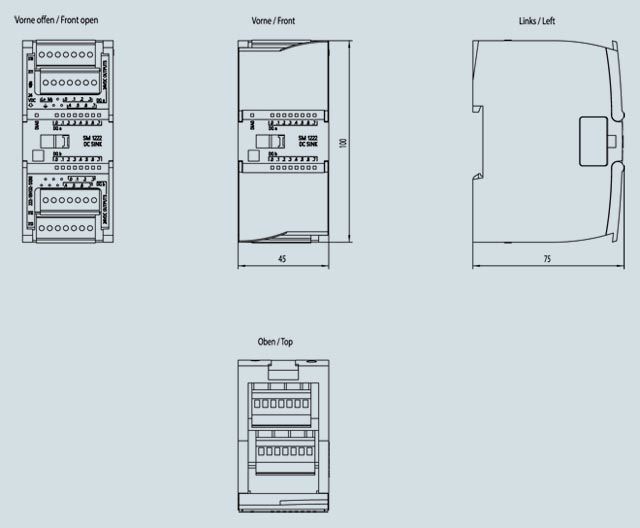

Mechanics & Dimensions:

• Front Connector: Required

• Enclosure Material: Plastic

• Width: 45 mm

• Height: 100 mm

• Depth: 75 mm

• Weight: 220 g
