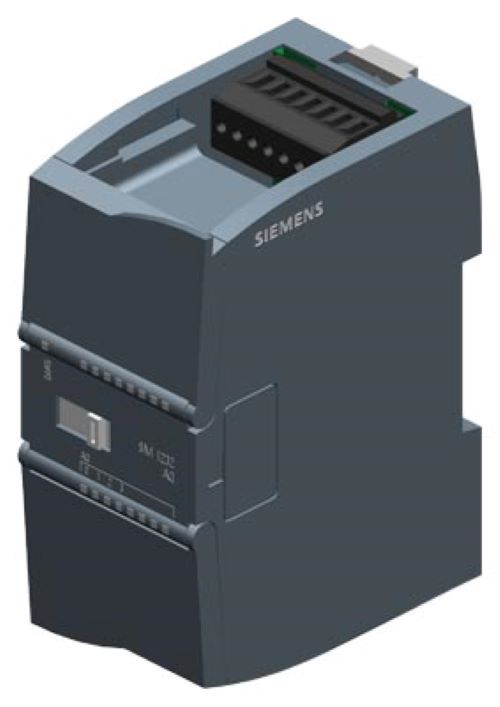

SIEMENS S7-1200 PLC MODULE 6ES7232-4HD32-0XB0

About SIEMENS S7-1200 PLC MODULE 6ES7232-4HD32-0XB0

Data Sheet 6ES7232-4HD32-0XB0

SIMATIC S7-1200, Analog Output, SM 1232 4 AO, 10 V / 0-20 mA / 4-20 mA

General Information

• Product type designation: SM 1232, AQ 4x14 bit

Supply Voltage

• Rated value (DC): 24 V

• Current consumption: typ. 45 mA

• From backplane bus 5 V DC: typ. 80 mA

• Power loss: typ. 1.5 W

Analog Outputs

• Number of outputs: 4 (current or voltage)

Output ranges:

• Voltage: -10 V to +10 V

• Current: 0 to 20 mA / 4 to 20 mA

Load impedance:

• Voltage outputs: min. 1,000

• Current outputs: max. 600

Cable length: max. 100 m (shielded, twisted pair)

Analog Value Generation

• Resolution (including sign):

  • Voltage: 14 bit

  • Current: 13 bit

Errors / Accuracies

• Temperature error (25 C to 55 C): 0.3% to 0.6%

• Basic error limit (25 C):

  • Voltage: 0.3%

  • Current: 0.3%

• Common mode voltage (interference suppression): max. 12 V

Diagnostics / Status

• Alarms: Yes

• Diagnostic alarm: Yes

• Monitoring: Supply voltage, wire-break, short-circuit

• LED indications: Status of outputs, maintenance

Protection

• IP degree of protection: IP20

Standards / Approvals

• CE, CSA, UL, cULus, FM, RCM, KC, Marine

Ecological Footprint

• Environmental product declaration: Yes

• Global warming potential (CO2 eq):

  • Total: 36.4 kg

  • Production: 7.46 kg

  • Operation: 29.1 kg

  • End of life: -0.18 kg

Ambient Conditions

• Free fall: max. 0.3 m, 5 times (in package)

• Operating temperature: -20 C to 60 C

• Horizontal installation: -20 C to 60 C

• Vertical installation: -20 C to 50 C

• Storage temperature: -40 C to 70 C

• Air pressure (operation): 795 1,080 hPa

• Air pressure (storage/transport): 660 1,080 hPa

• Relative humidity (25 C, no condensation): max. 95%

• Pollutants: SO < 0.5 ppm, HS < 0.1 ppm

Mechanics / Material

• Enclosure material: Plastic

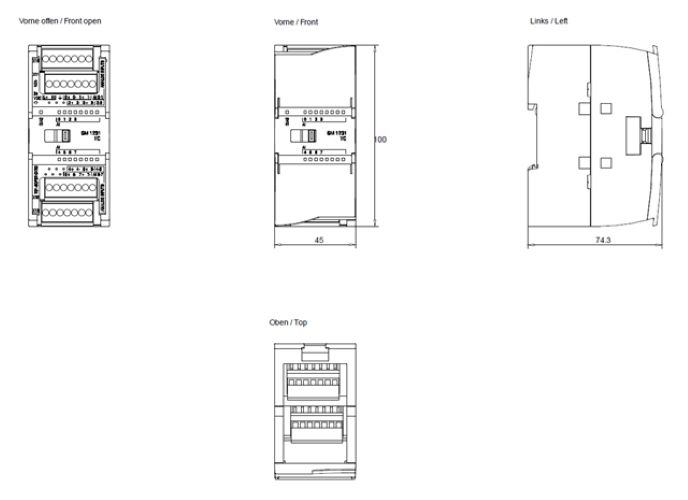

• Dimensions: W 45 mm H 100 mm D 75 mm

• Weight: approx. 180 g
