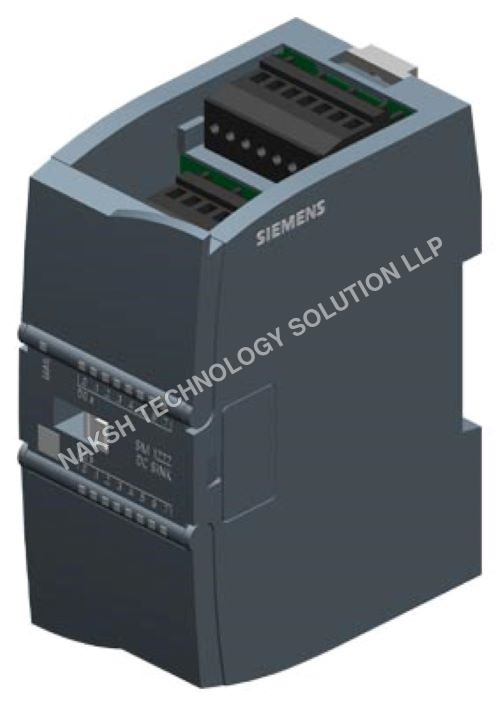

SIEMENS S7-1200 PLC MODULE 6ES7222-1HH32-0XB0

About SIEMENS S7-1200 PLC MODULE 6ES7222-1HH32-0XB0

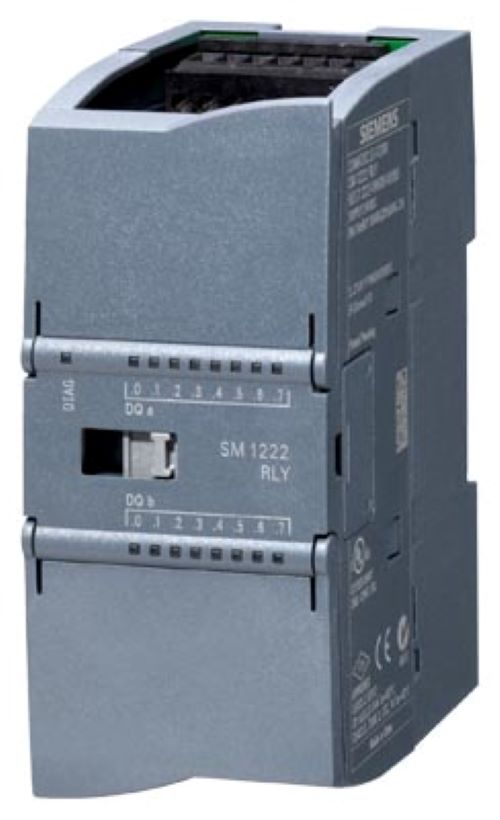

Siemens SIMATIC S7-1200 Digital Output Module SM 1222

16 DO, Relay, 2 A

General Information

• Product Type: SM 1222, DQ 16x relay/2 A

• Supply Voltage: 20.4 V 28.8 V DC

• Current Consumption: Max. 135 mA from backplane bus (5 V DC)

• Power Loss: Typical 8.5 W

Digital Outputs

• Number of Outputs: 16

• Groups: 1

• Short-Circuit Protection: None (to be provided externally)

• Switching Capacity:

  • Resistive Load: Max 2 A

  • Lamp Load: Max 30 W DC / 200 W AC

  • Inductive Load: Max 2 A

• Output Voltage: 530 V DC, 5250 V AC

• Output Current ("1" signal): 2 A

• Output Delay (resistive load):

  • 0 1: Max 10 ms

  • 1 0: Max 10 ms

• Total Current per Group (Horizontal installation, up to 50C): Max 10 A

Relay Outputs

• Number of Relays: 16

• Rated Coil Voltage (L+ DC): 24 V

• Operating Cycles: Max 10 million mechanical, 100,000 at rated load

Cable Length

• Shielded: Max 500 m

• Unshielded: Max 150 m

Diagnostics / Status

• Alarms: Diagnostic alarm available

• LED Indicators: Output status

Potential Separation

• Between Channels: Relays

• Between Groups of 4: Yes

• Between Channels and Backplane Bus: 1500 V AC / 1 min

• Permissible Potential Difference Between Circuits: 750 V AC / 1 min

Degree & Class of Protection

• IP Degree: IP20

Approvals & Standards

• CE, CSA, UL, cULus, FM, RCM, KC, Marine

• Environmental Product Declaration: Yes

• Global Warming Potential:

  • Total: 68.6 kg CO eq

  • Production: 8.16 kg

  • Operation: 60.7 kg

  • End of Life: -0.334 kg

Ambient Conditions

• Operating Temperature: -20C to 60C (Horizontal), -20C to 50C (Vertical)

  • Max. activated outputs at 60C: 8 (non-adjacent points)

  • Max. activated outputs at 55C: 16

• Storage Temperature: -40C to 70C

• Air Pressure: 6601080 hPa

• Relative Humidity: Max 95% (without condensation)

• Permissible Temperature Change: 3C/min from 5C to 55C

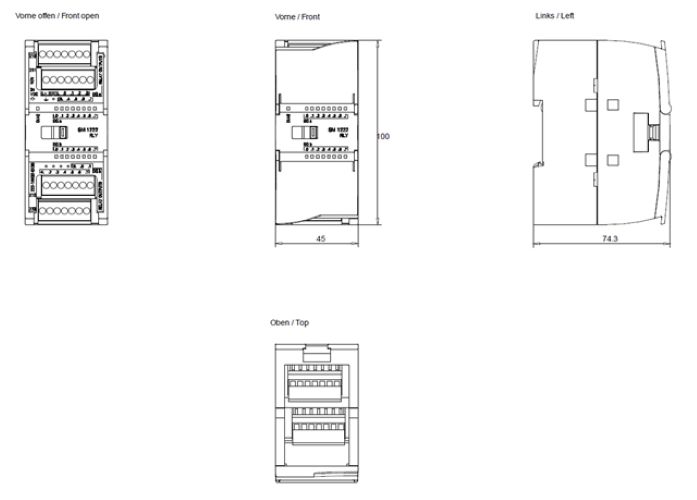

Mechanics / Dimensions

• Front Material: Plastic

• Width: 45 mm

• Height: 100 mm

• Depth: 75 mm

• Weight: 260 g

• Required Front Connector: Yes
