Data Sheet: 6ES7222-1XF32-0XB0

SIMATIC S7-1200 Digital Output Module SM 1222 (8 DO Relay)

General Information

• Product type: SM 1222, 8 DO Relay (2 A each)

Supply Voltage

• DC range: 20.4 V 28.8 V

Input Current

• From backplane bus (5 V DC): max. 140 mA

Power Loss

• Typical: 5 W

Digital Outputs

• Number of outputs: 8 (relay)

• Grouping: 1 per group

• Short-circuit protection: No (external protection required)

Switching Capacity

• Resistive load: max. 2 A

• Lamp load:

  • DC: 30 W

  • AC: 200 W

Output Voltage Range

• DC: 5 V ... 30 V

• AC: 5 V ... 250 V

Output Current

• Signal 1: 2 A

Output Delay

• 0 1: max. 10 ms

• 1 0: max. 10 ms

Total Current

• Horizontal installation (up to 50 C): max. 2 A

Relay Output Details

• Relay outputs: 8

• Coil supply voltage: 24 V DC (L+)

• Mechanical lifetime: 10 million operations

• Electrical lifetime: 100,000 switching cycles

Contact Switching Capacity

• Resistive load: 2 A

• Inductive load: 2 A

• Lamp load: 30 W DC / 200 W AC

Cable Length

• Shielded: max. 500 m

• Unshielded: max. 150 m

Diagnostics

• Diagnostic alarms: Yes

• Output status LEDs: Yes

Isolation / Potential Separation

• Between channels: Relay isolation

• Between channels and backplane bus: 1500 V AC (1 min)

• Between circuits permissible difference: 750 V AC (1 min)

Protection

• IP rating: IP20

Approvals

• CE, CSA, UL, cULus, FM, RCM, KC, Marine approval

Environmental Data

Operating Temperature

• General: 20 C to +60 C

• Horizontal: 20 C to +60 C

• Vertical: 20 C to +50 C

• Temperature change: 5 C 55 C at max 3 C/min

Storage Temperature

• 40 C to +70 C

Humidity

• 95% at 25 C (no condensation)

Air Pressure

• 660 hPa to 1080 hPa

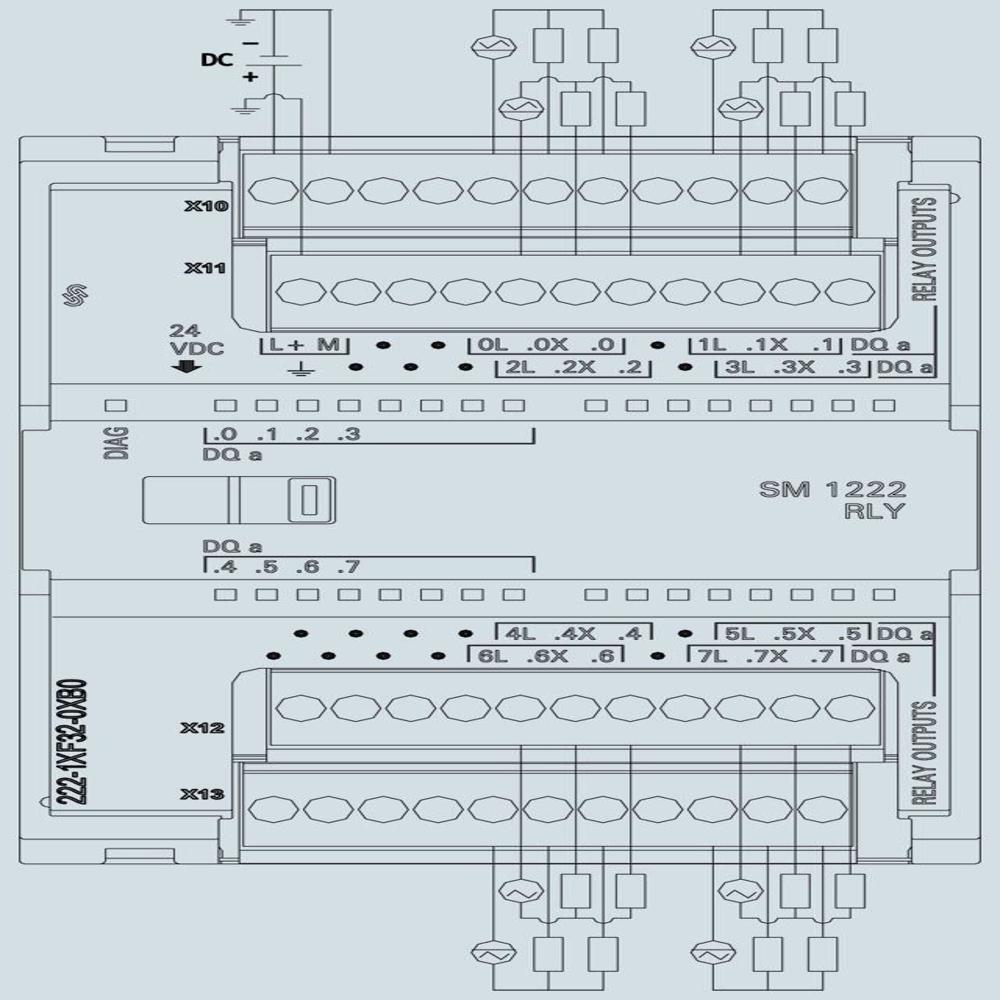

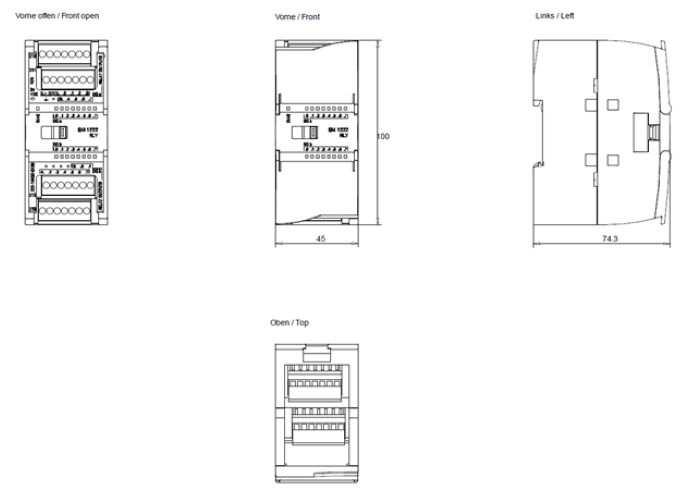

Mechanical Data

• Width: 70 mm

• Height: 100 mm

• Depth: 75 mm

• Weight: approx. 310 g
