SIEMENS S7-1200 PLC MODULE 6ES7223-0BD30-0XB0

About SIEMENS S7-1200 PLC MODULE 6ES7223-0BD30-0XB0

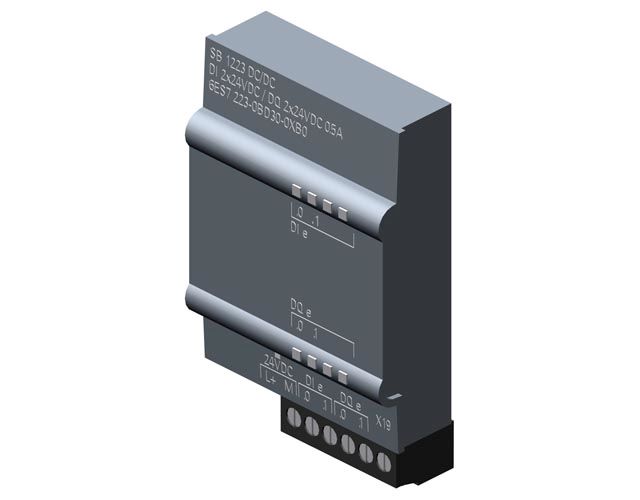

 Siemens SIMATIC S7-1200 Digital I/O Module SB 1223

General Information

• Product Type: SB 1223, DI 2x24 V DC / DQ 2x24 V DC

Supply Voltage

• Permissible Range: 20.4 28.8 V DC

• Backplane Bus Current (5 V DC): typ. 50 mA

• Output Supply Current: max. 4 mA per channel

• Typical Power Loss: 1 W

Digital Inputs (DI)

• Number of Inputs: 2 (current-sinking)

• Grouping: 1 channel per group

• Input Characteristic Curve: IEC 61131, Type 1

• Max Inputs Controllable at 40 C: 2

• Rated Input Voltage: 24 V DC

• Signal 0: 0 5 V

• Signal 1: +15 +30 V

• Input Current: Signal 0 max. 1 mA, Signal 1 typ. 7 mA

• Input Delay (parameterizable): 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 12.8 ms

• Cable Length (shielded): max. 50 m

Digital Outputs (DO)

• Number of Outputs: 2 (MOSFET, solid-state, current-sinking/current-sourcing)

• Grouping: 1 channel per group

• Short-Circuit Protection: No

• Switching Capacity: Resistive load max. 0.5 A, Lamp load max. 5 W

• Load Resistance Upper Limit: 0.6

• Output Voltage: 24 V DC

• Signal 0 Max: 0.1 V (10 k load)

• Signal 1 Min: 20 V

• Output Current: Signal 1 max. 0.5 A, Signal 0 residual max. 10 A

• Cable Length (shielded): max. 50 m

Diagnostics / Status

• Alarms: Yes

• Diagnostics Function: Yes

• LEDs: Input status, Output status

Standards / Approvals

• CE Mark: Yes

• CSA, UL, cULus, FM, RCM, KC, Marine approvals

Ambient Conditions

• Operation Temp: -20 C to 60 C (horizontal), -20 C to 50 C (vertical)

• Storage/Transport Temp: -40 C to 70 C

• Relative Humidity: max. 95 % (25 C, no condensation)

• Air Pressure (Storage/Transport): 660 1080 hPa

• Free Fall: max. 0.3 m, 5 times in product package

Mechanics / Materials

• Enclosure Material: Plastic

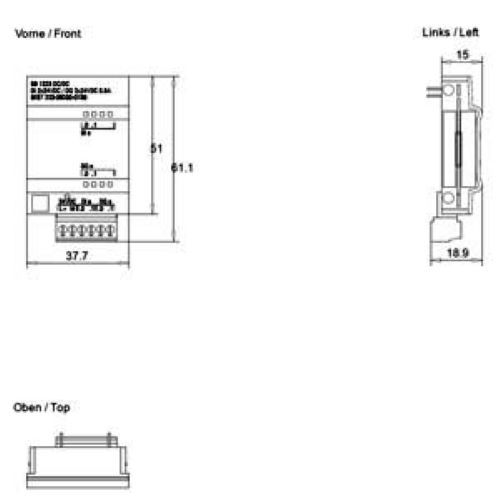

• Dimensions: 38 mm (W) x 62 mm (H) x 21 mm (D)

• Weight: approx. 40 g
