SIEMENS S7-1200 PLC MODULE 6ES7223-1BL32-1XB0

About SIEMENS S7-1200 PLC MODULE 6ES7223-1BL32-1XB0

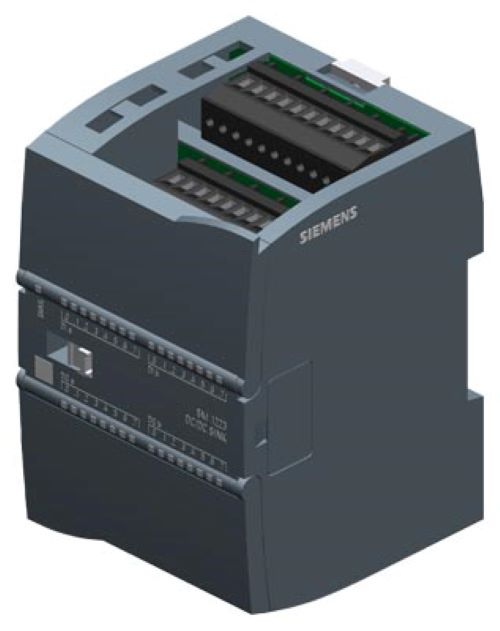

Siemens S7-1200 Digital I/O Module SM 1223

Product Code: 6ES7223-1BL32-1XB0

General Information:

• Type: SM 1223

• Digital Inputs: 16 DI, 24 V DC, Sourcing/Sinking

• Digital Outputs: 16 DO, 24 V DC, transistor 0.5 A, sinking (NPN)

• Input Groups: 2

• Output Groups: 1

Supply Voltage & Power:

• Rated Value: 24 V DC

• Permissible Range: 20.4 28.8 V DC

• Backplane Bus Current: Max. 185 mA

• Power Loss (typical): 4.5 W

Digital Inputs:

• Number of Inputs: 16

• Parallel Switching: Yes

• Input Voltage:

  • Signal "0": 5 V DC at 1 mA

  • Signal "1": 15 V DC at 2.5 mA

• Input Current:

  • Signal "0" max: 1 mA

  • Signal "1" min: 2.5 mA, typ: 4 mA

• Input Delay (parameterizable): 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms, 12.8 ms

• Number of Controllable Inputs: Max. 16 (all mounting positions, horizontal up to 50 C, vertical up to 40 C)

• Cable Length: Shielded max. 500 m, Unshielded max. 300 m

Digital Outputs:

• Number of Outputs: 16 (transistor, current sinking)

• Short-Circuit Protection: Yes, 13.5 A

• Limitation of Inductive Shutdown Voltage: Typ. 45 V

• Switching Capacity:

  • Resistive load: Max. 0.5 A

  • Lamp load: Max. 5 W

• Output Voltage:

  • Signal "0": Max. L+ minus 0.75 V (10 k load)

  • Signal "1": Min. 0.5 V

• Output Current: Signal "1" rated: 0.5 A; Signal "0" residual max: 75 A

• Output Delay: "0""1" max. 20 s; "1""0" max. 350 s

• Total Current per Group: Max. 8 A (horizontal installation up to 50 C)

• Cable Length: Shielded max. 500 m, Unshielded max. 150 m

Diagnostics & Status:

• Diagnostic Alarm: Yes

• LED Indicators: Inputs and outputs status

Potential Separation & Isolation:

• Digital Inputs: Between channels (groups of 2)

• Digital Outputs: Between channels (groups of 1)

• Between Channels & Backplane Bus: 500 V AC

Degree of Protection:

• IP Rating: IP20

Ambient Conditions:

• Operating Temperature: -20 C to 60 C (horizontal), -20 C to 50 C (vertical)

• Temperature Change: 3 C/min, permissible range 555 C

• Storage/Transport Temperature: -40 C to 70 C

• Air Pressure: 660 1080 hPa

• Relative Humidity: Max. 95% (25 C, no condensation)

• Free Fall: Max. 0.3 m, 5 times in package

Connection & Mechanics:

• Front Connector Required: Yes

• Enclosure Material (Front): Plastic

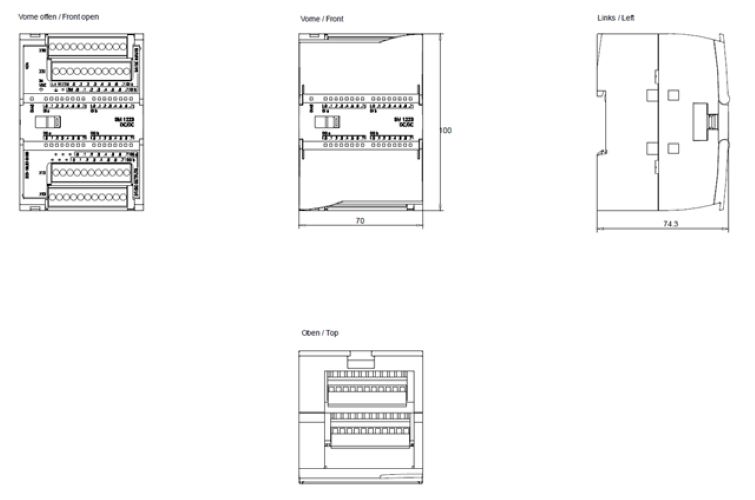

• Dimensions: 70 100 75 mm (W H D)

• Weight: 310 g
