Data Sheet 6ES7226-6RA32-0XB0

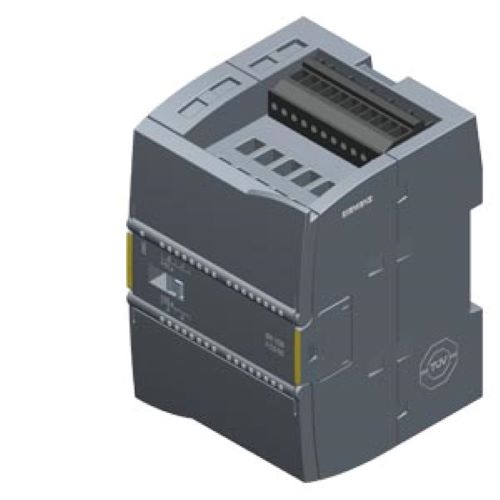

SIMATIC S7-1200, Relay Output SM 1226

• F-DQ 2x Relay / 5 A

• PROFIsafe

• Width: 70 mm

• Safety: Up to PL E (ISO 13849-1) / SIL 3 (IEC 61508)

General Information

• Product type: SM 1226, F-DQ 2x Relay / 5 A

Supply Voltage

• DC: 20.428.8 V

• Power supply according to NEC Class 2: Not required

• Current consumption from backplane bus (5 V DC): Max. 120 mA

• Power loss: 10 W (typical)

Digital Outputs

• Number of outputs: 2

• Output voltage:

  • DC: 530 V

  • AC: 5250 V

• Max. output current: 5 A per circuit, 10 A total per module

• Short-circuit protection: No

Relay Outputs

• Number: 2 (2 circuits per output)

• Switching capacity:

  • Inductive load: Max. 0.1 Hz (DC-13), 2 Hz (AC-15, IEC 60947-5-1)

  • Resistive load: Max. 2 Hz

• Cable length: Shielded/unshielded max. 200 m

Diagnostics

• LED indication for output status: Yes

Protection & Standards

• IP degree of protection: IP20

• CE, cULus, FM approvals

• Highest safety class achievable:

  • ISO 13849-1: Category 4, PL e

  • IEC 61508: SIL 3

• Probability of failure:

  • Low demand (PFDavg, SIL3) < 1.00E-05

  • High demand/continuous (PFH, SIL3) < 4.00E-09

Ambient Conditions

• Operating temperature: 055 C

• Permissible temperature change: 555 C, 3 C/min

• Storage/transport temperature: -4070 C

• Free fall: Max. 0.3 m, 5 times (in packaging)

• Air pressure (storage/transport): 6601,080 hPa

• Relative humidity: Max. 95 % (non-condensing)

Mechanics & Dimensions

• Enclosure material: Plastic (front)

• Width: 70 mm

• Height: 100 mm

• Depth: 75 mm

• Weight: 300 g

Technical Details
