SIEMENS S7 1500 ANALOG INPUT MODULE-6ES7531-7MH00-0AB0

About SIEMENS S7 1500 ANALOG INPUT MODULE-6ES7531-7MH00-0AB0

SIMATIC S7-1500, analog input module AI 16xI BA, 16-bit resolution accuracy 0.5%, 16 channels in groups of 16, common mode voltage 4 V DC, diagnostics, hardware interrupts; delivery including infeed element, shield bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately

Data Sheet 6ES7531-7MH00-0AB0

SIMATIC S7-1500, Analog Input Module (AI 16xI BA) 16 channels, 16-bit resolution, 0.5% accuracy

General Information

• Product type designation: AI 16xI BA

• HW functional status: FS01

• Firmware version: V1.0.0 (update possible)

• I&M data: Yes (I&M0 to I&M3)

• Isochronous mode: No

• Measuring range scalable: No

• Adjustment of measuring range: No

Engineering Tools:

• STEP 7 TIA Portal: V16 / V17

• STEP 7: V5.5 SP3 / -

• PROFIBUS: GSD V1.0 / V5.1

• PROFINET: GSD V2.3 / -

Operating Mode:

• Oversampling: No

• MSI: Yes

• Reparameterization in RUN: Yes

• Calibration in RUN: No

Power

• Power consumption (backplane): 0.85 W

• Power loss: typ. 1.2 W

Analog Inputs

• Number of inputs: 16 (current)

• Permissible input current: max. 40 mA

Input ranges (rated values):

• 020 mA, 420 mA, -20+20 mA

• Input resistance: 25 (+ approx. 42 for PTC overvoltage protection)

• Cable length (shielded): max. 800 m

• Measurement principle: Integrating
• Resolution: 16 bit (including sign)
• Integration time (ms): 2.5 / 16.67 / 20 / 100
• Basic conversion time (ms): 10 / 24 / 27 / 107
• Interference suppression: 50 / 60 / 400 / 10 Hz
• Smoothing: Parameterizable (None, Low, Medium, High)

Encoders

• Current measurement as 2-wire or 4-wire transducer: Yes

• Voltage or resistance measurement: No

Errors / Accuracies

• Linearity error: 0.1%

• Temperature error: 0.006% / K

• Crosstalk: max. -50 dB

• Repeat accuracy (25 C): 0.1%

• Operational error limit: 0.5%

• Basic error limit: 0.3%

• Series mode interference: min. 40 dB

• Common mode voltage: max. 4 V

• Common mode interference: min. 60 dB

Diagnostics / Status

• Diagnostic function: Yes

• Alarms: Diagnostic alarm, Limit value alarm (2 upper, 2 lower per channel)

• Wire-break detection: Yes (only for 420 mA)

• Overflow/underflow: Yes

• LED Indicators:

  • RUN (green)

  • ERROR (red)

  • Channel status (green)

  • Channel diagnostics (red)

  • Module diagnostics (red)

Potential Separation

• Between channels: No

• Between channels in groups of 16: Yes

• Between channels and backplane bus: Yes

• Permissible potential difference (UCM):

  • Between inputs: 8 V DC

  • Between inputs and MANA: 4 V DC

• Isolation tested: 707 V DC

Ambient Conditions

• Operating temperature (horizontal): -30 C to 60 C

• Operating temperature (vertical): -30 C to 40 C

• Installation altitude: max. 5,000 m (restrictions >2,000 m, see manual)

Mechanics / Material

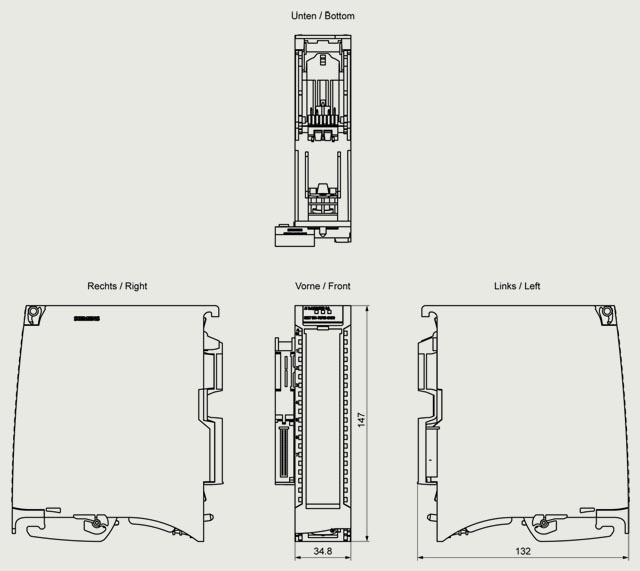

• Dimensions: W 35 mm H 147 mm D 129 mm

• Weight: approx. 250 g
