SIEMENS S7-200 SMART ANALOG MODULES-6ES7288-3AR04-0AA0

The SIEMENS S7-200 SMART Analog Module (6ES7288-3AR04-0AA0) is a high-performance automation component tailored for precise analog signal processing requirements. Designed with IP20 protection and capable of operating in temperatures ranging from -20C to +60C, this module is ideal for demanding industrial environments. With a rated voltage of 24V DC and a rated current of 40mA, it ensures efficient energy utilization while maintaining operational stability. Weighing only 150 grams and compactly sized at 45 x 100 x 81 mm, the module fits securely on DIN rails for streamlined installation. The component supports frequencies of 50/60 Hz and can function optimally in environments with up to 95% humidity. Its robust black design ensures durability and versatility for various automation systems. This module is the trusted choice for precise monitoring, control, and measurement tasks.

Data Sheet 6ES7288-3AR04-0AA0

SIMATIC S7-200 SMART Analog Input Module (RTD) SM AR04 RTD, 4AI, 16-bit

General Information

• Product type: SM AR04, AI RTD 416 bit

• CiR (Configuration in RUN):

  • Reparameterization in RUN: No

Supply Voltage

• Type: DC

• Rated value: 24 V (15% / +20%)

Input Current

• Typical current consumption: 40 mA

• From backplane bus (5 V DC): 80 mA (typ.)

Power Loss

• Typical power loss: 1.5 W

Analog Inputs

• Number of analog inputs: 4

Supported Input Types

• Voltage: No

• Current: No

• Thermocouple: No

• RTD (Resistance thermometer): Yes

• Resistance: Yes

Analog Outputs

• Number of analog outputs: 0

Analog Value Generation

• Resolution (with overrange): Max. 16-bit

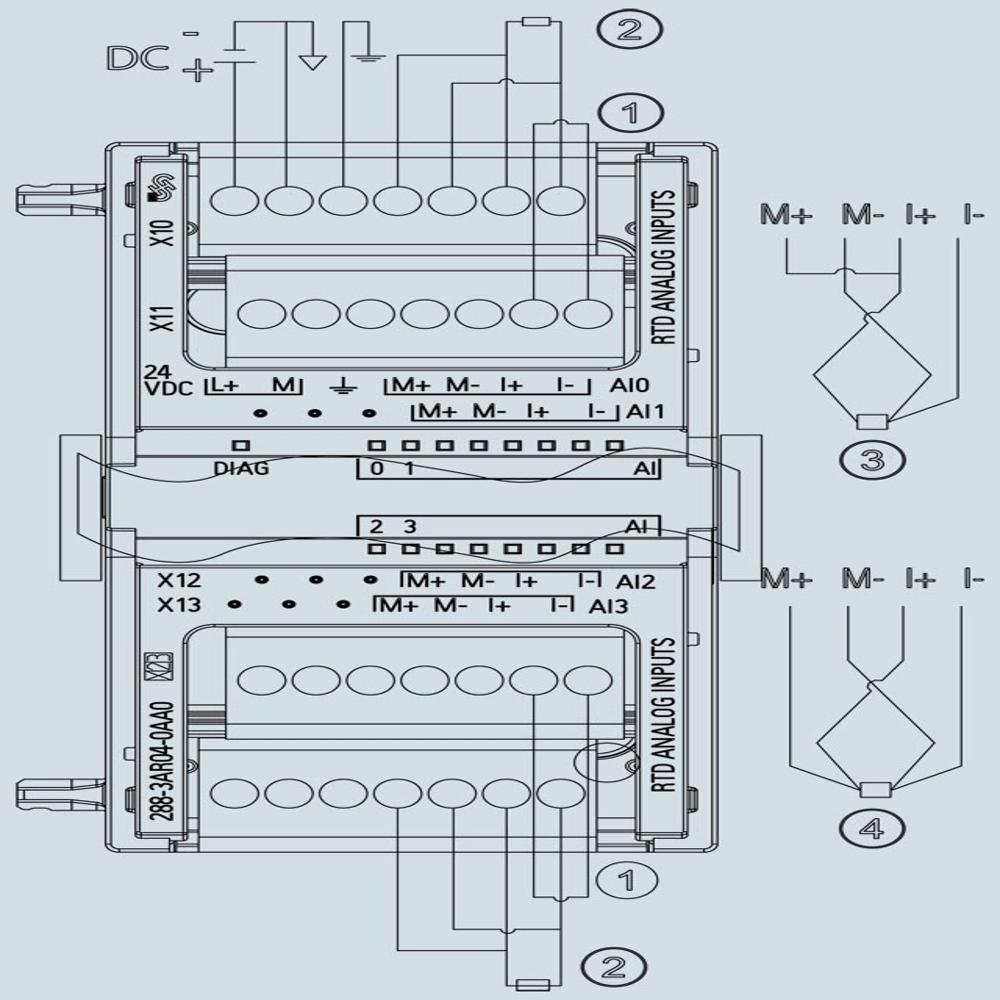

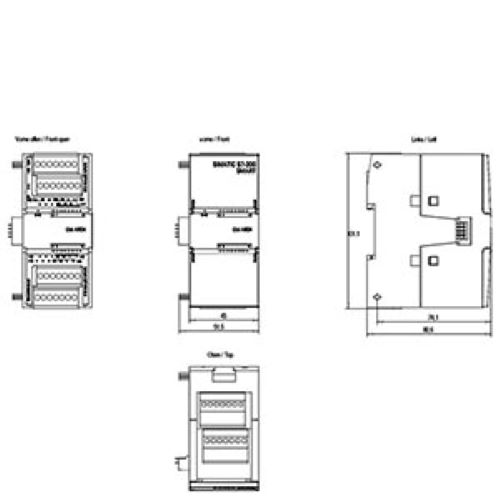

Dimensions

• Width: 45 mm

• Height: 100 mm

• Depth: 81 mm

Weight

• Approx. 150 g
