Siemens S7-200 SMART Analog Input Module SM AT04

Product Code: 6ES7288-3AT04-0AA0

General Information:

• Type: SM AT04

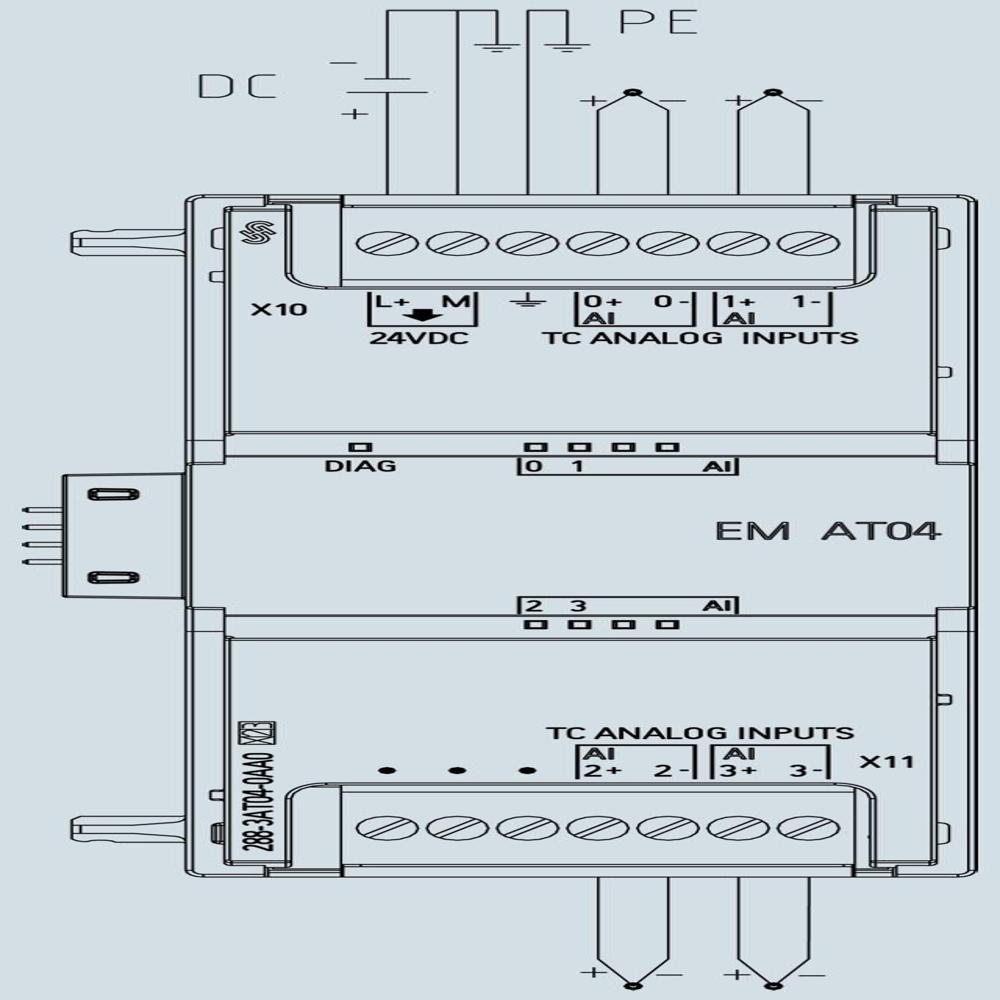

• Analog Inputs (AI): 4 (Thermocouples)

• Analog Outputs: 0

Supply Voltage & Power:

• Type: DC

• Rated Value: 24 V DC

• Permissible Range: 20.4 28.8 V DC

• Reverse Polarity Protection: Yes

• Current Consumption (typical): 30 mA

• Current Consumption (max): 40 mA

• From Backplane Bus 5 V DC: Typ 70 mA, Max 80 mA

• Power Loss (typical): 1.5 W

Analog Inputs:

• Number of Inputs: 4

• Input Type: Thermocouple

• Supported Input Ranges: Thermocouples only (no voltage, current, RTD, or resistance)

• Resolution (max, including overrange): 16 bit

Mechanical & Environmental:

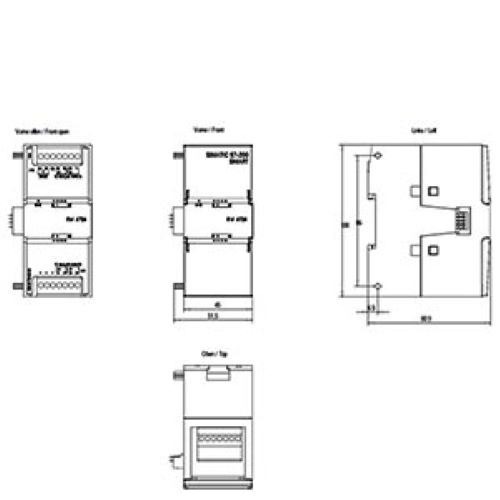

• Dimensions: W 45 H 100 D 81 mm

• Weight: 125 g

• IP Degree of Protection: IP20
