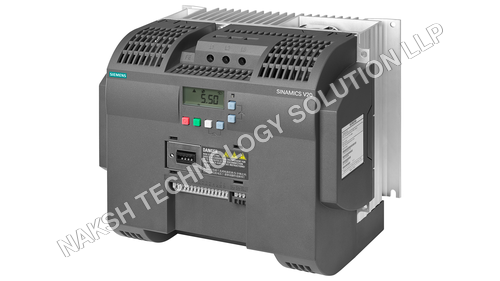

About Siemens V20 7.5KW 10.0HP Drive

Data Sheet SINAMICS V20

MLFB: 6SL3210-5BE27-5UV0

1. Rated Data

• Rated Power (LO): 7.50 kW / 10.00 hp

• Rated Power (HO): 7.50 kW / 10.00 hp

• Rated Voltage: 400 V

• Rated Current (LO): 16.50 A

• Rated Current (HO): 16.50 A (at 480 V also 16.50 A)

• Power Factor (): 0.95

• Offset Factor (cos ): 0.72

• Efficiency (): 0.98

• Pulse Frequency: 4 kHz

• Output Frequency: 0 550 Hz

2. Electrical Input

• Number of Phases: 3 AC

• Line Voltage: 380 480 V (15 % / +10 %)

• Line Frequency: 47 63 Hz

3. Electrical Output

• Rated Current (HO): 16.50 A

• Overload Capability:

  • LO: 110% for 60 s (300 s cycle)

  • HO: 150% for 60 s (300 s cycle)

4. Ambient Conditions

• Operation Temperature: -10 60 C

• Storage Temperature: -40 70 C

• Relative Humidity: 95%

• Cooling: External fan

• Max Installation Altitude: 1000 m

5. Compliance & Standards

• Certifications: CE, cULus, C-Tick (RCM), KC

• Standards: EN 61800-5-1 / EN 60204-1 / EN 61800-3

6. Communication

• Supported Protocols:

  • USS

  • Modbus RTU

7. Mechanical Data

• Height: 240.0 mm

• Width: 172.5 mm

• Depth: 206.5 mm

• Net Weight: 3.70 kg

• Degree of Protection: IP20 / UL Open Type

• Mounting: Through-hole, wall mounting, side-by-side
