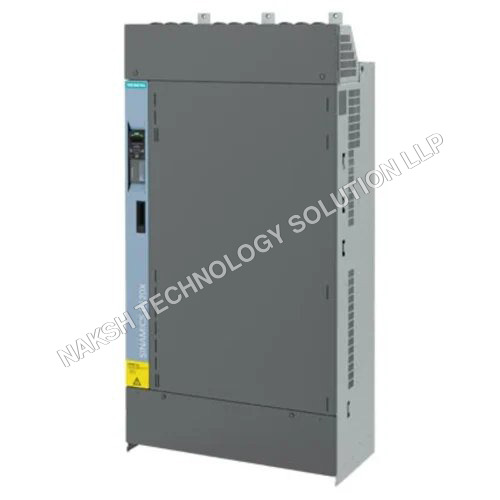

About SIEMENS VFD G120X 6SL3220-3YE16-0UF0

The SIEMENS VFD G120X 6SL3220-3YE16-0UF0 is a high-performance Variable Frequency Drive designed for industrial applications. Operating at a rated voltage of 380-480 Volt and a frequency of 47-63 Hertz, this VFD ensures efficient control over motor speed. Its black PVC casing with a powder-coated surface finish provides durability and protection with an IP20 protection level. The digital display makes it easy to monitor and adjust settings. Backed by a 1-year warranty, this VFD is ideal for use in various industrial settings, thanks to its robust mild steel construction.

SINAMICS G120X Converter

Article No.: 6SL3220-3YE16-0UF0

Rated Data

Input:

• Phases: 3 AC

• Line Voltage: 380 480 V (+10% / -20%)

• Line Frequency: 47 63 Hz

• Rated Voltage: 400 V IEC / 480 V NEC

• Rated Current: LO: 5.50 A IEC / 4.60 A NEC, HO: 3.60 A IEC / 3.00 A NEC

Output:

• Phases: 3 AC

• Rated Voltage: 400 V IEC / 480 V NEC

• Rated Power: LO: 2.20 kW (3.00 hp), HO: 1.50 kW (2.00 hp)

• Rated Current: LO: 5.90 A IEC / 4.80 A NEC, HO: 4.10 A IEC / 3.40 A NEC

• Max. Output Current: 6.40 A

• Pulse Frequency: 4 kHz

• Output Frequency: Vector control: 0 200 Hz, V/f control: 0 550 Hz

Overload Capability:

• LO: 110% for 60 s in 300 s cycle

• HO: 150% for 60 s in 600 s cycle

General Technical Specifications

• Power Factor : 0.70 0.85

• Offset Factor cos : 0.96

• Efficiency : 0.97

• Sound Pressure Level (1m): 55 dB

• Power Loss: 0.091 kW (typical)

• Filter Class: Unfiltered

• Safety Function: "Safe Torque Off" available without SIRIUS device

• Communication: PROFINET, Ether Net/IP

Inputs / Outputs

• Digital Inputs: 6 standard, 1 fail-safe

• Digital Outputs: 2 (relay, resistive load DC 30 V, 5 A), 0 transistor

• Analog Inputs: 2 (differential, 10-bit)

• Analog Outputs: 1 (non-isolated)

• PTC/KTY Motor Temperature Input: 1, accuracy 5 C

Control Techniques

• V/f linear / square-law / parameterizable: Yes

• V/f with Flux Current Control (FCC): Yes

• V/f ECO linear / square-law: Yes

• Sensorless Vector Control: Yes

• Vector Control with Sensor: No

• Encoderless Torque Control: No

• Torque Control with Encoder: No

Ambient Conditions

• Standard Board Coating: Class 3C2 (IEC 60721-3-3)

• Cooling: Air, integrated fan (0.005 m/s)

• Installation Altitude: 1,000 m

• Ambient Temperature: Operation -20 45 C, Transport -40 70 C, Storage -25 55 C

• Max. Relative Humidity: 95% at 40 C, no condensation or icing

Connections

• Signal Cable: 0.15 1.50 mm

• Line / Motor Side: Screw-type terminals, 1.50 2.50 mm

• DC Link PE Connection: M4 screw on housing

• Max Motor Cable Length: Shielded 150 m / Unshielded 300 m

Mechanical Data

• Degree of Protection: IP20 / UL open type

• Frame Size: FSA

• Net Weight: 3.2 kg

• Dimensions: 73 232 218 mm (W H D)

Efficiency & Converter Losses (IEC61800-9-2)

• Efficiency Class: IE2

• Loss Comparison (90% / 100%): 32.9% of rated apparent power

• Typical Losses: 45 90 W depending on operating point

Note: Output current and HP ratings valid for 440480 V.

Operator Panel: Intelligent Operator Panel (IOP-2)

• Display: LCD color, 320 240 pixels

• Protection: IP55 / UL type 12

• Dimensions: 70 106.85 19.65 mm (W H D)

• Net Weight: 0.134 kg

• Ambient Temperature: Operation 0 50 C (55 C with door installation), Storage/Transport -40 70 C

• Max. Relative Humidity: 95% at 25 C
