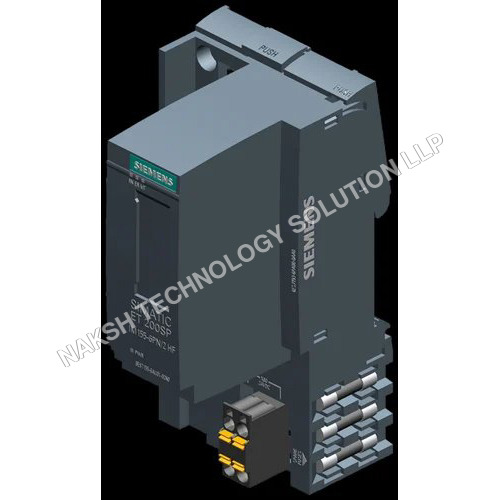

SIMATIC ET 200SP IM 155-6PN2 High Feature

About SIMATIC ET 200SP IM 155-6PN2 High Feature

 Key Features:

• Dual-Port Interface: Equipped with two PROFINET ports, facilitating flexible network configurations and redundancy.
• BusAdapter Slot: Includes one slot for a BusAdapter, enabling the connection of various I/O modules.
• I/O Capacity: Supports up to 64 I/O modules and 16 ET 200AL modules, accommodating extensive peripheral devices.
• Redundancy and Hot Swap: Features S2 redundancy and multi-hot swap capabilities, ensuring high system availability and minimal downtime.
• Isochronous Mode: Offers 0.25 ms isochronous mode, suitable for time-sensitive applications.
• Strain Relief: Optional PROFINET strain relief enhances mechanical stability.
• Server Module: Includes a server module for system diagnostics and communication management.

Applications:

This interface module is ideal for applications requiring robust and scalable control solutions, including:

• Manufacturing automation
• Process control systems
• Building automation

General Information

• Product Type: IM 155-6 MF HF

• Firmware Version: V6.3.1 (FW update possible)

• Vendor ID: 002AH

• Device ID: 0313H

• Manufacturer ID (ODVA): 0x04E3

• Device ID (ODVA Product Code): 0FA2H

• I&M Data: Yes (I&M0 to I&M4)

• Hot Swapping: Yes, multi-hot swap

• Isochronous Mode: Yes

• IRT: Yes

• Tool Changer: Yes (Docking station/unit)

• Local Coupling I/O: 6 coupling modules (1 output + max 5 input)

Engineering / Software

• STEP 7 TIA Portal: Configurable from V20

• STEP 7: Configurable from V5.7 SP3

• PROFINET GSDML: V2.45

• Multi Fieldbus Configuration Tool (MFCT): V1.5.2.0+

• Configuration Control: Via dataset

Supply Voltage

• Rated Value: 24 V DC

• Permissible Range: 19.228.8 V

• Reverse Polarity Protection: Yes

• Short-circuit Protection: Yes

• Mains/Voltage Failure Stored Energy Time: 10 ms

• Current Consumption: 550 mA (typ.), max 650 mA

• Inrush Current Max: 1 A

• Power Loss (typ.): 2 W

Address / Hardware

• Address Space per Module: Max. 288 bytes

• Address Space per Station: Max. 1,440 bytes

• Operable Modules: Max. 64 ET 200SP, max. 16 ET 200AL

• Submodules per Station: Max. 256

Interfaces

• PROFINET: 1 interface, 2 RJ45 ports (integrated switch)

• BusAdapter: BA 2x RJ45 / 2x M12 / 2x FC

• EtherNet/IP: Supported

• Modbus TCP: Supported

• Protocols / Services:

  • PROFINET IO Device, IRT, Dynamic Frame Packing, Fast Forwarding, Fragmentation, PROFIenergy

  • Shared Device: Max 14 controllers (2x PN, 2x EtherNet/IP, 10x Modbus TCP)

  • CIP Implicit/Explicit Messaging

• Updating Times: I/O request interval 2 ms

• Connections per Device: 9 (1x inputs / 2x outputs / 4x volatile registers / 2x device info)

Isochronous Mode

• Equidistance: Yes

• Shortest Clock Pulse: 250 s

• Max Cycle: 4 ms

• Bus Cycle Time (TDP) Min: 250 s

• Max Jitter: 1 s

Diagnostics / Status

• LED Indicators:

  • RUN: Green

  • ERROR: Red

  • MAINT: Yellow

  • PWR: Green (supply voltage)

  • NS: Green/Red

  • MS: Green/Red

  • IO: Red/Green/Yellow

  • LINK TX/RX: Green (2 LEDs on BusAdapter)

• Diagnostics Functions: Yes

• Alarms: Yes

Potential Separation / Isolation

• Backplane Bus & Electronics: No

• PROFINET & All Other Circuits: Yes, 1500 V AC (type test)

• Supply & Other Circuits: No

• Permissible Potential Difference: Safety Extra Low Voltage (SELV)

• Isolation Tested: 707 V DC

Environmental / Security

• Network Loading Class: 3

• PROFINET Security Class: 1

• Signed Firmware Update: Yes

• Secure Boot / Safe Data Removal / Data Integrity: Partial / Yes

Ambient Conditions

• Operating Temperature (Horizontal): -30 to 60 C (No condensation)

• Operating Temperature (Vertical): -30 to 50 C (No condensation)

• Installation Altitude: Max. 5,000 m (see manual for >2,000 m)

Mechanics / Connection

• Strain Relief: Optional

• Connection Method: ET-Connection via BU/BA Send (+ 16 ET 200AL modules)

• Dimensions (WxHxD): 50 x 117 x 74 mm

• Weight: Approx. 120 g
