About SIMATIC S7-1200, Analog output, SM 1232, 6ES7232-4HD32-0XB0

 Communication Protocols RS232 Mounting Type DIN Rail Pulse Transmission Output profinet Manufacturer SeriesS7 1200Output Type Analog SIMATIC S7-1200, Analog output, SM 1232, 4 AO, +/-10 V, 14-bit resolution, or 0-20 mA/4-20 mA, 13-bit resolution siemens expansion module

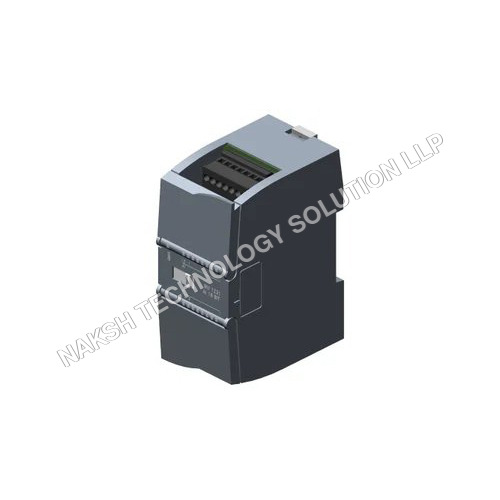

SIMATIC S7-1200, Analog Output Module SM 1232 (6ES7232-4HD32-0XB0)

Product Type: SM 1232, AQ 4x14 bit
Analog Outputs: 4 (Current or Voltage)
Resolution:

• Voltage: 14-bit

• Current: 13-bit

Supply Voltage

• Rated Value: 24 V DC

• Input Current: Typical 45 mA

• From Backplane Bus 5 V DC: Typical 80 mA

• Power Loss: Typical 1.5 W

Analog Outputs

• Output Ranges:

  • Voltage: -10 V to +10 V

  • Current: 0 to 20 mA

• Load Impedance:

  • Voltage output: min. 1 k

  • Current output: max. 600

• Cable Length: Shielded, twisted pair, max. 100 m

Accuracy / Errors

• Temperature Error: 0.3% at 25 C, 0.6% over total range to 55 C

• Basic Error Limit (25 C):

  • Voltage: 0.3%

  • Current: 0.3%

• Interference Voltage Suppression (Common Mode): max. 12 V

Diagnostics / Status

• Alarms: Yes

• Diagnostic Alarm: Yes

• Supply Voltage Monitoring: Yes

• Wire-break Detection: Yes

• Short-circuit Detection: Yes

• LED Indication: Status and Maintenance

Protection / Standards

• IP Degree of Protection: IP20

• CE Mark: Yes

• Approvals: CSA, UL, cULus, FM, RCM, KC, Marine

Environmental Impact

• Global Warming Potential (CO eq):

  • Total: 36.4 kg

  • Production: 7.46 kg

  • Operation: 29.1 kg

  • After End of Life: -0.18 kg

Ambient Conditions

• Operation Temperature:

  • Horizontal: -20 C to 60 C

  • Vertical: -20 C to 50 C

• Storage/Transport: -40 C to 70 C

• Free Fall: Max 0.3 m, 5 times (packaged)

• Relative Humidity: Max 95% (non-condensing)

• Air Pressure:

  • Operation: 795 1,080 hPa

  • Storage: 660 1,080 hPa

• Pollutants: SO < 0.5 ppm, HS < 0.1 ppm (RH < 60%, non-condensing)

Mechanical / Dimensions

• Enclosure Material: Plastic

• Width: 45 mm

• Height: 100 mm

• Depth: 75 mm

• Weight: Approx. 180 g

• Front Connector Required: Yes
