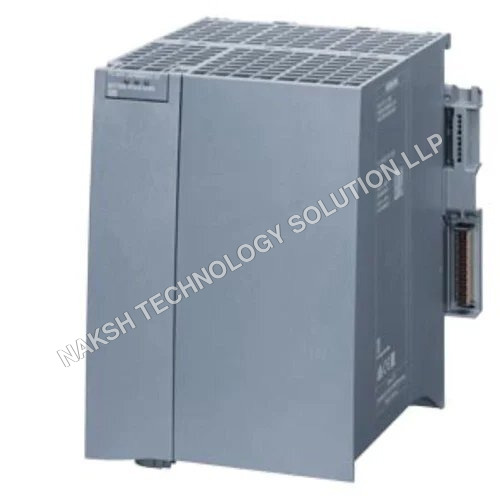

SIMATIC S7-1500 6ES7505-0RB00-0AB0

The SIMATIC S7-1500 model 6ES7505-0RB00-0AB0 is a high-performance automation system designed to meet your industrial requirements. Engineered with a power rating of 60 W and an input current of 3A, its energy-efficient design ensures optimal performance. Operating seamlessly within a temperature range of -25C to +60C and supporting a humidity level of up to 95%, this system is ideal for demanding environmental conditions. The unit features a rated voltage of 24V DC and operates at 50/60 Hz frequency, ensuring reliable power supply for automation tasks. With its compact dimensions of 105 x 147 x 129 mm and a robust protection level of IP20, it is conveniently rack-mounted to fit confined spaces without compromising safety. It boasts a net weight of 865 grams and isolation capability up to 2500V DC, making it durable and secure for industrial operations. Designed in elegant grey, the SIMATIC S7-1500 is your trusted solution for precision and efficiency in automation.

General Information

• Product Type Designation: PS 60W 24/48/60 V DC HF

• HW Functional Status: From FS01

• Firmware Version: V1.0.0

• Engineering Software: STEP 7 TIA Portal from V14 SP1

Supply Voltage

• Rated Value (DC): 24 V / 48 V / 60 V

• Permissible Range:

  • Lower limit: 19.2 V (static), 18.5 V (dynamic)

  • Upper limit: 72 V (static), 75.5 V (dynamic)

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Yes

Mains Buffering

• Stored Energy Time (Mains/Voltage Failure): 20 ms

Input Current

• At 24 V DC: 3 A

• At 48 V DC: 1.5 A

• At 60 V DC: 1.2 A

• Inrush Current: 8 A for t 1 s

Output

• Short-Circuit Protection: Yes

• Power to Backplane Bus: 60 W

• Power Loss: 12 W

Diagnostics / Status

• Status Indicator: Yes

Isolation

• Tested with 2,500 V DC (type test)

EMC

• Interference Immunity (IEC 61000-4-5):

  • 1 kV surge symmetric

  • 2 kV surge asymmetric

  • No external protective circuit required

Degree and Class of Protection

• Equipment Protection Class: I, with protective conductor

Ambient Conditions

• Operating Temperature: -25 C to 60 C (for FS02: min 0 C)

• Maximum Installation Altitude: 2,000 m above sea level

Dimensions

• Width: 105 mm

• Height: 147 mm

• Depth: 129 mm

Weight

• Approx. 865 g

Technical Details
