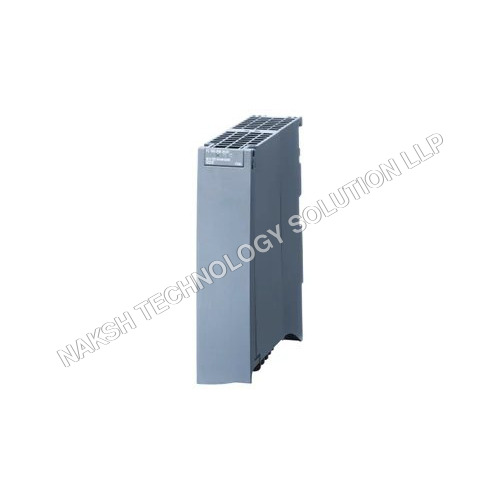

SIMATIC S7-1500 6ES7505-0KA00-0AB0

The SIMATIC S7-1500 model 6ES7505-0KA00-0AB0 is a premium automation solution designed for efficient control systems in industrial applications. Configured with a rated voltage of 24V DC and a power rating of 25W, it ensures robust performance under harsh operating conditions, supporting temperatures from -20C to +60C. The IP20 protection level enhances safety by shielding internal components from dust and external damage. Compactly built with dimensions of 35 x 147 x 129 mm and weighing only 350 g, this unit features rack-mount compatibility for easy installation in constrained spaces. Operating reliably with a humidity tolerance of up to 95%, it supports frequencies of 50/60 Hz for seamless integration across varied setups. The integrated 1.3A input current and 6.2W power loss add to its energy-efficient profile, while its isolation rating of 707V DC ensures dependable operation in complex electrical environments. Boasting a sleek grey finish, the S7-1500 exemplifies Siemenss commitment to delivering cutting-edge control technologies that streamline automation processes.

General Information

• Product Type: PS 25W 24V DC

• Hardware Status: From FS01

• Firmware Version: From V1.0.0

Engineering Software Compatibility

• STEP 7 TIA Portal: From V12

• STEP 7 Classic: From V5.5 SP3 or higher

Supply Voltage

• Rated Value: 24 V DC

• Permissible Range:

  • Lower: 19.2 V (static), 18.5 V (dynamic)

  • Upper: 28.8 V (static), 30.2 V (dynamic)

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Yes

Mains Buffering

• Voltage Failure Stored Energy Time: 20 ms

Input Current

• At 24 V DC: 1.3 A

Output / Power

• Short-Circuit Protection: Yes

• Power to Backplane Bus: 25 W

Power Loss

• At Nominal Conditions: 6.2 W

Diagnostics / Status

• Status Indicator: Yes

Isolation

• Primary / Secondary: Yes

• Test Voltage: 707 V DC

EMC (IEC 61000-4-5 Surge)

• 1 kV (symmetric)

• 2 kV (asymmetric)

• No external protective circuit required

Protection / Safety

• Protection Class: III (with protective conductor)

Ambient Conditions

• Operating Temperature:

  • Min: 25 C (up to FS03: 0 C)

  • Max: 60 C

• Max Installation Altitude: 5000 m

  • Restrictions above 2000 m (see manual)

Dimensions

• Width: 35 mm

• Height: 147 mm

• Depth: 129 mm

Weight

• Approx.: 350 g

Technical Details
