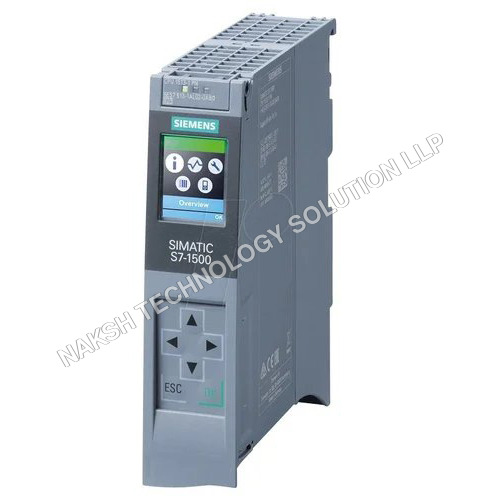

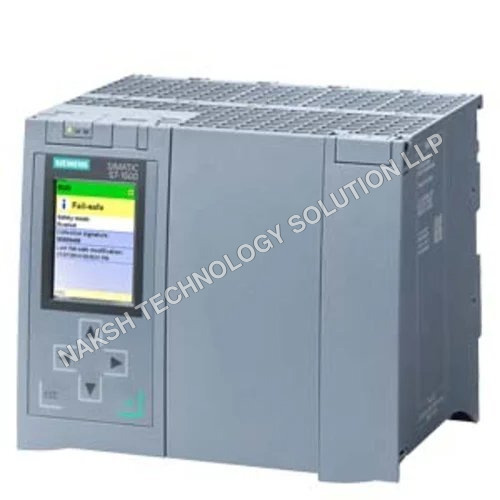

SIMATIC S7-1500F, CPU 1517F 3 PNDP

The SIMATIC S7-1500F CPU 1517F 3 PNDP (Model: 6ES7513-1FM03-0AB0) is a high-performance programmable logic controller designed for industrial automation purposes. Offering exceptional versatility, this unit operates at a rated voltage of 24V DC and delivers efficient performance with a low power consumption of 10W. Boasting an operating temperature range of -30C to +60C and a humidity resistance up to 95%, this robust controller is ideal for harsh environments. It features a DIN Rail mounting type and IP65 protection level for reliable operation in demanding applications. Compact dimensions of 35 x 147 x 129 mm and a lightweight design at 336 grams ensure easy installation. Equipped with Ethernet RJ45 interfaces and a 3.45 cm screen diagonal, it provides seamless connectivity and usability. This automation solution is built to improve productivity and ensure precise operation in industrial processes.

General Information

• Product Type: CPU 1513F-1 PN (S7-1500F)

• HW Functional Status: FS04

• Firmware Version: V4.0 (FW update possible)

• I&M Data: I&M0 to I&M3

• Isochronous Mode: Yes (Distributed & Central)

• SysLog: Yes

• Engineering Software: STEP 7 TIA Portal (V20 for FW V4.0, V18 for FW V3.0 or higher)

Display & Control

• Screen Diagonal: 3.45 cm

• Keys: 8

• Mode Buttons: 2

Supply Voltage & Power

• Rated Value: 24 V DC

• Permissible Range: 19.2 28.8 V DC

• Reverse Polarity Protection: Yes

• Mains Buffering: 5 ms stored energy

• Current Consumption: Rated 0.56 A, Max 0.9 A

• Inrush Current: 1.15 A, It 0.6 As

• Power Loss: Typ. 3.4 W

Memory

• SIMATIC Memory Card Slot: 1 (required)

• Work Memory: Program 900 KB, Data 2.5 MB

• Load Memory: Up to 32 GB (plug-in SIMATIC Memory Card)

• Backup: Maintenance-free

CPU Performance

• Bit Operations: 6 ns

• Word Operations: 7 ns

• Fixed Point Arithmetic: 9 ns

• Floating Point Arithmetic: 37 ns

CPU Blocks

• DBs: 1 59,999 (max size 2.5 MB)

• FBs/FCs: 0 65,535 (max size 900 KB)

• OBs: Max size 900 KB, multiple OB types (cyclic, alarm, error, startup)

• Nesting Depth: 24 per priority class (F-blocks up to 8)

Timers & Counters

• S7 Counters: 2,048 (retentive adjustable)

• IEC Counters: Unlimited (memory-limited)

• S7 Timers: 2,048 (retentive adjustable)

• IEC Timers: Unlimited (memory-limited)

I/O & Addressing

• Max I/O Modules: 2,048

• I/O Address Area: Inputs 32 KB, Outputs 32 KB

• Subprocess Images: Max 32

• Distributed I/O Systems: Max 32

• DP Masters: Max 6 via CM

• Integrated I/O Controller: 1

Clock & Time

• Hardware Clock: Backup 6 weeks, max deviation 10 s/day

• Operating Hours Counter: 16

• Clock Sync: Supported via DP, AS, NTP

Interfaces

• PROFINET: 1 interface (RJ45, 2 ports, integrated switch)

• Protocols Supported: IPv4, PROFINET IO Controller/Device, SIMATIC communication, Open IE, Web server, OPC UA, MODBUS TCP, PROFIsafe

• Connections Max: 128

• Redundancy & Media: MRP, MRPD, H-Sync forwarding

OPC UA

• Client: Yes (Data Access, Method Call, max 1,000 nodes)

• Server: Yes (Data Access, Method Call, Alarms & Conditions, max 50,000 variables)

• Security: Authentication & multiple security policies

• Sessions: Max 32

• Alarms per Program: 100, System Diagnostics: 50

Programming & Status

• Languages: LAD, FBD, STL, SCL, CFC, GRAPH (including failsafe)

• Know-how Protection: Password & block protection

• User Administration: 100 users, 100 groups, 50 roles

• Forcing: Yes, max 200 variables

• Diagnostic Buffer: Yes, 1,000 entries (500 powerfail-proof)

• Traces: 4, max 512 KB each

Technology & Motion Control

• Motion Control Resources: 1,120

• PID Controllers: PID_Compact, PID_3Step, PID_Temp

• High-Speed Counter: Yes

Safety

• Safety Class: PLe (ISO 13849-1), SIL3 (IEC 61508)

• Probability of Failure: Low demand PFDavg < 2.00E-05, High demand PFH < 1.00E-09

• Security: Secure Boot, PROFINET Security Class 1, signed firmware updates

Ambient Conditions

• Operation Temp (Horizontal): -30 C to 60 C

• Operation Temp (Vertical): -30 C to 40 C

• Storage Temp: -40 C to 70 C

• Altitude: Max 5,000 m above sea level

Dimensions & Weight

• Width: 35 mm

• Height: 147 mm

• Depth: 129 mm

• Weight: 336 g
