SIMATIC S7-1500T, CPU 1516T-3 PN/DP The SIMATIC S7-1500T, CPU 1516T-3 PN/DP is a high-performance, temperature-resistant programmable logic controller (PLC) designed for demanding industrial automation applications.Key Features: - Temperature resistance: Operates reliably in extreme temperatures (-25C to 60C)- High-performance processing: Fast execution of complex control algorithms- PROFINET communication: Fast and reliable communication with other devices- Redundancy capabilities: Supports redundant configurations for high availability- Dual PROFINET ports: Enables simultaneous connection to two PROFINET networks- Advanced diagnostics: Provides detailed diagnostics for efficient trouble shooting Technical Specifications: - CPU type: CPU 1516T-3 PN/DP- Processing power: High-performance processing- Memory: 2.5 MB program memory, 10 MB data memory- Communication: PROFINET, PROFIBUS, and other protocols- Compatibility: SIMATIC S7-1500 systems- Certifications: Compliant with various industrial standards

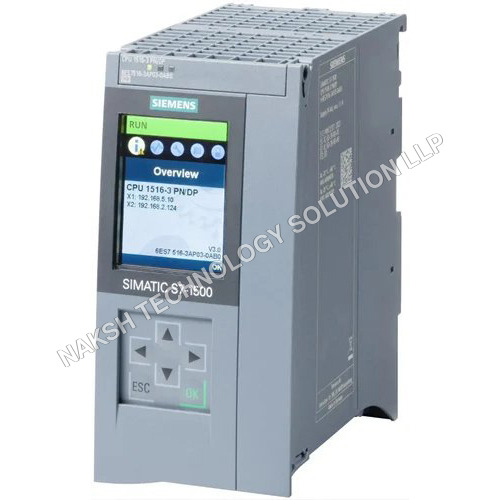

SIMATIC S7-1500T CPU 1516T-3 PN/DP

Article No.: 6ES7516-3TN00-0AB0

Purpose: Central processing unit with work memory 3 MB for program and 7.5 MB for data. Interfaces: PROFINET IRT (2-port switch), Ethernet, PROFIBUS DP. SIMATIC Memory Card: Required.

General Information

• HW functional status: FS11

• Firmware version: V3.1 (FW update possible)

• I&M data: I&M0 to I&M3

• Isochronous mode: Yes (distributed and central)

• SysLog: Yes

Engineering

• STEP 7 TIA Portal: V19 (FW V3.1) / V15 (FW V2.5) or higher

• Configuration control: via dataset

Display / Control

• Screen diagonal: 6.1 cm

• Keys: 6

• Mode selector switch: 1

Supply Voltage

• Rated: 24 V DC

• Permissible range: 19.2 28.8 V DC

• Reverse polarity protection: Yes

• Mains/voltage failure stored energy: 5 ms

Electrical Data

• Current consumption (rated): 1.2 A

• Current consumption (max): 1.5 A

• Inrush current (max): 1.9 A

• Power loss (typ.): 24 W

• Backplane bus power: 12 W (infeed), 30 W (consumption)

Memory

• Work memory: 3 MB (program) / 7.5 MB (data)

• Load memory: Plug-in SIMATIC memory card, max. 32 GB

• Backup: Maintenance-free

• Retentive data area: Max. 512 KB (extended up to 7.5 MB)

• Flags: Max. 16 KB

• Data blocks (DB): 1 60,999; max size 7.5 MB

• Function blocks (FB/FC/OB): Max 1 MB each

CPU Performance

• Bit operations: 6 ns

• Word operations: 7 ns

• Fixed point arithmetic: 9 ns

• Floating point arithmetic: 37 ns

• Max CPU blocks: 8,000

I/O & Address Area

• Max I/O modules: 8,192

• Input/output process image: 32 kB each

• Integrated I/O subsystem: 8 kB inputs / 8 kB outputs

• Max subprocess images: 32

• Distributed I/O systems: 64

Interfaces

PROFINET / Ethernet

• Ports: 2 (X1: 2-port switch, X2: 1-port)

• Protocols: PROFINET IO Controller & Device, Open IE, IP, Web server, Media redundancy

• IRT, Direct Data Exchange: Supported

• Max connectable IO devices: 256 per controller, up to 1,000 total

PROFIBUS DP

• Port: RS 485 (X3)

• Max DP devices: 125 (up to 1,000 total)

• Isochronous mode: Yes

• Equidistance: Yes

Redundancy & Communication

• H-Sync forwarding: Yes

• Media redundancy: MRP (IEC 62439-2)

• Connections max: 256 (CPU + CP/CM)

• PG/OP communication: Yes (TLS V1.3)

• S7 routing: Yes

Open IE / OPC UA / Web

• TCP/IP, UDP, DHCP, DNS, SNMP, DCP, LLDP: Supported

• OPC UA Server & Client: Yes

• Web server: HTTP/HTTPS, max 200 sessions

Diagnostics & Status

• LEDs: RUN/STOP, ERROR, MAINT, LINK TX/RX

• Diagnostic buffer: 3,200 entries (500 power-fail proof)

• Traces: 4 (max 512 KB each)

Supported Technology

• Motion Control: Yes (up to 6,400 resources)

• PID controllers: PID_Compact, PID_3Step, PID_Temp

• High-speed counters: Yes

Programming & Security

• Languages: LAD, FBD, STL, SCL, CFC, GRAPH

• User program protection: Password, copy, block protection

• Access protection: Write/read/complete, user administration

Ambient Conditions

• Operation temp (horizontal): 0 60 C

• Operation temp (vertical): 0 40 C

• Storage temp: -40 70 C

• Altitude: Max 5,000 m

Mechanical Data

• Dimensions: W 175 H 147 D 129 mm

• Weight: Approx. 1,929 g
