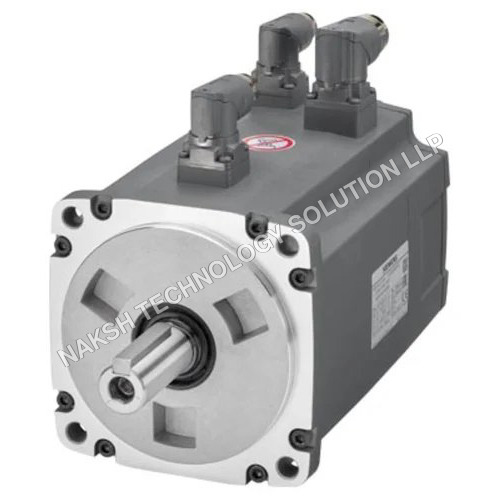

SIEMENS V90 SERVO MOTOR 1FL6062-1AC61-2AA1

SIEMENS V90 SERVO MOTOR 1FL6062-1AC61-2AA1 About

SIMOTICS S-1FL6-1FL6 Operating voltage 3AC 400 V Pn=1 kW; Nn=2000 rpm M0=6 Nm; MN=4.78 Nm Shaft height 65 mm, with angle plug; incremental encoder 2500 incr./rev. with feather key, tolerance N without holding brake Degree of protection IP65 with sealing ring compatible with the converters SINAMICS V70 & V90

Data Sheet: SIMOTICS S-1FL6

Article No.: 1FL6062-1AC61-2AA1

Engineering Data

• Rated speed: 2,000 rpm

• Rated torque: 4.78 Nm (100 K)

• Rated current: 3.0 A

• Rated power: 1.00 kW / 1.36 hp

• Maximum speed: 3,000 rpm

• Maximum torque: 14.30 Nm

• Maximum current: 9 A

• Static torque: 6.00 Nm

• Moment of inertia: 11.700 kgcm

Physical Constants

• Torque constant: 1.70 Nm/A

• Thermal class: B (130 C)

• Net weight: 7.00 kg

Ambient Conditions

• Operation temperature: 0 40 C

• Maximum relative humidity: 90% RH (no condensation at 30 C)

Standards

• CE, EAC

Mechanical Data

• Motor type: High Inertia, Permanent-magnet synchronous motor

• Shaft height: 65 mm

• Encoder: Incremental encoder TTL, 2500 S/R (13 bit)

• Cooling: Natural

• Shaft end: Feather key

• Radial runout tolerance: Class N

• Vibration severity grade: Grade A

• Degree of protection: IP65

• Design: Code I, IM B5 (IM V1, IM V3)

• Connection type: Angular connector (rotatable)
