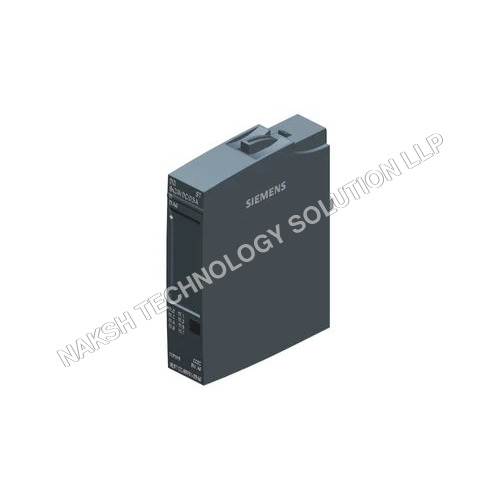

SIEMENS 6ES7131 S7-ET200SP 8DIGITAL OUTPUT 6ES7132-6BF01-0BA0

About SIEMENS 6ES7131 S7-ET200SP 8DIGITAL OUTPUT 6ES7132-6BF01-0BA0

 General Information

• Hardware Status: From FS02

• Firmware Version: V0.0 (FW update not possible)

• I&M Data: I&M0 to I&M3

• Isochronous Mode: No

Engineering

• STEP 7 TIA Portal: From V14

• STEP 7 Classic: V5.5 SP3 or higher

• PCS 7: V8.1 SP1

• GSD (PROFIBUS): Revision 3 & 5+

• GSDML (PROFINET): V2.3

Operating Mode

• Digital Output (DQ): Yes

• Energy-Saving Function: No

• PWM / Oversampling / MSO: No

Supply Voltage

• Rated Value: 24 V DC

• Permissible Range: 19.2 28.8 V

• Reverse Polarity Protection: Yes

Input Current

• Max: 35 mA (without load)

Power Loss

• Typical: 1 W

Address Area

• Per Module: 1 byte + 1 byte for QI information

Hardware Configuration

• Automatic Encoding: Yes

• Mechanical Coding Element: Type A

Connection Variants (BaseUnit)

• 1-wire / 2-wire: BU type A0

• 3-wire: BU type A0 with AUX or potential distributor

• 4-wire: BU type A0 + potential distributor

Digital Outputs

• Type: Source output (PNP, current-sourcing)

• Number of Outputs: 8

• Current per Channel: Max 0.5 A

• Current per Module: Max 4 A

• Switching Capacity:

  • Resistive load: 0.5 A max

  • Lamp load: 5 W max

• Load Resistance Range: 48 12 k

• Output Voltage "1": Min L+ (-0.8 V)

• Residual Current "0": Max 0.1 mA

• Output Delay:

  • "0" "1": Max 50 s

  • "1" "0": Max 100 s

• Switching Frequency:

  • Resistive load: Max 100 Hz

  • Inductive load: Max 2 Hz

  • Lamp load: Max 10 Hz

• Parallel Switching: Redundant control: Yes

Cable Length

• Shielded: Max 1,000 m

• Unshielded: Max 600 m

Diagnostics / Status

• Diagnostics Function: Yes

• Substitute Values: Connectable

• Alarms / Monitoring: Supply voltage, wire-break, short-circuit to L+ and M, group error

• LED Indicators: PWR (green), channel status (green), DIAG (green/red)

Potential Separation

• Between Channels: No

• Between Channels & Backplane Bus: Yes

• Between Channels & Electronics Power Supply: No

• Isolation Tested: 707 V DC

Safety

• Safety Functions: Not suitable

• Highest Safety Class (safety mode): PL d (ISO 13849-1), SIL 2 (IEC 61508)

Ecological Footprint

• Total CO eq: 20.4 kg

• Production: 3.16 kg

• Operation: 17.5 kg

• End-of-Life: -0.221 kg

Ambient Conditions

• Horizontal Installation: -30 C to 60 C (< 0 C from FS02)

• Vertical Installation: -30 C to 50 C (< 0 C from FS02)

• Max Altitude: 5,000 m (restrictions > 2,000 m)

Dimensions & Weight

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

• Weight: Approx. 30 g
