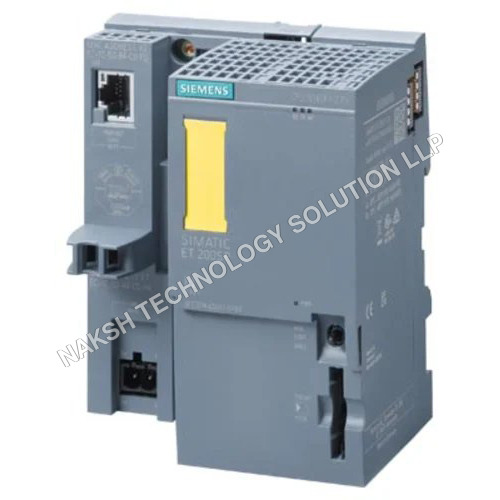

About SIEMENS CPU 1514SP F-2 PN, 900KB Prog.3.5MB Data 6ES7514-2SN03-0AB0

SIMATIC DP, CPU 1514SP F-2 PN for ET 200SP, central processing unit with 900 KB work memory for program and 3.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 6 ns bit performance, SIMATIC Memory Card required, BusAdapter required for 1st interface

Data Sheet: 6ES7514-2SN03-0AB0

Product: SIMATIC DP, CPU 1514SP F-2 PN for ET 200SP

General Information

• Product Type: CPU 1514SP F-2 PN

• HW Functional Status: FS04

• Firmware Version: V4.0 (FW update possible)

• I&M Data: I&M0 to I&M3 supported

• Module Swapping (Hot Swapping): Yes, multi-hot swapping

• Isochronous Mode: Yes (with PROFINET, min OB 6 cycle of 375 s)

• SysLog Support: Yes

• Engineering: STEP 7 TIA Portal V20 (FW V4.0) / V18 (FW V3.0) or higher

• Configuration Control: via dataset

• Control Elements: Mode selector switch 1

Supply Voltage & Power

• Rated Value: 24 V DC (Range 19.228.8 V DC)

• Reverse Polarity Protection: Yes

• Mains Buffering: 10 ms stored energy

• Current Consumption: 0.48 A typical, max. 0.7 A

• Inrush Current: 1.34 A (It 0.3 As)

• Power Loss (typical): 3.5 W

• Backplane Bus Power: 8.05 W

Memory

• SIMATIC Memory Card Required: Yes

• Number of Slots: 1

• Work Memory: 900 kB (program), 3.5 MB (data)

• Load Memory: Up to 32 GB

• Backup: Maintenance-free

CPU Performance

• Bit Operations: 6 ns

• Word Operations: 7 ns

• Fixed Point Arithmetic: 9 ns

• Floating Point Arithmetic: 37 ns

CPU Blocks

• Total Elements: 8,000 (OB, FB, FC, DB, UDTs)

• DBs: 159,999 (user), 60,00060,999 (SFC 86); Max size 3.5 MB

• FB / FC / OB Max Size: 900 kB

• OBs: Various (cycle, time alarm, delay alarm, etc.)

• Nesting Depth: 24 per priority class

Counters, Timers & Data Areas

• S7 Counters / Timers: 2,048 each, adjustable retentivity

• IEC Counters / Timers: Unlimited (memory-limited), adjustable retentivity

• Retentive Data Area: Max 512 kB (472 kB available for bits, timers, counters, DBs)

• Flags: Max 16 kB, 8 clock memories

• Data Blocks Retentivity: Adjustable

I/O Addressing

• Max I/O Modules: 8,192

• Inputs / Outputs: 32 kB each (process image)

• Integrated I/O Subsystem: Inputs 8 kB / Outputs 8 kB

• Subprocess Images: Max 32

• Address Space per Module: Max 288 B

• Address Space per Station: Max 2,560 B

• Distributed I/O Systems: Max 64

• Rack: Max 82 modules, 64 ET 200SP modules, 16 ET 200AL modules

Clock & Time

• Hardware Clock: Backup 6 weeks (typical)

• Deviation: Max 10 s/day (typical 2 s)

• Operating Hours Counter: 16

• Clock Synchronization: DP, AS, NTP

Interfaces

1. PROFINET IRT (2-Port Switch via BusAdapter)

   • IPv4, IO Controller/Device, IRT, PROFIenergy, Prioritized Startup

   • Connectable IO Devices: Max 256 (64 IRT)

   • Update Times: 250 s 64 ms

   • PROFINET Security Class 1

2. PROFINET RT (1-Port)

   • IPv4, IO Controller/Device, PROFIenergy

   • Connectable IO Devices: Max 32

   • Update Times: 1 ms 512 ms

   • PROFINET Security Class 1

3. RS 485 (PROFIBUS DP via CM Module)

   • DP Master/Device

   • Max Connections: 48 (4 reserved for ES/HMI)

   • Max DP Devices: 125

Communication & Protocols

• Industrial Ethernet: 100 Mbps, Autonegotiation, Autocrossing

• Protocols: TCP/IP, UDP, ISO-on-TCP, DHCP, DNS, SNMP, LLDP, MODBUS TCP, PROFIsafe V2.4/2.6

• SIMATIC Communication: PG/OP, S7 Routing, Data Record Routing

• Open IE Communication: TCP/IP, ISO-on-TCP, UDP, optional encryption

• Web Server: HTTP/HTTPS, web API (max 100 sessions, 4 concurrent calls)

• OPC UA: Server & Client (Medium license), max nodes: 20,000, sessions: 48

• Alarms & Conditions: Program and system alarms supported

Motion & PID

• Motion Control Resources: 2,400

• Positioning Axes (4 ms / 8 ms): 11 / 20

• PID Controllers: PID_Compact, PID_3Step, PID_Temp

• High-Speed Counter: Yes

Safety & Security

• Safety Class: PLe / SIL3

• Low Demand PFDavg: < 210

• High Demand PFH: < 110

• Secure Boot, Signed Firmware, Data Removal: Yes

• PROFINET Security Class: 1

Ambient Conditions

• Operating Temperature: Horizontal -30 C to 60 C, Vertical -30 C to 50 C

• Installation Altitude: Max 5,000 m

• No Condensation Allowed

Programming & Protection

• Programming Languages: LAD, FBD, STL, SCL, GRAPH

• User Program Protection: Password / Copy / Block protection

• Access Protection: Write / Read-Write / Failsafe

• Users / Groups / Roles: 100 / 100 / 50

Dimensions & Weight

• Width: 100 mm

• Height: 117 mm

• Depth: 75 mm

• Weight: 265 g
