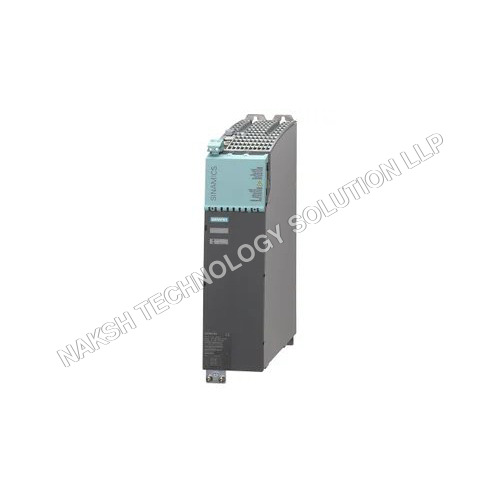

SINAMICS Active Line Module

Article No.: 6SL3130-7TE23-6AA3

Active Line Module for SINAMICS drives with regenerative feedback and DC link connection.

Electrical Data

Input

• Phases: 3 AC

• Line voltage: 342 528 V AC

• Line frequency: 47 63 Hz

• Short-circuit strength: 65 kA

• Overvoltage category: Class III

• Line power factor:

  • Active Mode: cos = 1

  • Smart Mode: 0.65 0.90 (fundamental power factor min. 0.96)

• DC link voltage:

  • 380 400 V AC: 600 V DC (factory)

  • 400 415 V AC: 625 V DC (factory)

  • Smart Mode: 1.35 line voltage

• Electronics supply: 24 V DC (15% / +20%)

Connections

• Line side: M6 bolt (X1)

• Conductor cross-section: 2.5 50 mm (AWG 14 1)

• PE conductor: M6 screw

• Max. cable length: Shielded 630 m, Unshielded 850 m

Rated Data

• Infeed power: 36 kW (40 hp)

  • S6 duty: 47 kW

  • Maximum: 70 kW

• Regenerative feedback power: 36 kW (40 hp)

  • S6 duty: 47 kW

  • Maximum: 70 kW

• DC-link current: 60 A

  • S6 duty: 79 A

  • Maximum: 117 A

• Input current:

  • 380 V AC: 58 A

  • 400 V AC: 55 A

  • 480 V AC: 46 A

  • S6 duty: 71 A

  • Maximum: 107 A

• 24 V DC current requirement: max. 1.5 A

• Busbar ampacity:

  • 24 V DC electronics: 20 A

  • DC link: 200 A

• DC link capacitance:

  • Module: 1,410 F

  • Drive system max.: 20,000 F

General Technical Specs

• Sound pressure level: 65 dB

• Power loss: 0.67 kW

Ambient Conditions

• Operation temperature: 0 40 C

• Cooling air throughput: 0.031 m/s

• Installation altitude: max. 1,000 m

• Cooling type: Internal air cooling (integrated fan)

RI Suppression

• With Active Interface Module:

  • Category C3 (EN 61800-3) up to 350 m cable

  • With line filter: Category C2 up to 350 m, C3 from 350 m to 1000 m

Mechanical Data

• Construction: Booksize

• Degree of protection: IP20 / UL open type

• Net weight: 10 kg

• Dimensions: 150 380 270 mm (W H D)
