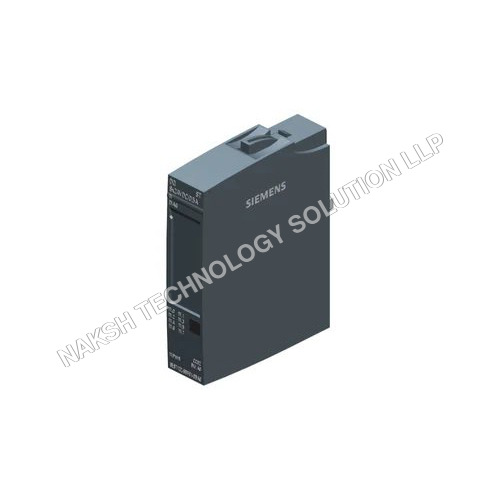

Siemens ET200SP 8ai RTDTC Module

The Siemens ET200SP 8AI RTDTC Module (6ES7134-6GF00-0AA1) is a high-performance solution designed for industrial automation applications. Featuring a robust panel mount design, it operates efficiently within a temperature range of -30C to +60C, making it ideal for demanding environments. With an input voltage of 24 V DC and input current of 25 mA, the module ensures precise signal processing while maintaining energy efficiency. It boasts a power loss of just 0.7 W and provides a reliable isolation level of 707 V DC for enhanced safety. The module is IP54-rated for protection against dust and splashing water, and its matt grey finish ensures durability and a professional appearance. Compact dimensions (15 x 73 x 58 mm) and lightweight build (31 g) further enhance ease of installation and handling. Backed by a 1-year warranty, the ET200SP offers unmatched reliability and performance for single-phase systems operating at a frequency of 50/60 Hz. Engineered for environments with humidity levels up to 95%, it is a reliable and resilient solution for automation needs.

General Information

• Product Type: AI 8xI 2-/4-wire BA

• HW Status: From FS21

• Firmware Version: V1.0.1 (FW update possible)

• BaseUnit Compatibility: BU type A0, A1

• Color Code: CC01

Product Functions

• I&M Data: Yes (I&M0I&M3)

• Isochronous Mode: No

• Measuring Range Scalable: No

Engineering

• STEP 7 TIA Portal: From V13 SP1

• STEP 7: From V5.5 SP3

• PROFIBUS: GSD Rev. 3, 5 or higher

• PROFINET: GSDML V2.3

Supply Voltage

• Rated Value: 24 V DC

• Range: 19.2 28.8 V DC

• Reverse Polarity Protection: Yes

Input Current

• Max Current Consumption: 25 mA (without sensor supply)

Encoder Supply

• 24 V Encoder Supply: Yes

• Short-Circuit Protection: Yes

• Max Output Current: 0.7 A

Power Loss

• Typical: 0.7 W (without encoder supply)

Address Area

• Max Address Space: 16 bytes

Analog Inputs

• Number of Inputs: 8 (Single-ended)

• For Current Measurement: 8

• Destruction Limit (max): 50 mA

• Minimum Cycle Time: 1 ms per channel

Input Ranges

• 020 mA: 100 , 15-bit

• -20+20 mA: 100 , 16-bit incl. sign

• 420 mA: 100 , 15-bit

Cable

• Max Shielded Cable Length: 200 m

Analog Value Processing

• Resolution (max): 16-bit

• Integration Time: Parameterizable

• Interference Suppression: 16.67 / 50 / 60 / 4800 Hz

• Conversion Time:

  • 180 / 60 / 50 / 0.625 ms (or 67.5 / 22.5 / 18.75 ms)

Smoothing Levels

• 4 Levels: None / Low / Medium / High

Encoder Compatibility

• 2-wire Transmitter: Yes (Burden max 650 )

• 4-wire Transmitter: Yes

Accuracy & Error Values

• Linearity Error: 0.01%

• Temperature Error: 0.005%/K

• Repeat Accuracy: 0.05%

• Operational Error: 0.5% (full temp range)

• Basic Error: 0.3% at 25C

• Crosstalk: Min. 50 dB

Diagnostics

• Supply Voltage Monitoring: Yes

• Wire Break: Yes (420 mA)

• Short Circuit: Yes

• Group Error: Yes

• Overflow/Underflow: Yes

LED Indicators

• PWR LED (green): Yes

• Channel Status LED (green): Yes

• Module Diagnostics LED: Green/Red

Isolation / Potential Separation

• Between Channels: No

• Channels to Backplane Bus: Yes

• Channels to Electronics Power: No

• Isolation Test Voltage: 707 V DC

Ambient Conditions

• Temperature (horizontal): -30C to +60C

• Temperature (vertical): -30C to +50C

• Max Altitude: 5000 m (restrictions above 2000 m)

Mechanical Data

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

• Weight: Approx. 31 g

Technical Details
