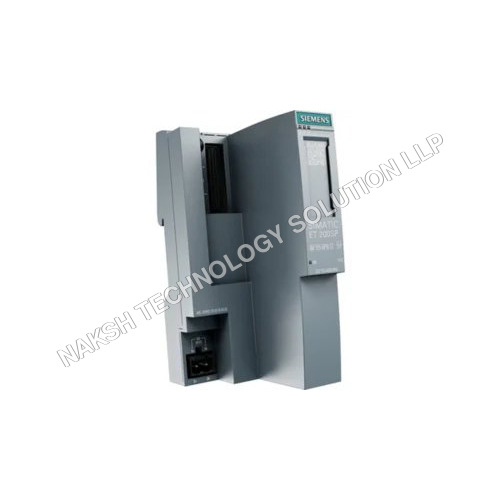

SIMATIC ET 200SP BUNDLE PROFINET IM IM155-6PN ST

About SIMATIC ET 200SP BUNDLE PROFINET IM IM155-6PN ST

 Key Features:

• Interface Module (IM 155-6PN ST): Serves as the central communication interface for the ET 200SP system, facilitating data exchange between connected I/O modules and the higher-level control system.
• Server Module (6ES7193-6PA00-0AA0): Manages system diagnostics and communication, ensuring efficient operation and monitoring of the I/O modules.
• BusAdapter BA 2xRJ45 (6ES7193-6AR00-0AA0): Provides two RJ45 sockets for PROFINET communication, enabling flexible network connectivity.

Specifications:

• I/O Capacity: Supports up to 32 I/O modules and 16 ET 200AL modules, allowing for scalable system configurations.
• Hot Swap Capability: Enables single hot swapping of modules, facilitating maintenance without system downtime.
• Protection Rating: Designed for installation in control cabinets with IP20 protection.

Applications:

• This bundle is ideal for applications requiring reliable and efficient communication in industrial automation systems, including:
• Manufacturing lines
• Process control systems
• Building automation

General Information

• Product Type: IM 155-6 PN ST incl. BA 2x RJ45 and server module

• Firmware Version: V6.3 (update possible)

• Vendor ID: 002AH

• Device ID: 0313H

• Manufacturer ID (ODVA): 04E3H

• Product Code (ODVA): 0FA2H

Product Functions

• I&M Data: I&M0 to I&M4

• Hot Swapping: Multi-hot swapping

• Isochronous Mode: No

• IRT: Yes

• Local Coupling (IO Data): 6 coupling modules (1x output + max. 5x input)

Engineering

• STEP 7 TIA Portal: From V20

• STEP 7: From V5.7 SP3

• PROFINET GSDML: V2.45

• Configuration Control: Via dataset

Supply Voltage

• Rated Value: 24 V DC

• Permissible Range: 19.2 28.8 V

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Yes

• Mains Buffering: 10 ms

Input Current & Power

• Rated Current: 350 mA

• Max Current: 450 mA

• Inrush Current: 1 A

• It: 0.05 As

• Power Loss (typical): 1.8 W

Address Area

• Per Module: Max 288 bytes (input & output)

• Per Station: Max 1,440 bytes

Hardware Configuration

• ET 200SP Modules Max: 32

• ET 200AL Modules Max: 16

• Submodules per Station Max: 256

Interfaces

• PROFINET Interfaces: 1 (2 ports, switch)

• RJ45 (Ethernet): Yes, via BusAdapter

• Bus Adapter Types: BA 2x RJ45, BA 2x FC, BA 2x M12

• Protocols: PROFINET IO Device, Open IE communication, PROFINET MRP client

PROFINET IO Device Services:

• IRT: 1 ms to 4 ms (interval 125 s)

• Dynamic Frame Packing, Fast Forwarding, Fragmentation

• PROFIenergy, Prioritized startup, Shared device

• Max IO Controllers with shared device: 4

• PROFIsafe: Yes

• PROFIBUS, EtherNet/IP, Modbus TCP: No

• Redundancy (S2): No

• Media Redundancy: MRP / MRPD

• Open IE Protocols: TCP/IP, UDP, SNMP, LLDP, ARP, IGMP, Multicast, Broadcast, IPv4

Diagnostics / Status Indicators

• RUN LED: Green

• ERROR LED: Red

• MAINT LED: Yellow

• PWR LED: Green (supply voltage monitoring)

• LINK TX/RX: 2x green LEDs on BusAdapter

• Alarms / Diagnostics Function: Yes

Potential Separation

• Backplane Bus & Electronics: No

• PROFINET & Other Circuits: Yes, 1500 V AC

• Supply & Other Circuits: No

• Isolation Tested: 707 V DC

• Voltage Type: Safety extra low voltage (SELV)

Ambient Conditions

• Operation (Horizontal): -30 C to 60 C, no condensation

• Operation (Vertical): -30 C to 50 C, no condensation

• Altitude Max: 5,000 m (see ET 200SP manual for >2,000 m)

Mechanics / Dimensions

• Strain Relief: Optional

• Width: 50 mm

• Height: 117 mm

• Depth: 74 mm

• Weight: ~120 g
