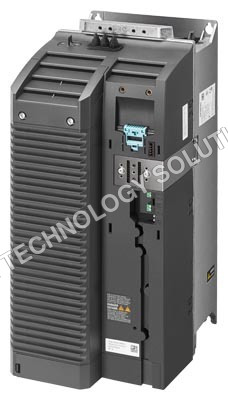

Siemens G120 PM240-2 160KW 250HP Drive

Siemens G120 PM240-2 160KW 250HP Drive

Siemens G120 PM240-2 160KW 250HP Drive

Siemens G120 PM240-2 160KW 250HP Drive Specification

Humidity %
95 %

Mounting Type
DIN Rail

Operating Temperature
-20 to +50 Celsius (oC)

Application
Automation

Protection Level
IP20

Frequency (MHz)
47-63 Hertz (HZ)

Rated Voltage
380-480 Volt (V)

Dimension (L*W*H)
305 x 1,000 x 357 Millimeter (mm)

Weight
106.10 Kilograms (kg)

Phase
3 AC

Siemens G120 PM240-2 160KW 250HP Drive Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
100 Per Week

Delivery Time
1 Days

Main Domestic Market
All India

Certifications
Compliance with standards UL, cUL, CE, C-Tick (RCM), EAC, SEMI CE marking Low-voltage directive 2006/95/EC

About Siemens G120 PM240-2 160KW 250HP Drive

NAKSH TECHNOLOGY We are supplier ofSiemens Sinamics G120. The CU controls and monitors the PM and the connected motor in several operating modes that can be selected. It supports communications to a local control as well as to monitoring devices and equipment. Typical Uses sinamics G120 is especially suitable as universal drive in the whole of industry and the trades, in sectors such as auto mobile, textiles, printing, chemical as well as in general higher-level applications in conveyor systems.

Specifications:

SINAMICS G120/S120 POWER MODULE PM240-2 FSG Integrated Filter EMC Class C3 WITH BUILT IN BRAKING CHOPPER 3AC380-480V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 132kW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 160kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD), FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1

FAQs of Siemens G120 PM240-2 160KW 250HP Drive:

Q: What is the voltage range for the Siemens G120 PM240-2 160KW 250HP Drive?

A: The Siemens G120 PM240-2 Drive operates with a rated voltage range of 380-480 Volt (V).

Q: What type of mounting does the Siemens G120 PM240-2 support?

A: The drive can be mounted using a DIN Rail system.

Q: What is the protection level of the Siemens G120 PM240-2 Drive?

A: The product has an IP20 protection level.

Q: What are the dimensions of the Siemens G120 PM240-2 Drive?

A: The dimensions are 305 x 1,000 x 357 millimeters (mm).

Q: What is the operating temperature range of the Siemens G120 PM240-2 Drive?

A: The drive operates in temperatures ranging from -20 to +50 degrees Celsius.

Q: What is the maximum humidity level the Siemens G120 PM240-2 Drive can handle?

A: The drive is rated for up to 95% humidity.

Q: What is the frequency range supported by the Siemens G120 PM240-2 Drive?

A: It supports a frequency range of 47-63 Hertz (Hz).

Siemens G120 PM240-2 160KW 250HP Drive

Tell us about your requirement

product

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Siemens AC Drive Category

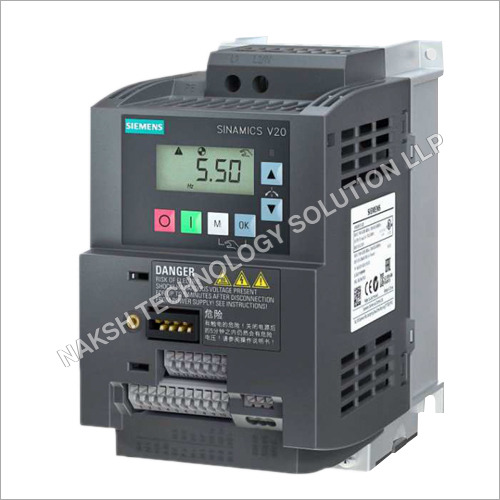

Siemens V20 7.5KW 10.0HP Drive

Siemens V20 7.5KW 10.0HP Drive

Price 30000 INR / Number

Minimum Order Quantity : 1 Number

Humidity % : 95 %

Protection Level : Other, IP20

Rated Voltage : 380480 Volt (V)

Mounting Type : DIN Rail

Get a Price/Quote

Siemens G120 PM240-2 75KW 100HP Drive

Siemens G120 PM240-2 75KW 100HP Drive

Price 200000 INR / Number

Minimum Order Quantity : 1 Number

Humidity % : 95 %

Protection Level : Other, IP20

Rated Voltage : 380480 Volt (V)

Mounting Type : DIN Rail

Get a Price/Quote

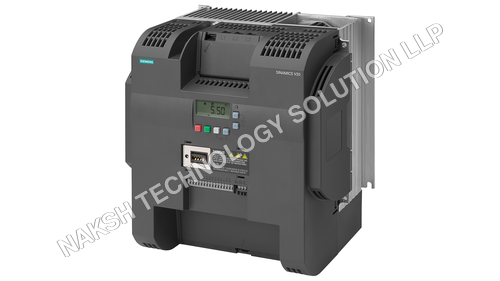

Siemens V20 22.0KW 30.0HP Drive
