SIEMENS LOGO PLC 6ED1052-2HB08-0BA2

About SIEMENS LOGO PLC 6ED1052-2HB08-0BA2

LOGO! 24CEo, logic module, without display, power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DO, SP. 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable, cloud connection, MQTT in all LOGO! 8.4 basic units

Siemens LOGO! 24RCEO (AC) Logic Module

Product Code: 6ED1052-2HB08-0BA2

General Information:

• Type: LOGO! 24RCEO Logic Module (without display)

• Power Supply / I/O: 24 V DC / 24 V AC / relay

• I/O Configuration: 8 DI / 4 DO

• Memory: 400 blocks, modularly expandable

• Ethernet: Integrated, with web server and cloud connection

• Features: Data logging, user-defined web pages, microSD card support

• Software Compatibility: LOGO! Soft Comfort V8.4 or higher (older projects executable)

• MQTT Support: Yes, in all LOGO! 8.4 basic units

Mounting:

• Type: 35 mm DIN rail

• Width: 4 spacing units

Supply Voltage:

• Rated Value: 24 V DC / 24 V AC

• Permissible Range (DC): 20.4 28.8 V DC

• Line Frequency (AC): 47 63 Hz

Time Switching / Clock:

• Number of Clocks: Max. 400, function-specific

• Power Reserve: 480 hours

Digital Inputs:

• Number: 8

Digital Outputs:

• Number: 4 (Relay)

• Short-Circuit Protection: No; external fusing required

• Switching Capacity:

  • Resistive Load: Max. 10 A

  • Inductive Load: Max. 3 A

EMC / Interference:

• Emission Standard: EN 55011, Limit Class B (residential areas)

Standards & Approvals:

• CE Mark: Yes

• UL Approval: Yes

• CSA Approval: No (covered by UL)

• FM Approval: Yes

• IEC 61131 Compliant: Yes

• VDE 0631 Compliant: Yes

• Marine Approval: Yes (in preparation)

Environmental Impact:

• Environmental Product Declaration: Yes

• Global Warming Potential (CO2 eq):

  • Total: 51.5 kg

  • Production: 9.64 kg

  • Operation: 42.1 kg

  • After End-of-Life: -0.364 kg

Ambient Conditions:

• Operating Temp: -20 C to 55 C (no condensation)

• Storage / Transport Temp: -40 C to 70 C

• Altitude: -1000 m to +2000 m (ambient air 1080 hPa 795 hPa)

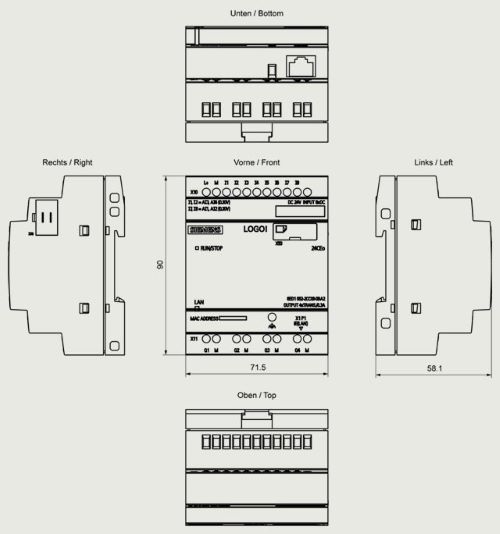

Dimensions:

• Width: 71.5 mm

• Height: 90 mm

• Depth: 58 mm
