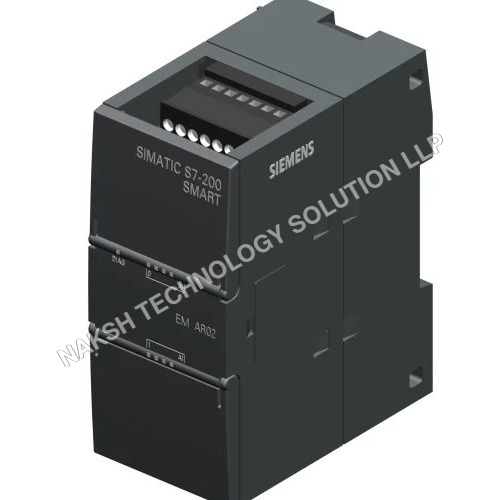

SIEMENS PLC Module 6ES7288-3AT04-0AA0

The SIEMENS 6ES7288-3AT04-0AA0 is an advanced PLC module designed for precise control and monitoring in industrial automation.

Key Specifications:

• Rated Voltage: 24 V DC

• Rated Current: 40 mA

• Power Loss: 1.5 W

• Dimensions (L W H): 45 100 81 mm

• Weight: 125 g

• Operating Temperature: -20C to +60C

• Humidity Tolerance: Up to 95%

• Frequency: 50/60 Hz

• Mounting: DIN rail

• Protection Level: IP20

• Color: Black

Features:

• Compact and lightweight design for easy DIN-rail installation

• Reliable performance in challenging industrial environments

• Energy-efficient operation with minimal power loss

• Robust IP20 protection for safety against dust and contact

• Ideal for diverse automation applications requiring precision and dependability

This PLC module ensures efficient, durable, and reliable operation for modern industrial automation systems.

Data Sheet Siemens 6ES7288-3AT04-0AA0

SIMATIC S7-200 SMART Analog Input Module SM AI04 (4 Thermocouple Inputs)

General Information

• Product type: SM AT04, AI TC 416-bit

• Module type: Analog Input (Thermocouples)

Supply Voltage

• Supply type: DC

• Rated value: 24 V DC

• Permissible range:

  • Lower limit: 20.4 V

  • Upper limit: 28.8 V

• Reverse polarity protection: Yes

Input Current

• Current consumption (typical): 30 mA (24 V DC user power)

• Current consumption (max): 40 mA (at 20.4 V DC, max load)

• From backplane bus (5 V DC):

  • Typical: 70 mA

  • Maximum: 80 mA

Power Loss

• Typical power loss: 1.5 W

Analog Inputs

• Number of analog inputs: 4

Supported Input Types

• Voltage: No

• Current: No

• Thermocouple: Yes

• RTD (Resistance thermometer): No

• Resistance: No

Analog Outputs

• Number of analog outputs: 0

Analog Value Processing

• Resolution (max): 16-bit including sign (with overrange)

• Integration & conversion time: Per channel (standard for S7-200 Smart)

Mechanical Dimensions

• Width: 45 mm

• Height: 100 mm

• Depth: 81 mm

Weight

• Approx. weight: 125 g

Technical Details
