SIEMENS S7-1200 PLC MODULE 6ES7222-1AD30-0XB0

About SIEMENS S7-1200 PLC MODULE 6ES7222-1AD30-0XB0

Data sheet 6ES7222-1AD30-0XB0

SIMATIC S7-1200, Digital output SB 1222, 4 DQ, 5 V DC, 200 kHz

General information

• Product type designation: SB 1222, DQ 4x5 V DC 200 kHz

Input current

• From backplane bus 5 V DC, typ.: 35 mA

Power loss

• Power loss, typ.: 0.5 W

Digital outputs

• Number of digital outputs: 4 (MOSFET, solid-state; current-sinking/current-sourcing)

• Group configuration: in groups of 4

• Short-circuit protection: No

• Switching capacity (resistive load, max.): 0.1 A

• Load resistance range: upper limit 7

Output voltage

• Rated value (DC): 5 V

• Signal 0, max.: 0.2 V

• Signal 1, min.: L+ minus 0.7 V DC

• Signal 1, max.: 6 V

Output current

• Signal 1 rated value: 0.1 A

• Signal 1 permissible range, max.: 0.1 A

Cable length

• Shielded, max.: 50 m

Interrupts / diagnostics / status information

• Diagnostics indication LED: Yes (for status of the outputs)

Standards, approvals, certificates

• CE mark: Yes

• CSA approval: Yes

• UL approval: Yes

• cULus: Yes

• FM approval: Yes

• RCM (formerly C-TICK): Yes

• KC approval: Yes

• Marine approval: Yes

Ambient conditions

• Free fall: Fall height max. 0.3 m; five times in product package

• Ambient temperature during operation: -20 C to 60 C

  • Horizontal installation: -20 C to 60 C

  • Vertical installation: -20 C to 50 C

• Ambient temperature during storage/transportation: -40 C to 70 C

• Air pressure (IEC 60068-2-13): 660 hPa 1,080 hPa

• Relative humidity: Operation at 25 without condensation, max. 95 %

Mechanics / material

• Enclosure material (front): Plastic

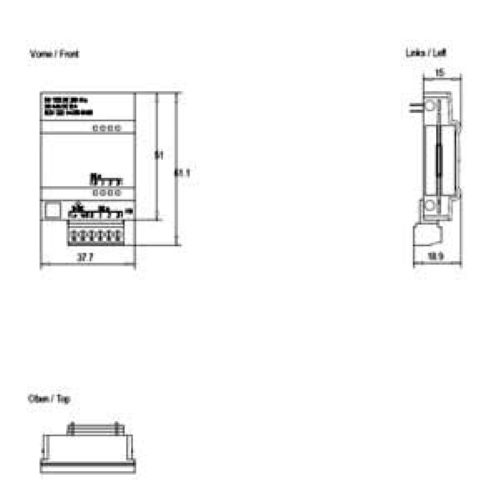

• Dimensions: W 38 mm H 62 mm D 21 mm

• Weight, approx.: 35 g
