 Data Sheet: 6ES7223-3AD30-0XB0

SIMATIC S7-1200 Digital I/O SB 1223, 2 DI / 2 DQ, 5V DC, 200 kHz

General Information

• Product type designation: SB 1223, DI 25 V DC / DQ 25 V DC, 200 kHz

Input Current

• From backplane bus (5 V DC): typ. 35 mA

Power Loss

• Typical power loss: 0.5 W

Digital Inputs

• Number of digital inputs: 2 (current-sourcing)

• Grouping: 2 per group

Input Voltage

• Rated value (DC): 5 V

• Signal 0: (L+ 1.0 V) L+

• Signal 1: 0 V (L+ 2.0 V)

Input Current

• Signal 0 (max): 2.2 mA

• Signal 1 (min): 5.1 mA

• Signal 1 (typ): 15 mA

Input Delay (parameterizable)

• Standard inputs:
  0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10 / 12.8 / 20 s
  0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10 / 12.8 / 20 ms

• Interrupt inputs: Yes (parameterizable)

• Technological functions: Yes (parameterizable)

Cable Length

• Shielded: max. 50 m (twisted pair)

Digital Outputs

• Number of outputs: 2 (MOSFET solid-state, sourcing/sinking)

• Grouping: 2 per group

• Short-circuit protection: No

Switching Capacity

• Max (resistive load): 0.1 A

Load Resistance

• Upper limit: 7

Output Voltage

• Rated value (DC): 5 V

• Signal 0: max. 0.2 V

• Signal 1: min. L+ 0.7 V

• Signal 1 max: 6 V

Output Current

• Rated (signal 1): 0.1 A

• Max permissible: 0.1 A

Cable Length

• Shielded: max. 50 m

Diagnostics / Status

• LED for input status: Yes

• LED for output status: Yes

Standards / Approvals

CE, CSA, UL, cULus, FM, RCM, KC, Marine approval

Ambient Conditions

Free Fall

• Max height: 0.3 m (in package)

Operating Temperature

• Min: 20C

• Max: 60C

• Vertical installation max: 50C

Storage / Transport Temperature

• 40C to +70C

Air Pressure

• 6601080 hPa (storage/transport)

Humidity

• Max: 95% at 25C (no condensation)

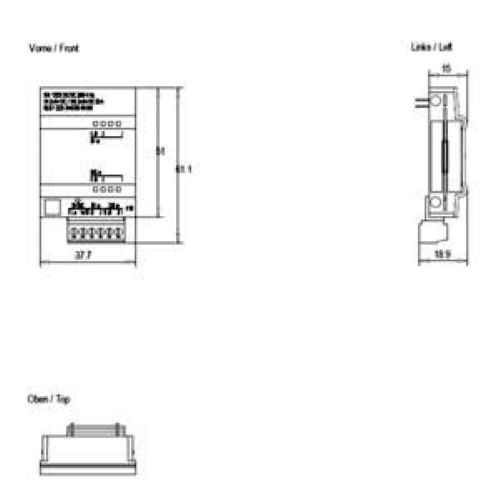

Mechanical Data

• Front enclosure material: Plastic

• Width: 38 mm

• Height: 62 mm

• Depth: 21 mm

• Weight: approx. 35 g
