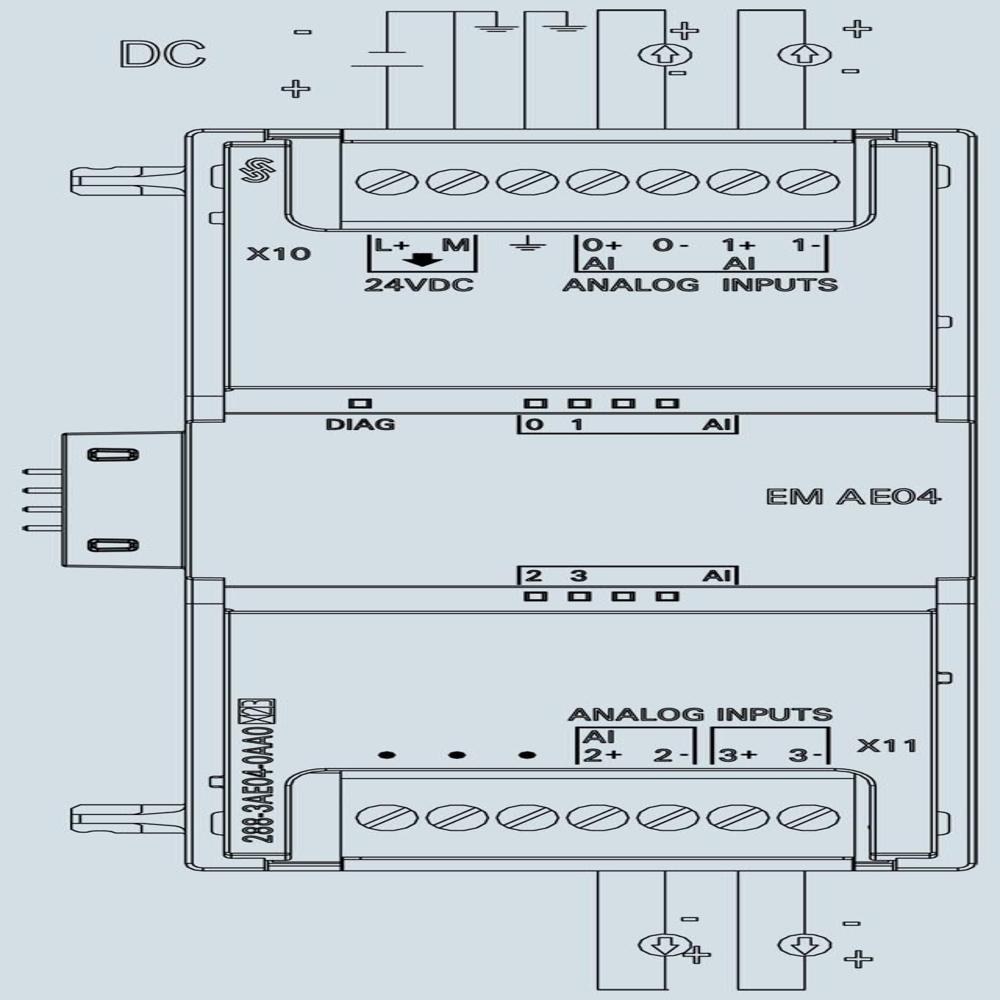

SIEMENS S7-200 SMART ANALOG MODULES-6ES7288-3AE04-0AA0

About SIEMENS S7-200 SMART ANALOG MODULES-6ES7288-3AE04-0AA0

 Data Sheet 6ES7288-3AE04-0AA0

SIMATIC S7-200 SMART Analog Input Module SM AI04 4 AI | 010 V, 05 V, 5 V, 2.5 V, 0/420 mA | 11-bit + sign (12-bit ADC)

General Information

• Product type designation: SM AI04, AI 4x12 bit

• CiR (Configuration in RUN): Not supported

• Reparameterization in RUN: No

Supply Voltage

• Type: DC

• Rated value: 24 V (15% / +20%)

• Permissible range: 20.4 V 28.8 V

Input Current

• Current consumption (typ.): 40 mA

• From backplane bus (5 V DC): 80 mA

Power Loss

• Typical power loss: 1.5 W

Analog Inputs

• Number of analog inputs: 4

Input Ranges

• Voltage: 10 V, 5 V, 2.5 V

• Current: 0 to 20 mA

• Thermocouple: No

• RTD: No

• Resistance: No

Rated Input Values Voltage

• 10 V to +10 V Input resistance: 9 M

• 2.5 V to +2.5 V Input resistance: 9 M

• 5 V to +5 V Input resistance: 9 M

Rated Input Values Current

• 0 to 20 mA Input resistance: 250

Analog Value Generation

• Resolution:

  • Max with overrange: 12 bit

  • Voltage mode: 11 bit + sign

  • Current mode: 11 bit

• Interference suppression frequencies: 10 / 50 / 60 / 400 Hz

Smoothing (Filter)

• Parameterizable: Yes (4 levels)

  • None: 1

  • Low: 4

  • Medium: 16

  • High: 32

Diagnostics / Status

• Diagnostics function: Yes

• Monitoring supply voltage: Yes

• Wire-break: No

• Short-circuit: No

• Status LED for inputs: Yes

Protection

• IP rating: IP20

Standards / Approvals

• CE Mark: Yes

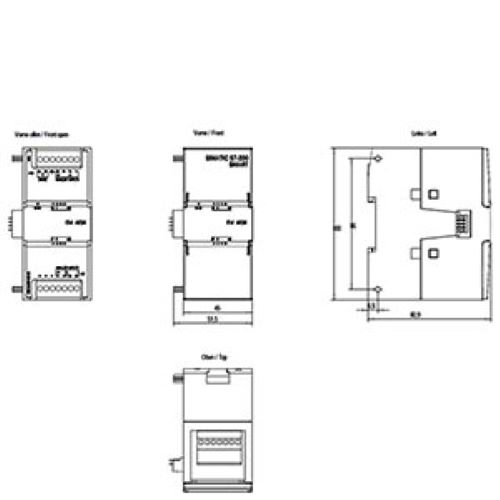

Mechanical Data

• Width: 45 mm

• Height: 100 mm

• Depth: 81 mm

• Weight: approx. 147 g
