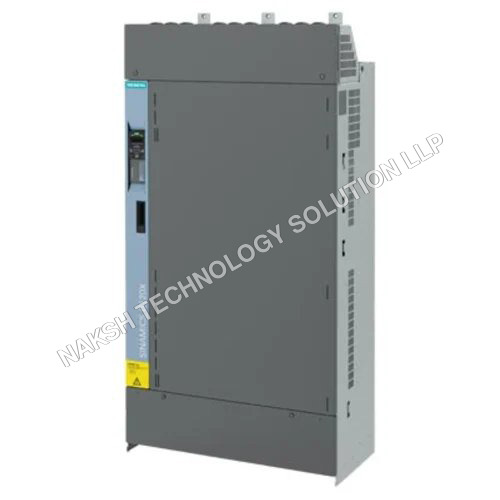

About SIEMENS VFD G120X 6SL3220-2YE44-0AF0

The SIEMENS VFD G120X 6SL3220-2YE44-0AF0 is a versatile Variable Frequency Drive suitable for industrial applications. With a frequency range of 47-63 Hertz and a rated voltage of 380-480 Volt, this VFD provides reliable control over motor speed. It features IP20 protection, ensuring safety and durability in various industrial environments. The digital display allows for easy monitoring and settings adjustment, while the V/F control system offers precise control over motor operations. Backed by a 1-year warranty, this VFD is a reliable choice for industrial automation needs.

SINAMICS G120X

Article No.: 6SL3220-2YE44-0AF0

Rated Data

Input:

• Phases: 3 AC

• Line Voltage: 380 480 V (+10% / -20%)

• Line Frequency: 47 63 Hz

• Rated Current (LO): 172 A / 151 A

• Rated Current (HO): 154 A / 132 A

Output:

• Phases: 3 AC

• Rated Voltage: 400V IEC / 480V NEC

• Rated Power (LO): 90 kW / 125 hp

• Rated Power (HO): 75 kW / 100 hp

• Rated Current (LO): 178 A / 156 A

• Rated Current (HO): 145 A / 124 A

• Rated Current (IN): 183 A

• Max Output Current: 241 A

• Pulse Frequency: 4 kHz

• Output Frequency: Vector Control 0 200 Hz, V/f Control 0 550 Hz

Overload Capability

• Low Overload (LO): 110% base load current IL for 60 s in 300 s cycle

• High Overload (HO): 150% base load current IH for 60 s in 600 s cycle

General Specifications

• Power Factor : 0.90 0.95

• Offset Factor cos : 0.99

• Efficiency : 0.97

• Sound Pressure Level (1m): 72 dB

• Power Loss: 2.61 kW

• Filter Class: RFI suppression filter Category C2

• EMC Category: C2 (with accessories)

• Safety Function: "Safe Torque Off" without SIRIUS device

Communication

• PROFINET, EtherNet/IP

Inputs / Outputs

• Standard Digital Inputs: 6 (Switching 01: 11 V, 10: 5 V, Max Inrush: 15 mA)

• Fail-safe Digital Inputs: 1

• Digital Outputs: 2 relay (DC 30 V, 5 A), 0 transistor

• Analog / Digital Inputs: 2 differential, 10-bit (01: 4 V, 10: 1.6 V)

• Analog Outputs: 1 non-isolated

• PTC / KTY Interface: 1 motor temperature sensor input (PTC, KTY, Thermo-Click, 5 C)

Closed-loop Control Techniques

• V/f linear / square-law / parameterizable: Yes

• V/f with flux current control (FCC): Yes

• V/f ECO linear / square-law: Yes

• Sensorless Vector Control: Yes

• Vector Control with Sensor: No

• Encoderless Torque Control: No

• Torque Control with Encoder: No

Ambient Conditions

• Standard Board Coating: Class 3C2 (IEC 60721-3-3:2002)

• Cooling: Air cooling using integrated fan

• Cooling Air Requirement: 0.153 m/s

• Installation Altitude: 1,000 m

• Operation Temp: -20 45 C

• Transport Temp: -40 70 C

• Storage Temp: -25 55 C

• Max Relative Humidity: 95% (no condensation/icing)

Connections

• Signal Cable: 0.15 1.50 mm

• Line Side: M10 screw, 35 2120 mm

• Motor End: M10 screw, 35 2120 mm

• DC Link PE: M10 screw

• Max Motor Cable Length: Shielded 150 m

Mechanical Data

• Degree of Protection: IP20 / UL open type

• Frame Size: FSF

• Net Weight: 68 kg

• Dimensions (W H D): 305 709 369 mm
