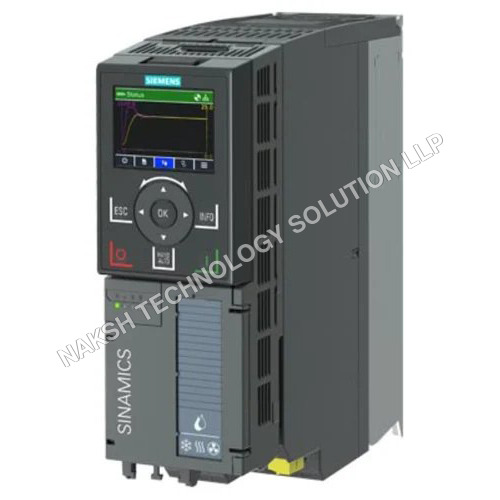

About SIEMENS VFD G120XA 6SL3220-2YD54-0CB0

The SIEMENS VFD G120XA 6SL3220-2YD54-0CB0 is a versatile Variable Frequency Drive used in industrial applications. Its digital display provides clear monitoring of operations while ensuring a smooth frequency of 47-63 Hertz (Hz). With a robust IP20 protection level and a rated voltage of 380-480 Volt (V), this VFD is designed to withstand industrial environments. The powder-coated PVC material in black finish gives it a sleek appearance, making it suitable for various industrial settings. With dimensions of 305 x 999 x 360 millimeters (mm), this VFD offers a space-efficient solution. Additionally, it comes with a 1-year warranty, ensuring reliability and performance.

SINAMICS G120XA

Article No.: 6SL3220-2YD54-0CB0

Rated Data

Input:

• Phases: 3 AC

• Line Voltage: 380 440 V (+10% / -20%)

• Line Frequency: 47 63 Hz

• Rated Current LO: 417 A

Output:

• Phases: 3 AC

• Rated Voltage: 400 V

• Rated Power IEC 400V (LO): 250 kW

• Rated Current 400V (IN): 436 A

• Rated Current 380V (IN): 468 A

• Rated Current LO: 436 A

• Max Output Current: 480 A

• Pulse Frequency: 2 kHz

• Output Frequency (Vector Control): 0 240 Hz

• Output Frequency (V/f Control): 0 550 Hz

Overload Capability

• Low Overload (LO): 110% base load current for 60 s in a 600 s cycle

• Max Output Current: Max. for 60 s in a 600 s cycle

General Technical Specifications

• Power Factor : 0.75 0.93

• Offset Factor cos : 0.99

• Efficiency : 0.98

• Sound Pressure Level (1 m): 74.9 dB

• Power Loss: 4.84 kW

• Filter Class: RFI suppression filter for Category C3

• EMC Category: Category C3

• Safety Function "Safe Torque Off": Without SIRIUS device

Communication

• USS, Modbus RTU, BACnet MS/TP

Inputs / Outputs

• Standard Digital Inputs: 6 (01: 11 V, 10: 5 V, max inrush 15 mA)

• Fail-safe Digital Inputs: 0

• Digital Outputs: 4 relay changeover (DC 30 V, 1 A), 0 transistor

• Analog / Digital Inputs: 2 differential, 12-bit (01: 4 V, 10: 1.6 V)

• Analog Outputs: 2 non-isolated

• Motor Temp Sensor Input: 1 (PTC, KTY, PT1000, Thermo-Click, 5 C)

Closed-loop Control Techniques

• V/f linear / square-law / parameterizable: Yes

• V/f with Flux Current Control (FCC): Yes

• V/f ECO linear / square-law: Yes

• Sensorless Vector Control: Yes

• Vector Control with Sensor: No

• Encoderless Torque Control: Yes

• Torque Control with Encoder: No

Ambient Conditions

• Standard Board Coating: Class 3C2 (IEC 60721-3-3:2002)

• Cooling: Air cooling with integrated fan

• Cooling Air Requirement: 0.210 m/s

• Installation Altitude: 1,000 m

• Operation Temp: -20 60 C

• Transport Temp: -40 70 C

• Storage Temp: -40 70 C

• Max Relative Humidity: 95% (no condensation or icing)

Connections

• Signal Cable: 0.15 1.50 mm (AWG 24 16)

• Line Side: M10 screw, 2185 mm (AWG 1 MCM 2350)

• Motor End: M10 screw, 2185 mm (AWG 1 MCM 2350)

• DC Link / Braking Resistor: PE connection M10 screw

• Max Motor Cable Length: Shielded 150 m

Mechanical Data

• Degree of Protection: IP20 / UL open type

• Frame Size: FSG

• Net Weight: 120 kg

• Dimensions (W H D): 305 999 360 mm

Standards

• Compliance: CE, EAC, RCM, RoHS II

• CE Marking: EMC Directive 2004/108/EC, Low-Voltage Directive 2006/95/EC

Converter Losses (IEC61800-9-2)

• Efficiency Class: IE2

• Loss Comparison (90% / 100%): 39.2%

• Typical Losses: 1,090 4,840 W depending on load

Operator Panel: Basic Operator Panel (BOP-2)

• Display: LCD, monochrome

• Degree of Protection: IP55 / UL type 12

• Net Weight: 0.140 kg

• Dimensions (W H D): 70 106.85 19.60 mm

• Operation Temp: 0 50 C

• Storage / Transport Temp: -40 70 C

• Max Relative Humidity: 95%

• Approvals: CE, cULus, EAC, KCC, RCM
