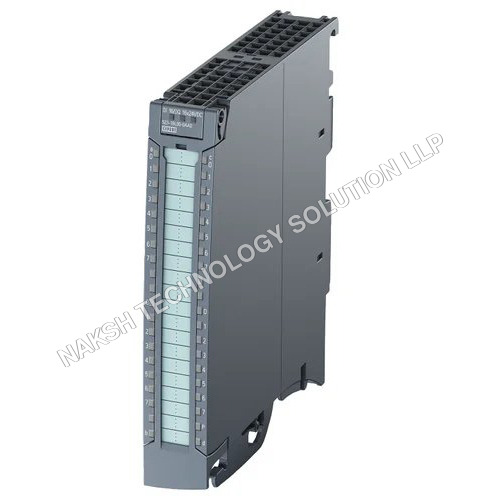

About SIMATIC S7-1500, digital input module, DI 64

SIMATIC S7-1500 Digital Output Module DQ 64The SIMATIC S7-1500, DQ 64 is a high-density digital output module designed for use with SIMATIC S7-1500 systems. It provides 64 digital output channels for controlling binary actuators and devices.Key Features: - 64 digital output channels: Control up to 64 binary actuators or devices- High-speed switching: Fast response times for demanding applications- Compact design: Space-saving installation- Easy configuration: Simple setup and configuration Technical Specifications: - Module type: DQ 64- Number of outputs: 64- Output type: Digital- Compatibility: SIMATIC S7-1500 systems

Siemens SIMATIC S7-1500

Digital Input Module DI 64x24V DC BA

Article No.: 6ES7521-1BP00-0AA0

• 64 channels in groups of 16

• Input delay: Typ. 3.2 ms

• Input type: Type 3 (IEC 61131)

• Sinking / Sourcing input

• Module width: 35 mm

• Cables and terminal blocks: Ordered separately

General Information

• HW functional status: From FS01

• Firmware version: V1.0.0 (FW update possible)

• I&M data: I&M0 to I&M3

• Isochronous mode: No

• Prioritized startup: No

• Engineering:

  • STEP 7 TIA Portal: from V16 with HSP 0319 / V17

  • STEP 7: from V5.5 SP3

  • PROFIBUS: GSD V1.0 / Rev V5.1

  • PROFINET: GSD V2.35

Operating Mode

• DI (digital input)

• Counter: No

• Oversampling: No

• MSI: Yes

Supply Voltage

• Permissible range: 19.2 28.8 V DC

• Recommended external protection: 24 V DC / 4 A miniature circuit breaker (B or C characteristic)

Power

• Backplane bus consumption: 0.6 W

• Power loss: Typ. 4.8 W

Digital Inputs

• Number of inputs: 64 (non-parameterizable)

• Source/sink input: Yes

• IEC 61131 input type: Type 3

• Simultaneously controllable inputs: 64

• Input voltage:

  • Rated: 24 V DC

  • Signal "0": -5 +5 V

  • Signal "1": -11 -30 V or +11 +30 V

• Input current (signal "1"): Typ. 2.7 mA

• Input delay:

  • 01: Min 3 ms, Max 4 ms

  • 10: Min 3 ms, Max 4 ms

• Cable length:

  • Shielded: Max 1000 m

  • Unshielded: Max 600 m

Encoder Support

• Connectable: 2-wire sensor

• Max quiescent current (2-wire sensor): 1.5 mA

Diagnostics & Status

• Diagnostics function: No

• Alarms: None

• Hardware interrupt: No

• LED indicators:

  • RUN: Green

  • ERROR: Red

  • PWR (supply voltage): Green (via SIMATIC TOP connect)

  • Channel status: Green (via SIMATIC TOP connect)

Potential Separation & Isolation

• Between channels: No

• Between groups of channels: Yes, 16 (32 with SIMATIC TOP connect)

• Between channels and backplane bus: Yes

• Isolation tested: 707 V DC

Safety & Standards

• Suitable for safety functions: No

• Eco profile: Siemens EcoTech, Environmental Product Declaration available

• Global Warming Potential (CO2 eq):

  • Total: 18.9 kg

  • Production: 12.1 kg

  • Operation: 7.66 kg

  • End-of-life: -1.02 kg

Ambient Conditions

• Horizontal installation: -30 60C

• Vertical installation: -30 40C

• Max altitude: 5000 m above sea level

Dimensions & Weight

• Width Height Depth: 35 147 129 mm

• Weight: 250 g
