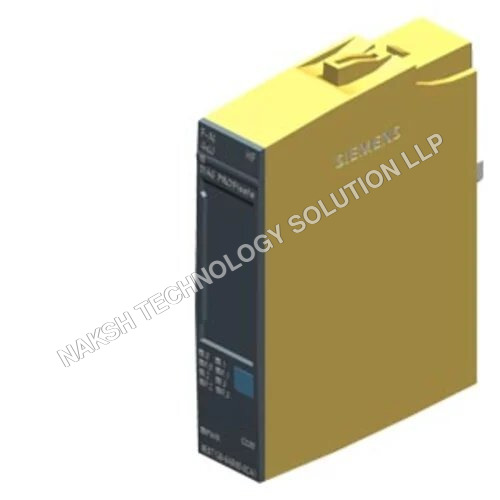

SIEMENS ET 200SP, F-AI 4xU 0..10V HF 6ES7136-6AB00-0CA1

The Siemens ET 200SP F-AI 4xU 0..10V HF (6ES7136-6AB00-0CA1) is a high-performance analog input module designed for advanced automation applications. With a compact dimension of 15 x 73 x 58 mm and a lightweight design of 48 grams, its DIN-rail mounting feature ensures seamless integration into control systems. Operating reliably in temperatures ranging from 0C to 60C and a humidity tolerance of up to 95%, this module is equipped to handle challenging environments. It provides robust protection with an IP20 rating and delivers an input voltage of 24V DC, supported by an isolation voltage of 707V DC. Additionally, it offers a power rating of 70mW, a power loss of 2W, and supports frequencies of 50/60Hz for precise and efficient operation. The modules distinctive yellow color adds visibility, while its suitability for automated operations makes it an essential component for modern industrial systems.

General Information

• Product Type: F-AI 4xU 0..10V HF

• Firmware Update: Yes

• BaseUnits Supported: BU type A0, A1

• Color Code: CC00

• I&M Data: I&M0I&M3

• TIA Portal: V16 or higher (requires HSP 308)

Operating Mode

• Cyclic Measurement: Yes

• Oversampling: No

• MSI: No

• Reparameterization in RUN: No

• Calibration in RUN: No

Supply Voltage

• Rated Voltage: 24 V DC

• Permitted Range: 19.2 28.8 V DC

• Reverse Polarity Protection: Yes

• NEC Class 2 Required: No

Current & Encoder Supply

• Rated Current Consumption: 0.38 A

• Max Consumption: 0.4 A

24 V Encoder Supply

• Available: Yes (min. L+ - 1.5 V)

• Short-Circuit Protection: Yes

• Max Output Current: 300 mA (total for all channels)

Power

• From Backplane Bus: 70 mW

• Power Loss: 2 W (typ.)

Address Area

• Inputs: 14 bytes (13 bytes for S7-300/400F)

• Outputs: 5 bytes (4 bytes for S7-300/400F)

Analog Inputs

• Total Inputs: 4

• Voltage Measurement: 4

• Max Destruction Voltage: 36 V

Input Range

• 010 V: Yes

• Input Resistance: 16 k

Cable Length

• Shielded: Up to 200 m

Analog Value Processing

• Measurement Principle: Sigma-Delta

• Resolution: 16-bit (including sign)

Integration Time

• Parameterizable: Yes

• Options: 20 ms / 16.667 ms

• Interference Suppression: 50 / 60 Hz

Smoothing Levels (parameterizable)

• None: 1x cycle

• Low: 2x / 4x

• Medium: 8x / 16x

• High: 32x / 64x

• Average Value Filter: Yes

Accuracy

• Linearity Error: 0.1%

• Temperature Error: 0.023%/K

• Repeat Accuracy: 0.1%

• Operational Error (full temperature range): 2%

• Basic Error at 25C: 0.1%

Interference Suppression

• Series Mode: 40 dB

• Common Mode Voltage: Max 10 V

• Common Mode Suppression: 70 dB

Diagnostics & LEDs

• Diagnostics: Yes

• Diagnostic Alarm: Yes

• Limit Alarm: No

Monitored

• Supply voltage

• Wire break

LED Indicators

• RUN: Green

• ERROR: Red

• PWR: Green

• Channel Status: Green

• Channel Diagnostics: Red

• Module DIAG: Green/Red

Potential Isolation

• Between Channels: No

• Channels Backplane Bus: Yes

• Channels Electronics Supply: Yes

• Max Potential Difference: 10 Vpp

• Isolation Test Voltage: 707 V DC

Safety Ratings

• Performance Level: PL e

• Category: Cat. 4

• SIL: SIL 3

Probability of Failure

• PFDavg (low demand, SIL 3): < 5.0E-05

• PFH (high demand, SIL 3): < 1.0E-09 /h

Environmental Conditions

• Operating Temperature (Horizontal): 0C to 60C

• Operating Temperature (Vertical): 0C to 50C

Mechanical Data

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

• Weight: ~48 g

Technical Details
